Eaton Toggle Switch Construction Grade 20A Two-Pole Three-Way 120/277V White Industrial

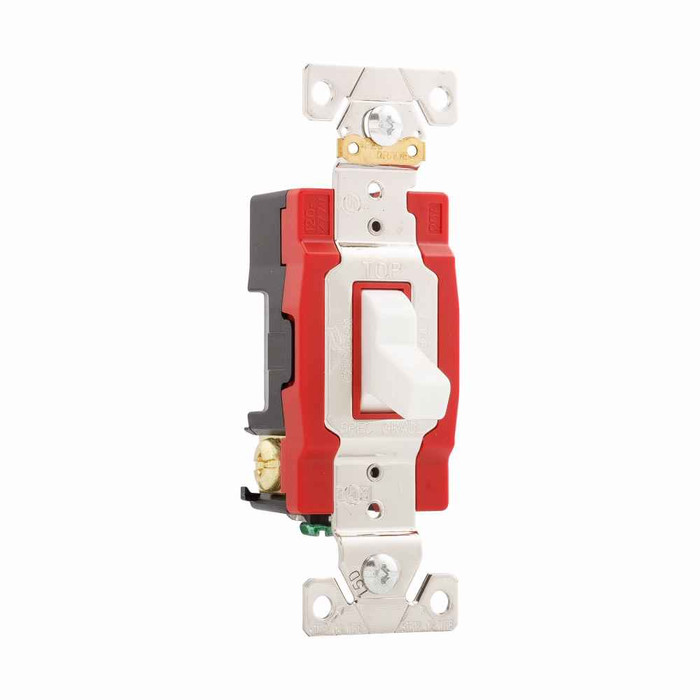

Eaton Construction Grade Toggle Switch

Professional Industrial Electrical Switching Solution

The Eaton Construction Grade Toggle Switch delivers exceptional electrical switching performance for industrial and commercial applications. This 20A two-pole three-way toggle switch provides reliable power control designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Performance

• 20 Ampere Rating - High-capacity current handling for demanding industrial electrical loads and commercial switching applications
• 120/277V Dual Voltage Rating - Versatile voltage compatibility for both residential and commercial electrical systems
• Two-Pole Configuration - Simultaneous switching of two electrical circuits for enhanced control and safety
• Three-Way Operation - Professional switching control from multiple locations for complex electrical installations

Construction & Installation

• Construction Grade Design - Heavy-duty construction engineered for demanding industrial environments and frequent operation
• Polycarbonate Material - Durable thermoplastic construction providing excellent electrical insulation and impact resistance
• Back and Side Wiring - Flexible wiring options accommodating various installation requirements and electrical box configurations
• Screw Terminal Connection - Secure and reliable electrical connections for professional installation standards

Professional Installation Features

• Wall Mounting Design - Standard wall installation for residential, commercial, and industrial electrical systems
• Wire Size Compatibility - Accommodates #14-10 AWG wire sizes for versatile electrical installation requirements
• White Finish - Clean professional appearance suitable for various architectural and industrial environments

Technical Specifications

Amperage Rating: 20A, Voltage Rating: 120/277V, Number of Poles: Two-pole, Switch Type: Three-way toggle, Wire Size: #14-10 AWG, Mounting Method: Wall, Wiring Method: Back and side, Connection Type: Screw terminals, Material: Polycarbonate, Color: White, Application: Industrial, Certifications: cULus Listed, Dimensions: 3.28" H x 1.31" D x 0.88" W, Weight: 0.17 lb

Installation & Usage

1. Turn off electrical power at the circuit breaker and verify power is off using appropriate electrical testing equipment
2. Remove existing switch or prepare new electrical box ensuring proper mounting and wire access
3. Connect line and load conductors to appropriate screw terminals following three-way wiring diagram and local electrical codes
4. Secure switch to electrical box using provided mounting screws ensuring proper alignment and secure installation
5. Install switch plate cover and restore electrical power, testing switch operation from all control locations
6. Verify proper three-way switching operation and electrical continuity using appropriate testing procedures

Professional Applications

Ideal for:

• Industrial Facilities - Manufacturing plants, warehouses, and production facilities requiring heavy-duty electrical switching
• Commercial Buildings - Office buildings, retail spaces, and commercial facilities with multi-location lighting control
• Institutional Applications - Schools, hospitals, and government buildings requiring reliable electrical switching systems
• Construction Projects - New construction and renovation projects requiring durable construction-grade electrical components
• Multi-Location Control - Hallways, stairwells, and large rooms requiring switching control from multiple locations
• High-Traffic Areas - Locations with frequent switch operation requiring heavy-duty construction and reliable performance
• Electrical Panel Integration - Professional electrical systems requiring coordinated switching and power control
• Code Compliance Projects - Electrical installations requiring cULus Listed components for regulatory compliance

Construction Grade Advantage

Eaton's construction grade toggle switches feature enhanced durability and reliability engineered for demanding professional applications. The polycarbonate construction provides superior electrical insulation properties while maintaining impact resistance for industrial environments. The dual voltage rating and flexible wiring options make this switch ideal for diverse electrical installations requiring professional-grade performance and long-term reliability.

Why Choose Eaton Quality?

With over a century of electrical power management innovation, Eaton delivers the quality and reliability that electrical professionals trust worldwide. Our construction grade switches meet rigorous cULus safety standards and provide the dependable performance required for professional electrical installations. From residential projects to industrial facilities, Eaton's commitment to electrical safety and engineering excellence ensures reliable switching solutions that electricians, electrical contractors, and facility managers depend on for critical electrical applications.
