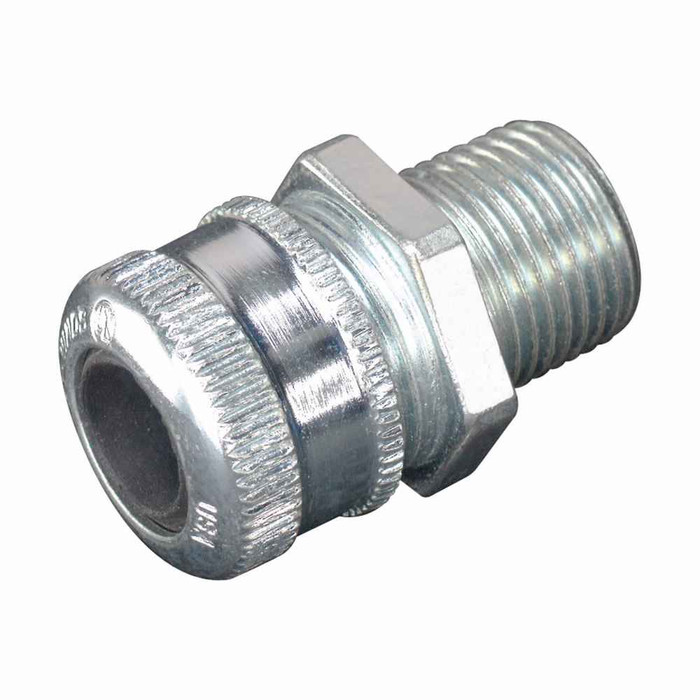

Crouse-Hinds CGB114 Eaton series CGB cable gland, Cable range min/max: 0.125-0.250", Non-armoured and tray cable, Non-armoured, Steel, General purpose, 1/2" NPT

Crouse-Hinds CGB Series Steel Cable Gland 1/2" NPT 0.125-0.250" Cable Range Non-Armoured General Purpose

(No reviews yet) Write a Review

Model: CGB114
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$66.26
$16.26
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Crouse-Hinds CGB Series Steel Cable Gland 1/2" NPT 0.125-0.250" Cable Range Non-Armoured General Purpose

Professional Cable Management & Sealing Solution

The Crouse-Hinds CGB Series Steel Cable Gland delivers reliable cable entry and environmental protection for non-armoured and tray cables in ordinary locations. Engineered with durable steel construction and 1/2" NPT threading, this general purpose cable gland accommodates cable ranges from 0.125" to 0.250" diameter with NEMA 3R rating for dependable performance in diverse electrical installations.

Professional Features & Benefits

  • 0.125-0.250" Cable Range: Versatile sizing accommodates various non-armoured cable diameters for flexible installation options
  • 1/2" NPT Threading: Standard threading ensures secure connection and compatibility with common electrical enclosures
  • Steel Construction: Robust material provides long-lasting durability and mechanical strength in demanding environments
  • NEMA 3R Rating: Weather-resistant protection against rain, sleet, and ice formation for outdoor applications
  • General Purpose Design: Suitable for ordinary/non-hazardous locations with broad application versatility
  • NEC/CEC Compliance: Meets electrical code standards for professional installation confidence
  • Compact Profile: 1.63" length with 0.97" width and height for space-efficient mounting

Technical Specifications

  • Area Classification: Ordinary/Non-Hazardous Locations
  • Cable Range Min Max : 0.125-0.250"
  • Cable Type: Non-armoured
  • Department: Electrical
  • Gland Type: Non-armoured
  • Material: Steel
  • Nema Rating: 3R
  • Product Group: Electrical
  • Product Height: .97 in
  • Product Length Depth: 1.63 in
  • Product Subgroup: Cable Accessories
  • Product Type: Cable Accessories
  • Product Weight: .15 lb
  • Product Width: .97 in
  • Protection Type: General purpose
  • Standards Type: NEC/CEC
  • Thread Size: 1/2"
  • Thread Type: NPT

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Industrial Control Panels and Electrical Enclosures
  • Commercial Building Electrical Systems
  • Outdoor Electrical Equipment Installations
  • Manufacturing Facility Cable Management
  • Utility and Infrastructure Projects
  • Maintenance and Retrofit Applications
  • General Purpose Electrical Installations

Why Choose Crouse-Hinds Quality?

Crouse-Hinds cable glands deliver proven reliability with steel construction, NEMA 3R environmental protection, and NEC/CEC compliance. The lightweight 0.15 lb design combines durability with easy installation, ensuring long-term performance in ordinary location applications where dependable cable entry solutions are essential.

Manufacturer Resources

Product Specs

Area Classification:
Ordinary/Non-Hazardous Locations
Cable Range Min Max :
0.125-0.250"
Cable Type:
Non-armoured
Gland Type:
Non-armoured
Nema Rating:
3R
Product Height:
.97 in
Product Length Depth:
1.63 in
Product Weight:
.15 lb
Product Width:
.97 in
Protection Type:
General purpose
Standards Type:
NEC/CEC
Thread Size:
1/2"
Thread Type:
NPT
Department:
Electrical
Product Group:
Electrical
Product Subgroup:
Cable Accessories
Product Type:
Cable Accessories
Product Material:
Steel
