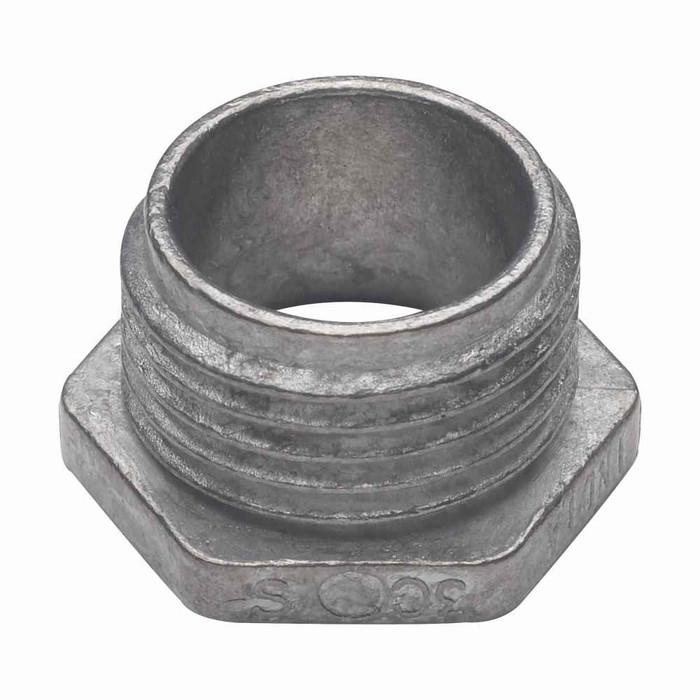

Crouse-Hinds 56D Conduit Bushed Chase Nipple 2-1/2" Rigid/IMC Zinc Die Cast

Crouse-Hinds 56D Conduit Bushed Chase Nipple 2-1/2" Rigid/IMC Zinc Die Cast

Professional Conduit Connection Solution for Rigid and IMC Applications

The Crouse-Hinds 56D conduit bushed chase nipple delivers reliable conduit connection performance for 2-1/2" trade size Rigid/IMC applications. Constructed from durable zinc die cast material, this non-insulated nipple provides secure conduit-to-conduit connections in ordinary/non-hazardous locations while meeting NEC/CEC standards for professional electrical installations.

Professional Features & Benefits

• 2-1/2" Trade Size: Accommodates standard 2-1/2" rigid and IMC conduit for versatile installation compatibility
• Zinc Die Cast Construction: Provides excellent corrosion resistance and mechanical strength for long-lasting performance
• Rigid/IMC Compatibility: Designed specifically for both rigid steel and intermediate metal conduit systems
• Non-Insulated Design: Allows for direct metal-to-metal contact for proper grounding continuity
• NEC/CEC Compliance: Meets National Electrical Code and Canadian Electrical Code requirements for code-compliant installations
• Compact Profile: 3.94" length and 2.75" width provide efficient space utilization in electrical enclosures
• Lightweight Construction: 0.4 lb weight facilitates easy handling and installation

Technical Specifications

• Area Classification: Ordinary/Non-Hazardous Locations
• Conduit Type: Rigid/IMC
• Insulator: Non-insulated
• Product Height: 1.1 in
• Product Length Depth: 3.94 in
• Product Material: Zinc die cast
• Product Weight: .4 lb
• Product Width: 2.75 in
• Standards Type: NEC/CEC
• Trade Size: 2-1/2"

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Building Electrical Systems
• Industrial Facility Conduit Installations
• Institutional Electrical Infrastructure
• Multi-Unit Residential Properties
• Professional Office Buildings
• Retail and Service Establishments
• Educational Facility Electrical Systems

Why Choose Crouse-Hinds Quality?

Crouse-Hinds conduit fittings deliver proven reliability through precision zinc die cast construction and NEC/CEC compliance. The 56D bushed chase nipple provides dependable conduit connections with the durability and performance standards expected from professional-grade electrical components for ordinary location installations.
