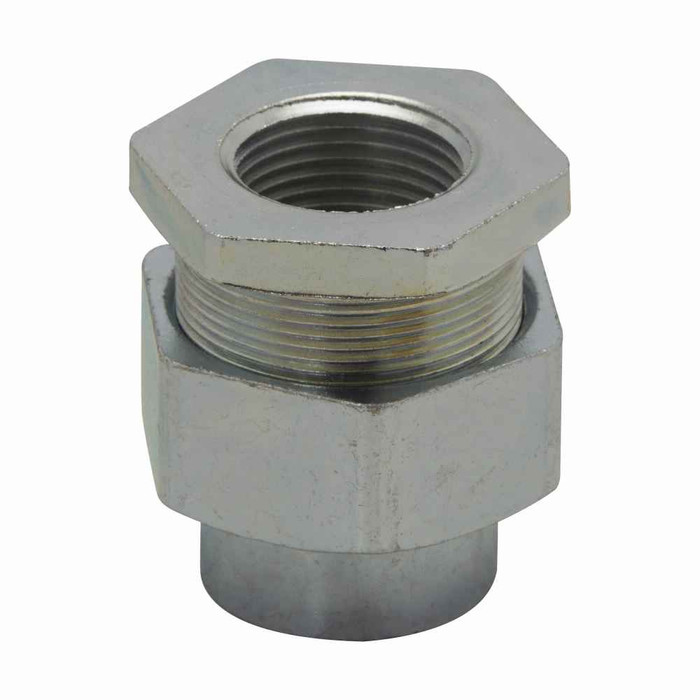

Crouse-Hinds UNF505 Conduit Union 1-1/2" Female Steel Rigid/IMC Hazardous Location

Crouse-Hinds UNF505 Conduit Union 1-1/2" Female Steel Rigid/IMC Hazardous Location

Professional-Grade Conduit Connection for Hazardous Environments

The Crouse-Hinds UNF505 conduit union delivers reliable electrical conduit connections in demanding hazardous location applications. This 1-1/2" female steel union provides secure joining of rigid and IMC conduit systems with robust construction designed for Class I, Division 1 environments. Built to NEC/CEC standards, this union ensures dependable performance in critical electrical installations where safety and durability are paramount.

Professional Features & Benefits

• 1-1/2" Trade Size: Accommodates standard conduit sizing for versatile installation compatibility across electrical systems.
• Steel Construction: Provides exceptional durability and corrosion resistance for long-term reliability in industrial environments.
• Class I, Division 1 Rating: Certified for use in hazardous locations with flammable gases and vapors, ensuring safe operation in critical applications.
• Rigid/IMC Compatibility: Works with both rigid and intermediate metallic conduit for flexible system design options.
• Female Configuration: Enables secure threaded connections with male conduit fittings for proper system integration.
• NEC/CEC Compliance: Meets National Electrical Code and Canadian Electrical Code standards for professional installation confidence.
• Compact Dimensions: 3.06" x 2.75" x 3.06" profile optimizes space utilization while maintaining robust connection strength.

Technical Specifications

• Area Classification: Hazardous/Classified Locations
• Conduit Type: Rigid/IMC
• Department: Electrical
• Gender: Female
• Material: Steel
• Nec Hazardous Rating: Class I, Division 1
• Product Height: 3.06 in
• Product Length Depth: 2.75 in
• Product Weight: 1.7 lb
• Product Width: 3.06 in
• Standards Type: NEC/CEC
• Trade Size: 1-1/2"

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Hazardous Location Electrical Systems
• Industrial Process Facilities
• Chemical Processing Plants
• Oil and Gas Installations
• Manufacturing Environments
• Petrochemical Facilities
• Explosive Atmosphere Locations

Why Choose Crouse-Hinds Quality?

Crouse-Hinds delivers proven reliability in hazardous location electrical components with steel construction engineered for demanding environments. Class I, Division 1 certification and NEC/CEC compliance ensure professional-grade performance you can trust for critical safety applications.
