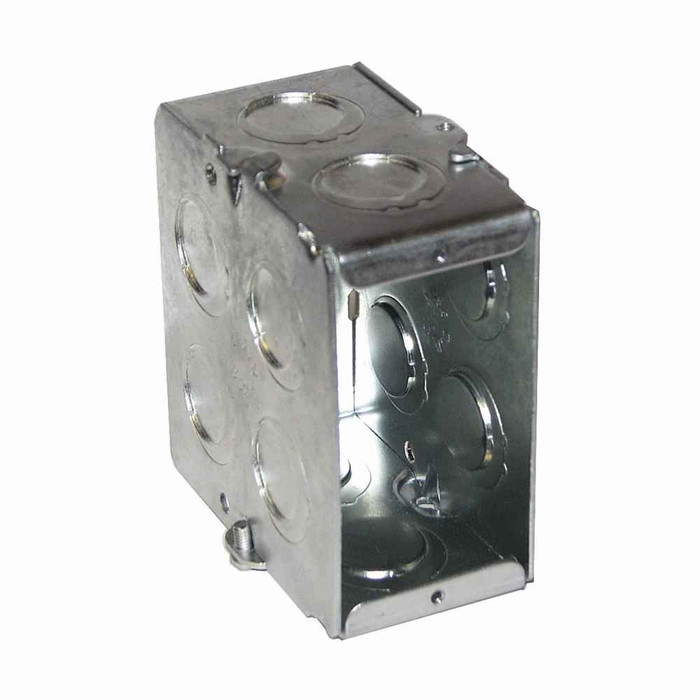

Eaton Crouse-Hinds 1-15/16” Gangable Masonry Boxes, UL-Listed

Crouse-Hinds 1-15/16" Single-Gang Gangable Steel Masonry Box

(No reviews yet) Write a Review

Model: TP675

In Stock (leaves warehouse same day if ordered before 3pm ET)

$6.17
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Crouse-Hinds 1-15/16" Single-Gang Gangable Steel Masonry Box

Professional electrical enclosure for masonry installations

The Crouse-Hinds 1-15/16" Single-Gang Gangable Steel Masonry Box delivers reliable electrical enclosure solutions for ordinary/non-hazardous locations. Constructed from durable steel material with gangable design capability, this UL-listed masonry box provides professional-grade performance for versatile electrical installations with comprehensive knockout configurations.

Professional Features & Benefits

  • 1-15/16" Single-Gang Configuration: Provides standard electrical device mounting with precise dimensional compatibility for professional installations.
  • Gangable Steel Construction: Enables multiple box combinations while maintaining structural integrity and durability in masonry applications.
  • Comprehensive Knockout Pattern: Features (2) 1/2" and (2) 3/4" knockouts on both bottom and end positions for flexible conduit entry options.
  • UL-Listed Certification: Ensures compliance with safety standards and code requirements for professional electrical installations.
  • Steel Material Construction: Delivers long-term durability and mechanical strength for demanding masonry mounting applications.
  • Ordinary Location Rating: Suitable for standard non-hazardous electrical environments with reliable performance characteristics.
  • NEC/CEC Standards Compliance: Meets National Electrical Code and Canadian Electrical Code requirements for professional installations.

Technical Specifications

  • Area Classification: Ordinary/Non-Hazardous Locations
  • Bottom Knockouts: (2) 1/2 in, (2) 3/4 in
  • End Knockouts: (2) 1/2 in, (2) 3/4 in
  • Number Of Gangs: Single-gang
  • Product Details: Gangable
  • Product Material: Steel
  • Standards Type: NEC/CEC

Professional Applications

  • Residential Electrical Systems
  • Commercial Building Installations
  • Multi-Unit Properties
  • Professional Offices
  • Retail Establishments
  • Light Industrial Facilities
  • Educational Institutions

Why Choose Crouse-Hinds Quality?

Crouse-Hinds delivers proven reliability through UL-listed certification and NEC/CEC standards compliance. The steel construction and gangable design provide professional-grade durability for long-term masonry installation performance in ordinary electrical environments.

Manufacturer Resources

Product Specs

Area Classification:
Ordinary/Non-Hazardous Locations
Bottom Knockouts:
(2) 1/2 in, (2) 3/4 in
End Knockouts:
(2) 1/2 in, (2) 3/4 in
Number Of Gangs:
Single-gang
Product Details:
Gangable
Product Material:
Steel
Standards Type:
NEC/CEC
Department:
Electrical
Product Type:
Electrical Box
Product Subgroup:
Electrical

Crouse-Hinds TP675 – Frequently Asked Questions

1) What depths does the Crouse-Hinds 1-15/16 in. gangable masonry box come in?
Two depths, both 3-3/4 inches high: the TP671 at 2-1/2 inches deep and the TP675 at 3-1/2 inches deep. Pick the deeper TP675 when you are pulling multiple conduits through or stuffing a device with a lot of wire behind it; the TP671 suits shallower block or brick coursing.
2) What size conduit can I bring into this Crouse-Hinds masonry box?
The box takes 1/2 inch and 3/4 inch conduit. Knockouts are (2) 1/2 in. and (2) 3/4 in. on the bottom, plus the same pattern on the end, so you can feed straight up through the block cell or run in horizontally from the side. On both the TP671 and TP675 those are concentric knockouts, so one opening serves either trade size.
3) Is this masonry box approved for use in a hazardous or classified area?
No. These Crouse-Hinds masonry boxes are rated for ordinary, non-hazardous locations only. For a classified area you need a cast explosionproof enclosure, not a gangable sheet steel masonry box.
4) What is the difference between the Crouse-Hinds TP671 masonry box and a RACO 232MS 4 in. square box?
They solve different rough-in problems. The Crouse-Hinds TP671 is a single-gang gangable steel masonry box, 2-1/2 in. deep by 3-3/4 in. high, sized to set into block and brick coursing and to be ganged side by side when a second device is added later. The RACO 232MS is a 4 in. square welded box in the STAB-iT Series, 2-1/8 in. deep and rated 600V; a welded box is a one-piece enclosure that does not gang, and it takes a plaster ring to land a device. Choose the TP671 when the device count in a masonry opening may grow, and the 4 in. square when you want a single deeper junction point behind a ring.
5) Does this box meet code for a commercial job in the US and Canada?
It is built to NEC and CEC standards and is UL listed, so it covers inspections on both sides of the border for ordinary-location work in offices, retail, schools, and multi-unit buildings.
6) Which Crouse-Hinds masonry box do I order for a standard 8 in. block wall?
For standard block, the 3-1/2 in. deep TP675 gives you the wire room most crews want when conduit turns into the box; the 2-1/2 in. deep TP671 is the choice where the box has to clear a cell obstruction or you are working thinner masonry. Both are 3-3/4 inches high and both are single-gang until you gang them.
7) Which box gives me more wiring room, the Crouse-Hinds TP675 or the RACO 232MS?
The Crouse-Hinds TP675 is the deeper of the two masonry box options at 3-1/2 in. deep by 3-3/4 in. high, against 2-1/2 in. deep on the TP671, and it carries the same 1/2 in. and 3/4 in. concentric knockouts. The RACO 232MS is a 4 in. square welded box at 2-1/8 in. deep, so it is shallower but wider across the face. If the wall cavity allows the depth and the conduit is landing in masonry, the TP675 is the one to pull; if the box is going behind a ring in a stud or furred wall where depth is tight, the 4 in. square profile fits the shallower cavity.
8) Is this box steel or plastic, and will it hold up being set in block and grout?
Steel. That is what makes it suitable for masonry work, where the box gets set into block or brick and takes mortar and grout pressure during the pour without deforming the device opening.
