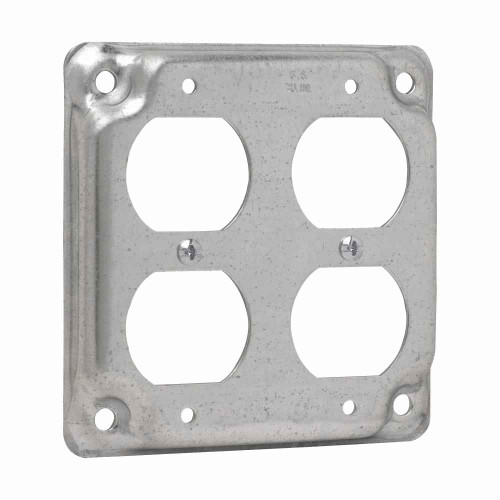

Crouse-Hinds 4" Square Surface Cover with 5.5 Cubic Inch Capacity - Steel Construction
Model: CRS-TP-SSC
Crouse-Hinds 4" Square Surface Cover with 5.5 Cubic Inch CapacityProfessional electrical enclosure solution for ordinary locationsThe Crouse-Hinds 4" Square Surface Cover delivers reliable protection...
Crouse-Hinds
Starting at
$2.07
B-Line TP589 Eaton Crouse-Hinds series Square Cover, 4-11/16", Natural, Raised surface, two device, Steel, 1" raised, 11.7 cubic inch capacity
Model: BLN-TP589
Eaton Crouse-Hinds series Square Cover, 4-11/16", Natural, Raised surface, two device, Steel, 1" raised, 11.7 cubic inch capacity
B-LINE
$58.27
$10.12
B-Line TP543 Eaton Crouse-Hinds series Square Cover, 4-11/16", Natural, Raised surface, two device, Steel, 2" raised , 24.5 cubic inch capacity
Model: BLN-TP543
Eaton Crouse-Hinds series Square Cover, 4-11/16", Natural, Raised surface, two device, Steel, 2" raised , 24.5 cubic inch capacity
B-LINE
$59.46
$11.29
B-Line TP586 Eaton Crouse-Hinds series Square Cover, 4-11/16", Natural, Raised surface, two device, Steel, 3/4" raised, 8.8 cubic inch capacity
Model: BLN-TP586
Eaton Crouse-Hinds series Square Cover, 4-11/16", Natural, Raised surface, two device, Steel, 3/4" raised, 8.8 cubic inch capacity
B-LINE
$54.61
$5.38
B-Line TP587 Eaton Crouse-Hinds series Square Cover, 4-11/16", Natural, Raised surface, two device, Steel, 5/8" raised, 8.0 cubic inch capacity
Model: BLN-TP587
Eaton Crouse-Hinds series Square Cover, 4-11/16", Natural, Raised surface, two device, Steel, 5/8" raised, 8.0 cubic inch capacity
B-LINE
$55.65
$6.60

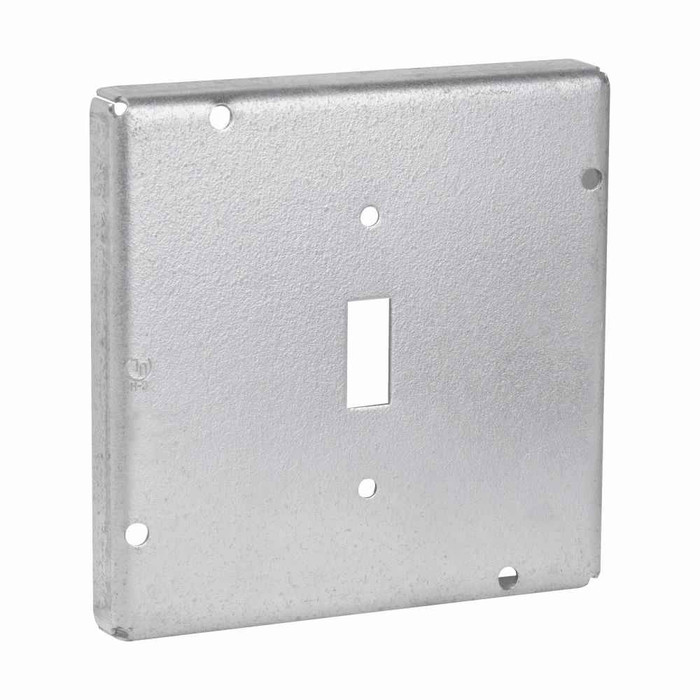

Crouse-Hinds 4-11/16" Steel Square Surface Cover with Raised Surface for Toggle Switch
Professional electrical enclosure solution for ordinary locations
The Crouse-Hinds 4-11/16" Steel Square Surface Cover delivers reliable protection and professional installation for toggle switch applications. Engineered with durable steel construction and raised surface configuration, this cover provides 9.0 cubic inch capacity for versatile wiring applications in ordinary/non-hazardous locations while meeting NEC/CEC standards.
Professional Features & Benefits
- 4-11/16" Steel Construction: Provides robust durability and long-lasting protection against environmental factors and mechanical stress.
- Raised Surface Configuration: Offers enhanced clearance and accessibility for proper wiring connections and switch operation.
- 9.0 Cubic Inch Capacity: Delivers ample space for wire management and connections in toggle switch installations.
- Toggle Switch Compatibility: Specifically designed for single toggle switch applications with precise cutout and mounting provisions.
- NEC/CEC Standards Compliance: Meets national and Canadian electrical code requirements for safe and code-compliant installations.
- Ordinary Location Rating: Suitable for standard commercial and residential applications without special hazardous location requirements.
Technical Specifications
- Area Classification: Ordinary/Non-Hazardous Locations
- Box Depth: 4-11/16"
- Box Size: 4-11/16"
- Configuration: Raised surface
- Product Material: Steel
- Standards Type: NEC/CEC
Professional Applications
- Commercial Building Electrical Systems
- Residential Switch Installation Projects
- Industrial Facility Wiring Applications
- Institutional Building Electrical Work
- Retrofit and Upgrade Projects
- Professional Electrical Contractor Applications
Why Choose Crouse-Hinds Quality?
Crouse-Hinds delivers proven reliability through steel construction and NEC/CEC standards compliance, ensuring professional-grade performance for demanding electrical applications. The raised surface configuration and precise 4-11/16" dimensions provide consistent installation results and long-term durability.
Manufacturer Resources
Product Specs
- Area Classification:
- Ordinary/Non-Hazardous Locations
- Box Depth:
- 4-11/16"
- Box Size:
- 4-11/16"
- Configuration:
- Raised surface
- Product Material:
- Steel
- Standards Type:
- NEC/CEC
- Product Depth:
- 0.25 in
- Department:
- Electrical
- Product Type:
- Raised Device Cover
- Product Subgroup:
- Box Covers
- Product Group:
- Boxes & Enclosures
Crouse-Hinds TP728 – Frequently Asked Questions
1) Will a Crouse-Hinds TP720 surface cover fit a 4-11/16 inch square box?
Yes. The TP720 raised surface cover is sized for 4-11/16 inch square boxes, which is the larger of the two common commercial square box sizes (the other being 4 inch). It will not sit on a 4 inch square box, and it is not a flat cover: the raised configuration adds 0.25 inch of depth and 9.0 cubic inches of usable volume above the box, which counts toward your box fill.
2) Which Crouse-Hinds TP cover do I order for a duplex receptacle instead of a switch?
For one duplex receptacle, order the TP722. The toggle switch version is the TP720. Both are the same 4-11/16 inch raised steel cover; only the device cutout differs, so the box and mounting are identical and you are choosing purely on what device goes in the opening.
3) Can I get a 4-11/16 inch raised cover for two devices on one box?
Yes, two-device versions exist in this Crouse-Hinds raised cover line: TP726 for two toggle switches, TP728 for two duplex receptacles, and TP741 for two GFI receptacles. There is also a mixed configuration, the TP740, which takes one GFI receptacle and one toggle in the same cover. That mixed cover is the one to reach for on a kitchen or bath wall where a switch and a protected receptacle share a box.
4) I have a GFCI receptacle going into a 4-11/16 square box. Which Crouse-Hinds cover has the right opening?
The TP738 is the single ground fault interrupter version. A standard duplex cover (TP722) will not work for a GFCI, because a GFCI needs the larger rectangular decorator opening rather than the two round duplex holes. If the GFCI shares the box with a switch, use the TP740 instead.
5) I need a round hole cover for a single receptacle or power outlet. What diameters does Crouse-Hinds offer in the 4-11/16 raised cover?
Six round-hole sizes cover the range. For single receptacles: 1-13/32 inch (1.406) is the TP724 and 1-21/32 inch (1.656) is the TP730. For power outlets: 1-47/64 inch (1.734) is the TP736, 2-9/64 inch (2.141) is the TP732, and 2-15/32 inch (2.469) is the TP734. Measure the mounting bushing diameter on the device you are installing and match it exactly, because a round opening has no adjustment in it.
6) Does the raised cover add to my box fill calculation?
It does, and in your favor. The Crouse-Hinds 4-11/16 inch raised surface cover carries 9.0 cubic inches of its own volume, which adds to the box volume when you total conductor fill. That is the reason to use a raised cover rather than a flat one on a crowded box: it buys you working room for the device and the conductors without changing the box.
7) Are these Crouse-Hinds surface covers steel or plastic, and do they meet code?
Steel construction, and built to NEC/CEC requirements. That matters for two reasons on a commercial job: a steel cover carries the equipment ground path with the metal box and raceway, and inspectors on institutional and multifamily work generally expect metallic covers on metallic boxes. Plastic covers do not bond.
8) Can I standardize on one Crouse-Hinds cover across a whole building?
You can standardize on the box, not on one cover. Every version in this TP7xx raised line, from the single toggle TP720 through the two GFI TP741, mounts on the same 4-11/16 inch square steel box with the same 0.25 inch raised profile, so one box type carries switches, duplex receptacles, GFCIs and round-hole power outlets throughout the facility. Stock the box in quantity and buy covers per device type as openings come up.
9) How much does a raised surface cover stick out past the box?
About a quarter inch. The Crouse-Hinds 4-11/16 inch raised cover has a stated product depth of 0.25 in, so the device face sits that much proud of the box rim. Worth knowing when the box is set behind finished surface material or when the cover has to clear a piece of trim or conduit run alongside it.
