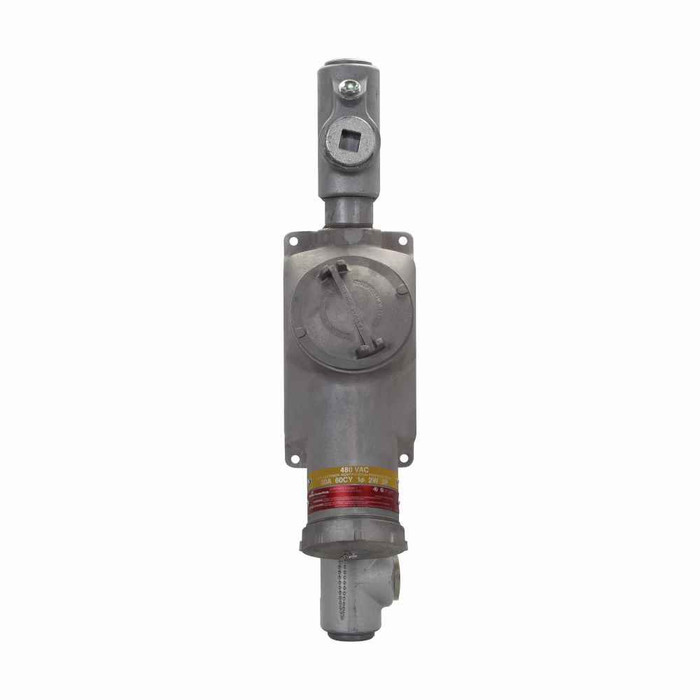

Crouse-Hinds BHR Series Explosionproof Interlocked Receptacles with Switch - 30A/60A/100A, 480V, Class I Division 1, Copper-Free Aluminum

Crouse-Hinds BHR Series Explosionproof Interlocked Receptacles with Switch

Professional Hazardous Location Power Distribution Solutions

The Crouse-Hinds BHR Series delivers reliable explosionproof power distribution for hazardous classified locations. Engineered with copper-free aluminum construction and factory sealed design, these interlocked receptacles with switch provide safe power connections in Class I, Division 1 environments. Available in 30A, 60A, and 100A configurations at 480 Vac, the BHR Series meets stringent NEMA 3 requirements for demanding industrial applications.

Professional Features & Benefits

• Multiple Amperage Options (30A/60A/100A): Flexible capacity selection accommodates diverse load requirements across industrial facilities.
• 480 Vac Rating: Industrial voltage compatibility ensures reliable power distribution for heavy-duty equipment and machinery.
• Class I, Division 1 Certification: Explosionproof design provides safe operation in the most hazardous classified locations with flammable gases and vapors.
• Copper-Free Aluminum Construction: Corrosion-resistant material delivers long-term durability in harsh industrial environments.
• Factory Sealed Design: Pre-sealed construction ensures reliable environmental protection and reduces installation time.
• Interlocked Switch Operation: Integrated safety switching prevents unsafe connection/disconnection under load conditions.
• NEMA 3 Rating: Weather-resistant enclosure protection suitable for outdoor and indoor industrial applications.

Technical Specifications

• Area Classification: Hazardous/Classified Locations
• Back Box Style: Through feed
• Contact Material: Brass
• Enclosure Type: With switch
• Grounding Style: Style 2
• Nec Hazardous Rating: Class I, Division 1
• Nema Rating: 3
• Product Material: Copper-free aluminum
• Receptacle Style: Threaded cap
• Special Features: Factory sealed
• Standards Type: NEC/CEC
• Voltage Rating: 480 Vac

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Petrochemical Processing Facilities
• Oil and Gas Operations
• Chemical Manufacturing Plants
• Paint and Coating Operations
• Pharmaceutical Manufacturing
• Grain Handling and Storage
• Aircraft Hangars and Fuel Systems

Why Choose Crouse-Hinds Quality?

Crouse-Hinds explosionproof receptacles deliver proven reliability in the most demanding hazardous environments. With factory sealed construction, NEC/CEC compliance, and copper-free aluminum durability, the BHR Series provides the professional-grade safety and performance required for critical industrial power distribution applications.
