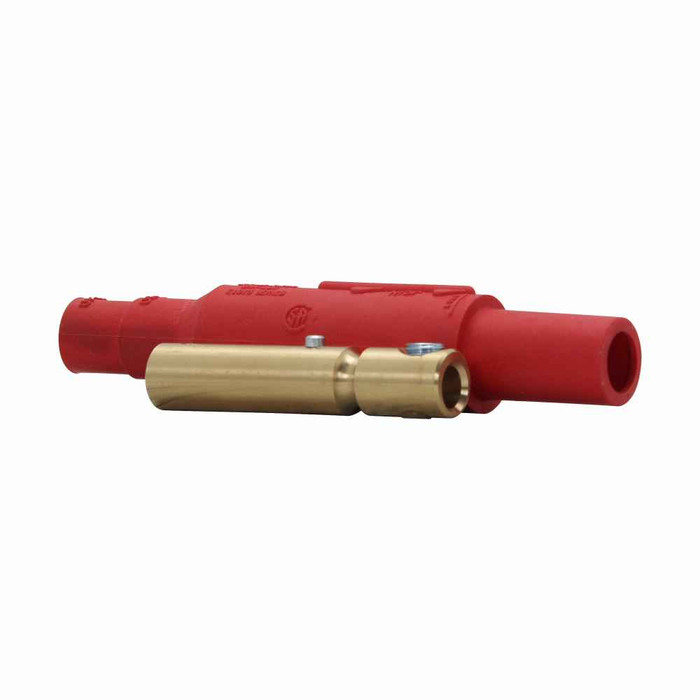

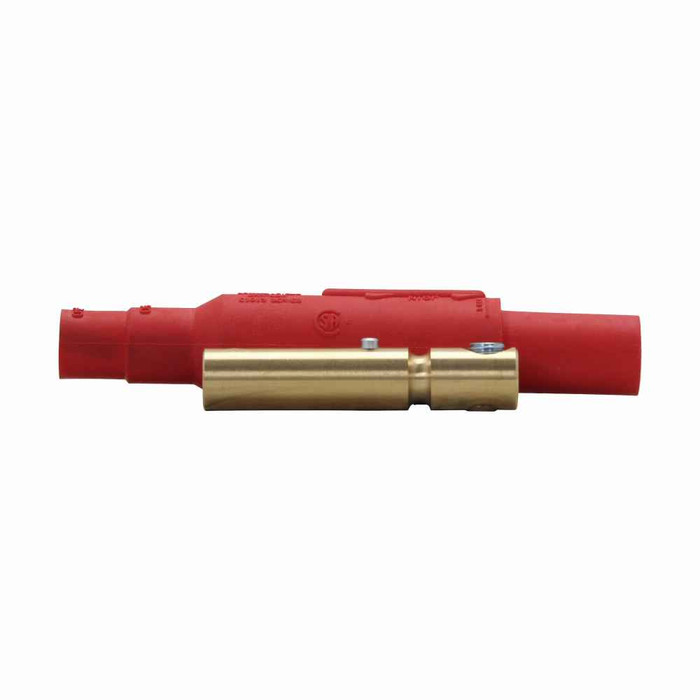

Crouse-Hinds Cam-Lok J Series E1015 Female Plugs 150A 600V Set Screw Connection System

Crouse-Hinds Cam-Lok J Series E1015 Female Plugs 150A 600V Set Screw Connection System

Professional electrical connection solution for demanding applications

The Crouse-Hinds Cam-Lok J Series E1015 Female Plugs deliver reliable 150A continuous power connection capability with 600 Vac/dc voltage rating. Engineered with thermoplastic elastomer (TPE) construction and brass contact material, these female plugs provide secure set screw connections for #8-#4 AWG cable sizes in ordinary/non-hazardous locations with NEMA 3R rating protection.

Professional Features & Benefits

• 150A Continuous Rating: Handles high-amperage applications with reliable current-carrying capacity for demanding electrical systems.
• 600 Vac/dc Voltage Rating: Supports both AC and DC applications across a wide voltage range for versatile power distribution needs.
• Set Screw Connection: Provides secure, maintenance-friendly termination method that ensures consistent electrical contact and easy field installation.
• Brass Contact Material: Delivers excellent conductivity and corrosion resistance for long-term electrical performance and reliability.
• NEMA 3R Rating: Offers weather-resistant protection suitable for outdoor installations and harsh environmental conditions.
• TPE Construction: Thermoplastic elastomer material provides durability, flexibility, and chemical resistance for extended service life.
• NEC/CEC Compliance: Meets National Electrical Code and Canadian Electrical Code standards for safe, code-compliant installations.

Technical Specifications

• Amperage Rating: Up to 150A Continuous
• Area Classification: Ordinary/Non-Hazardous Locations
• Cable Size: #8-#4 AWG
• Connection Type: Set screw
• Contact Material: Brass
• Gender: Female
• Nema Rating: 3R
• Product Details: Non-vulcanized
• Product Material: Thermoplastic elastomer (TPE)
• Standards Type: NEC/CEC
• Voltage Rating: 600 Vac/dc

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Power Distribution Systems
• Commercial Electrical Installations
• Temporary Power Applications
• Generator Connection Systems
• Entertainment and Event Power
• Construction Site Power Distribution
• Marine and Dock Electrical Systems

Why Choose Crouse-Hinds Quality?

Crouse-Hinds Cam-Lok connectors represent proven electrical connection technology with NEMA 3R weather protection and NEC/CEC compliance. The brass contact construction and TPE material engineering ensure reliable performance in demanding applications, while the non-vulcanized design provides flexibility for field installation and maintenance requirements.
