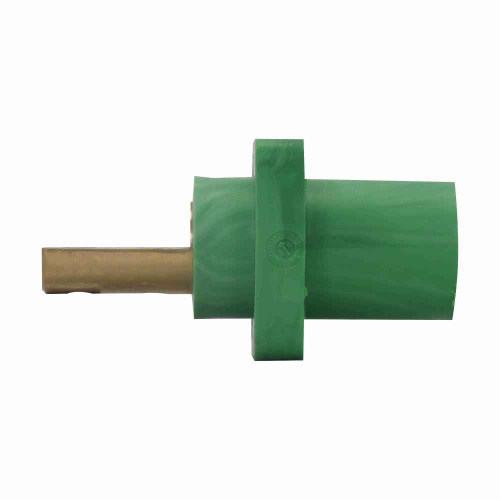

Crouse-Hinds Cam-Lok J Series E1016 Insulated Receptacle Female 400A 600V NEMA 3R

Crouse-Hinds Cam-Lok J Series E1016 Insulated Receptacle Female 400A 600V NEMA 3R

Professional Power Connection Solution for Industrial Applications

The Crouse-Hinds Cam-Lok J Series E1016 Insulated Receptacle delivers reliable female connection capability rated for up to 400A continuous service at 600 Vac/dc. Constructed with thermoplastic elastomer (TPE) material and featuring NEMA 3R rating, this receptacle provides dependable performance in ordinary/non-hazardous locations with weather-resistant protection.

Professional Features & Benefits

• 400A Continuous Rating: Handles high-amperage applications with reliable current-carrying capacity for demanding industrial power distribution needs.
• 600 Vac/dc Voltage Rating: Supports both AC and DC applications across a wide voltage range for versatile electrical system compatibility.
• NEMA 3R Enclosure: Weather-resistant design protects against rain, sleet, and ice formation for reliable outdoor and indoor installation.
• TPE Construction: Thermoplastic elastomer material provides excellent durability, flexibility, and resistance to environmental conditions.
• 45° Angle Design: Angled configuration facilitates easier cable routing and connection access in tight installation spaces.
• Double Set Screw Connection: Secure mechanical connection method ensures reliable electrical contact and prevents accidental disconnection.
• NEC/CEC Compliance: Meets National Electrical Code and Canadian Electrical Code standards for safe installation and operation.

Technical Specifications

• Amperage Rating: Up to 400A Continuous
• Area Classification: Ordinary/Non-Hazardous Locations
• Connection Type: Double set screw
• Gender: Female
• Nema Rating: 3R
• Product Material: Thermoplastic elastomer (TPE)
• Product Shape: 45° angle
• Product Weight: 1 lb
• Receptacle Threaded Stud Size: 1-1/8"
• Standards Type: NEC/CEC
• Voltage Rating: 600 Vac/dc

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Power Distribution Systems
• Manufacturing Facility Connections
• Temporary Power Applications
• Generator Connection Points
• Heavy Equipment Power Feeds
• Construction Site Power Distribution
• Entertainment and Event Power Systems

Why Choose Crouse-Hinds Quality?

Crouse-Hinds delivers proven reliability through NEC/CEC compliant design and NEMA 3R weather-resistant construction. The lightweight 1 lb design combined with durable TPE material ensures long-lasting performance in demanding industrial environments while maintaining ease of installation and service access.
