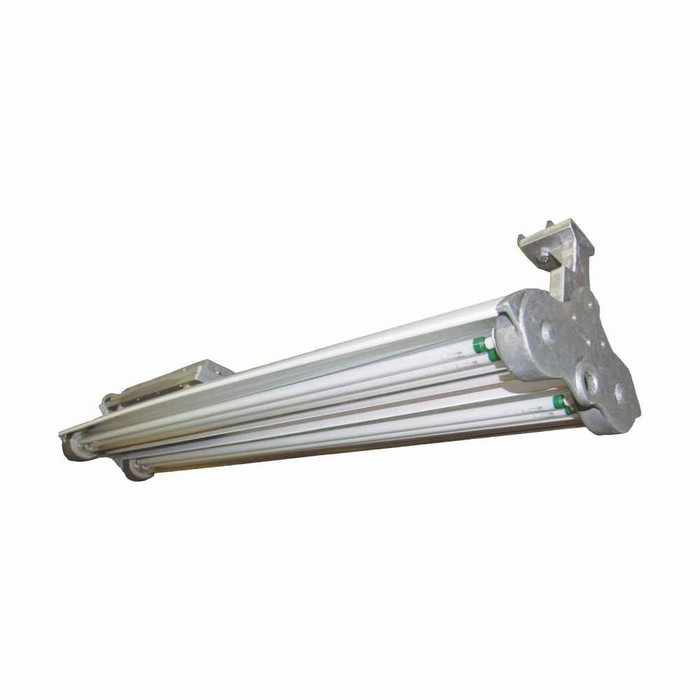

Crouse-Hinds ZonePro Hazardous Location Fluorescent Light Fixture 2-ft 4-Lamp Class I Division 1

Crouse-Hinds ZonePro Hazardous Location Fluorescent Light Fixture 2-ft 4-Lamp Class I Division 1

Professional hazardous location lighting for classified environments

The Crouse-Hinds ZonePro fluorescent light fixture delivers reliable illumination in hazardous locations with Class I Division 1 rating and IP66 ingress protection. Constructed from copper-free aluminum with surface/ceiling mounting capability, this 4-lamp fixture accommodates 2-ft fluorescent lamps and operates on 120-277 Vac at 50/60 Hz frequency. The fixture includes ZP1093MTK mounting brackets and features three NPT outlets with two plugged for versatile installation options.

Professional Features & Benefits

• Class I Division 1 Rating: Certified for use in hazardous locations with flammable gases and vapors, ensuring safe operation in classified environments.
• IP66 Ingress Protection: Provides complete dust protection and high-pressure water jet resistance for reliable performance in harsh industrial conditions.
• Copper-Free Aluminum Construction: Delivers corrosion resistance and durability while maintaining lightweight design for easier installation and long-term reliability.
• 120-277 Vac Operation: Compatible with standard commercial and industrial voltage systems, providing installation flexibility across various applications.
• 4-Lamp Configuration: Maximizes light output from 2-ft fluorescent lamps for comprehensive area illumination in hazardous environments.
• NEMA 3R Rating: Offers protection against rain, sleet, and ice formation for reliable outdoor and wet location performance.
• Included Mounting Brackets: ZP1093MTK brackets provide secure surface or ceiling installation with professional-grade hardware.

Technical Specifications

• Area Classification: Hazardous/Classified Locations
• Entry Size: 1/2"
• Entry Type: (3) NPT outlets, two plugged
• Frequency Rating: 50/60 Hz
• Ingress Protection Ip Ratings: IP66
• Lamp Length: 2 ft
• Lamp Type: Fluorescent
• Mounting Method: Surface/ceiling
• Nec Hazardous Rating: Class I, Division 1
• Nema Rating: 3R
• Number Of Lamps: 4-lamp
• Product Height: 8.5 in
• Product Length Depth: 27.5 in
• Product Material: Copper-free aluminum
• Product Weight: 52 lb
• Product Width: 11.3 in
• Special Features: ZP1093MTK brackets included
• Standards Type: NEC/CEC
• Voltage Rating: 120-277 Vac

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Chemical Processing Facilities
• Petroleum Refineries
• Paint Spray Booths
• Pharmaceutical Manufacturing
• Offshore Drilling Platforms
• Hazardous Material Storage Areas
• Industrial Solvent Operations

Why Choose Crouse-Hinds Quality?

Crouse-Hinds delivers proven reliability in hazardous location lighting with NEC/CEC compliance and robust copper-free aluminum construction. The IP66 and NEMA 3R ratings ensure dependable performance in the most demanding classified environments, backed by professional-grade engineering and comprehensive safety certifications.
