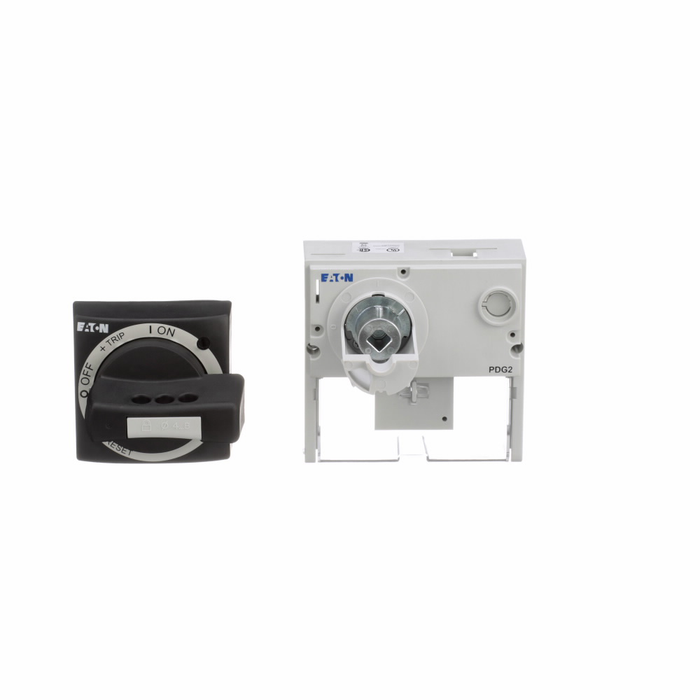

Eaton Power Defense PD2 Global Circuit Breaker Handle Mechanism

Eaton Power Defense PD2 Global Circuit Breaker Handle Mechanism

(No reviews yet) Write a Review

Model: PDG1XHMDS

In Stock (leaves warehouse same day if ordered before 3pm ET)

$101.51
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Power Defense PD2 Global Circuit Breaker Handle Mechanism

The Eaton Power Defense PD2 Global Circuit Breaker Handle Mechanism is a standard lockable handle and mechanism engineered for Eaton's Power Defense series of molded case circuit breakers. Built for Frame 2 (Frame size J-K) applications, this handle mechanism is rated up to 600V max and is UL 489 certified, making it suitable for demanding commercial and industrial power distribution systems. Compact and precise, it measures 75 mm wide, 76 mm deep, and 84 mm high, and is identified by Model Code PDG2XHMDS. As part of a RoHS-compliant design, it delivers dependable, code-compliant operation for professionals who require safe, reliable breaker control and lockout capability.

Key Features

  • Compact Dimensions: Measures 75 mm (width) x 76 mm (length/depth) x 84 mm (height) for a precise, secure fit on compatible breaker frames.
  • Application: Standard lockable handle and mechanism designed for safe breaker operation and lockout/tagout functionality.
  • Compatibility: Purpose-built for Eaton Power Defense PD2 Global molded case circuit breakers, Frame 2, Frame size J-K.
  • Voltage Rating: Rated up to 600V max, supporting demanding power distribution and switchgear applications.
  • Model Code: Identified as PDG2XHMDS for accurate cross-reference and replacement.
  • Series: Part of the Eaton Power Defense series of circuit breaker components and accessories.
  • RoHS Compliant: Manufactured to meet RoHS restricted-substance compliance standards.
  • Warranty Coverage: Backed by Eaton Selling Policy 25-000, covering one (1) year from installation or eighteen (18) months from shipment, whichever occurs first.

Certifications & Compliance

  • UL 489 Certified
  • RoHS Compliant

Technical Specifications

  • Department: Electrical
  • Used With: Power Defense
  • Circuit Breaker Type: PD2 Global
  • Frame: 2
  • Frame Size: Frame J-K
  • Voltage - Max: 600 V
  • Product Width: 75 mm
  • Product Length/Depth: 76 mm
  • Product Height: 84 mm

Typical Applications

  • Power Defense Molded Case Circuit Breaker Lockout/Tagout Procedures
  • Frame 2 Circuit Breaker Handle Replacement and Maintenance
  • Commercial and Industrial Electrical Panelboards
  • Power Distribution Equipment and Switchgear
  • Motor Control Center Installations
  • New Construction and Retrofit Electrical Projects

Why Eaton?

Eaton's Power Defense PD2 Global handle mechanism is engineered for durability and safe, reliable breaker operation, backed by UL 489 certification and RoHS compliance for restricted-substance standards. As part of the trusted Power Defense series, this standard lockable handle and mechanism helps electrical professionals maintain code-compliant, dependable performance across commercial and industrial power distribution systems. Choose Eaton for consistent quality and long-term reliability in critical circuit breaker applications.

Manufacturer Resources

Product Specs

Department:
Electrical
Application:
Standard lockable handle and mechanism
Product Type:
Breaker Handle Operator
Series:
Power Defense
Voltage Rating:
600V
Listing:
UL 489
Standards:
RoHS Compliant
Product Group:
Circuit Protection
Product Subgroup:
Circuit Breakers

Eaton PDG1XHMDS – Frequently Asked Questions

1) Which Eaton breaker frames does the Power Defense handle mechanism fit?
There are two frame options for the Power Defense external handle mechanism. Order PDG2XHMDS for Frame 2 breakers (frame size J-K), and PDG1XHMDS for the Frame 1 option. The mechanism is purpose-built for Eaton Power Defense molded case breakers, so match the frame of the breaker already in the panel before ordering.
2) Is the Eaton PDG2XHMDS handle mechanism rated for 480V and 600V systems?
It carries a 600V maximum rating, which covers 480V and 600V commercial and industrial distribution, and it is UL 489 listed.
3) How much space do I need in the enclosure for the PD2 Global handle mechanism?
Plan for 75 mm width, 76 mm depth, and 84 mm height on the Frame 2 (PDG2XHMDS) mechanism. Check the door and gutter clearance against those numbers before cutting the enclosure.
4) Does this handle mechanism come with the circuit breaker, or is it a separate accessory?
It is a separate accessory. The handle mechanism is a Power Defense series component ordered on its own for breaker handle replacement, retrofit, or new panel builds. The breaker itself, and any door coupling or extension shaft your installation requires, are ordered separately.
5) Does the Eaton Power Defense handle mechanism meet RoHS requirements for our spec?
RoHS compliant, and UL 489 listed. Those are the two compliance points published for the Power Defense handle mechanism, which is usually what a spec section on a panelboard or switchgear submittal asks for.
How fast can I get the Eaton PDG1XHMDS delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Eaton PDG1XHMDS come with a warranty?
Absolutely. The Eaton PDG1XHMDS is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Eaton PDG1XHMDS?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Eaton PDG1XHMDS from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
!
