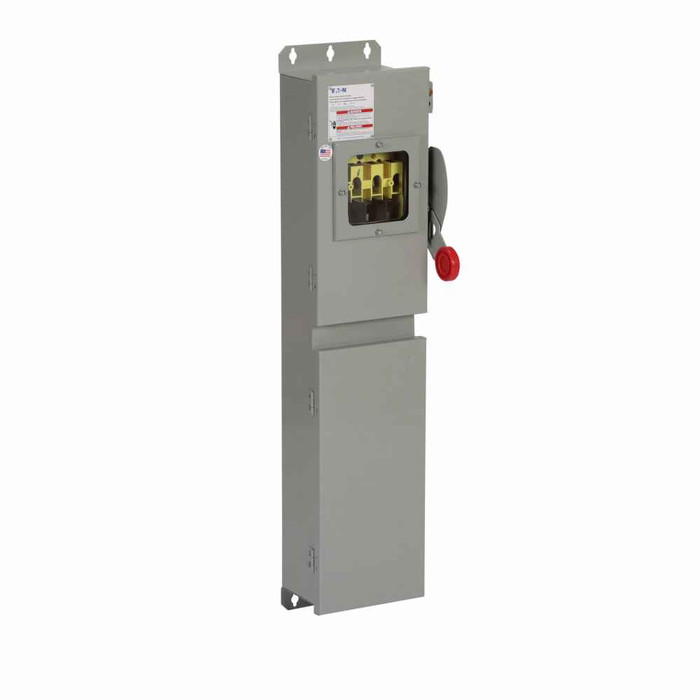

Eaton Double door single-throw fused safety switch, Voltage indicator line side, 200 A, NEMA 12/3R, Class H, Fusible without neutral, Three-pole, Three-wire, 600 V, Max Hp: 50, 50/ 125, 150 hp (1/3PH @480, 600 V), #6-300 kcmil
Manufacturer Resources
Product Specs
- Amperage Rating:
- 200A
- Certifications:
- UL Listed
- Enclosure:
- NEMA 12, NEMA 3R
- Enclosure Material:
- Painted galvanized steel
- Fuse Class Provision:
- Class H
- Fuse Configuration:
- Fusible without neutral
- Hp Rating Max:
- 50, 50/ 125, 150 hp (1/3PH @480, 600 V)
- Nema Rating:
- NEMA 12
- Number Of Poles:
- Three-pole
- Number Of Wires:
- 3
- Product Category:
- Dust tight
- Product Height:
- 11.62 in
- Product Length Depth:
- 49.9 in
- Product Weight:
- 85 lb
- Product Width:
- 17.18 in
- Special Features:
- V indicator line side, w/ window
- Type:
- Heavy duty double door safety switch
- Voltage Rating:
- 600 V
- Wire Size:
- #6 AWG-300 kcmil
