Eaton Continuous LED Pilot Light Lamp Module, E22 Series

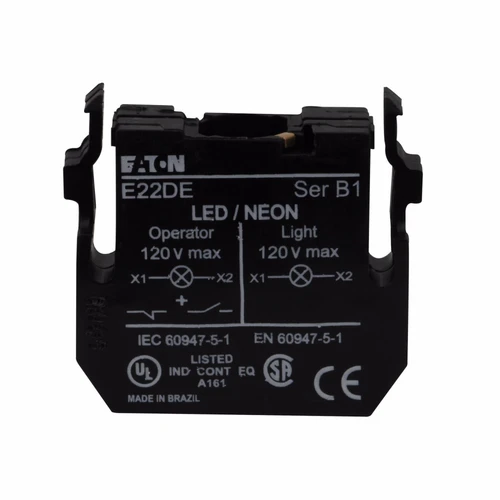

The Eaton Continuous LED Pilot Light Lamp Module is a 22.5 mm pushbutton accessory built for the E22 pilot device platform, delivering steady, continuous LED illumination for clear panel-status indication. Rated 120 Vac/Vdc and certified to UL 508, this LED lamp unit is engineered to provide dependable operator-interface performance in industrial control panels and machine-control enclosures. Designed as a light-unit accessory compatible with both E34 and E22 series units, it gives panel builders and maintenance electricians a consistent, code-recognized way to signal machine status, alarms, and process conditions on 22.5 mm pushbutton and pilot-device assemblies. Available in a range of lens colors to suit your indication scheme.

Key Features

  • Trade Size: 22.5 mm mounting size, matching standard pushbutton and pilot-device panel cutouts for direct fit-up.
  • Light Unit Type: Continuous illumination for steady, uninterrupted status signaling rather than flashing indication.
  • Type: Pushbutton accessory and LED lamp module engineered for use within pilot-device and pushbutton assemblies.
  • Voltage Rating: 120 Vac/Vdc light-unit voltage, matched to common control-circuit supply levels for straightforward integration.
  • Series Compatibility: Configured for the E22 series platform, with compatibility referenced for E34 and E22 units, including the 10250T configuration.
  • Special Features: LED-based light source for long service life and consistent brightness compared to legacy incandescent lamp units.

Certifications & Compliance

  • UL 508 Certified
  • CE Marked

Technical Specifications

  • Product Type: Pilot Light
  • Warranty: 1 year
  • Series: E22
  • Special features: LED

Typical Applications

  • Industrial Control Panels and Enclosures
  • Machine Status and Alarm Indication
  • Operator Interface Stations
  • Panelboard and Switchgear Signaling
  • Pushbutton and Pilot Device Assemblies
  • Renovation and New Panel-Build Construction

Why Eaton?

Eaton pilot devices in the E22 series are built to UL 508 requirements and CE marked for use in global installations, giving panel builders a trusted, code-recognized option for operator signaling. The continuous LED light unit is designed for consistent illumination and long service life, backed by Eaton's 1-year warranty, making it a reliable choice for professional industrial control and electrical work.

Variant Specifications

ColorSKU
Blue Lens, 48 Vac/dcE22LED048WN
White/Yellow, 120 Vac/dcE22LED120WN

Manufacturer Resources

Product Specs

Light unit type:
Continuous
Department:
Electrical
Compliances:
CE Marked
Special features:
LED
Standards:
CE Marked
Product Group:
Motor Control & Automation
Product Type:
Pilot Light
Product Subgroup:
Push Buttons & Pilot Devices

Eaton E22LED048WN – Frequently Asked Questions

1) What voltage do the Eaton E22 LED light modules run on, and do I have to match my control circuit?
Voltage is fixed per part, so you pick the module to match your control circuit. The E22LED120WN is a 120 Vac/Vdc white/yellow unit, and the E22LED048WN is a 48 Vac/Vdc blue lens unit. There is no universal-voltage version here, so order by the control voltage feeding the station.
2) Will the Eaton E22 LED lamp module fit my existing 22.5 mm panel cutout?
Yes. The E22 LED light unit is built for the 22.5 mm mounting size used by standard pushbutton and pilot-device panel cutouts, so it drops into an existing 22.5 mm hole with no re-drilling.
3) Can I use this Eaton LED light unit on E34 or 10250T devices, or only E22?
Compatibility is referenced for both E34 and E22 units, including the 10250T configuration. It is a light-unit accessory, so it goes into the operator/contact block assembly rather than functioning as a standalone indicator.
4) Does the Eaton E22 pilot light module meet UL and CE requirements for an industrial control panel?
The E22 LED lamp module is certified to UL 508 and CE marked, which covers the usual documentation requirement for industrial control panel and machine-control builds in both domestic and export work.
5) Is this Eaton part a complete pilot light or just the lamp?
Just the lamp. The E22 LED unit is a light-unit accessory that installs into a pilot-device or pushbutton assembly, so you also need the 22.5 mm operator, lens/legend plate and mounting hardware for the station. If you want a finished device instead of a module, the Leviton 1201-PLG is a self-contained illuminated pilot light toggle switch rated 15A 120V.
6) Is this a steady indicator or a flashing one?
Continuous. The E22 LED light unit gives steady, uninterrupted illumination for status signaling, not a flashing or strobing output. If your panel spec calls for a blinking alarm indication, this module will not produce it on its own.
7) What lens colors can I get for this Eaton LED module?
Two lamp modules are offered: a blue lens at 48 Vac/Vdc and a white/yellow at 120 Vac/Vdc. Color and voltage are tied together on these part numbers, so an indication scheme using both colors means using both voltages, or a different lens arrangement in the device assembly.
8) What are the exact Eaton part numbers to order?
Two: E22LED048WN for the blue lens 48 Vac/Vdc unit and E22LED120WN for the white/yellow 120 Vac/Vdc unit. Both are E22 series continuous LED light modules.
9) I need a green indicator light. Is there an alternative if the Eaton E22 module doesn't come in green?
The Eaton E22 LED modules are offered in blue and white/yellow only. For a green indication, the ABB Uniblok green pilot light indicator with a refractive lens is a green option we carry. If you need green indication on a wall device rather than a panel, the Leviton 1201-PLG is an illuminated pilot light toggle switch, 15A 120V, single-pole, industrial grade, in green.
