Eaton Pushbutton Switch, 30.5 mm, Corrosion-Resistant, NEMA 3
The Eaton Pushbutton Switch is a 30.5 mm, corrosion-resistant operator from Eaton's E34 series, built for demanding industrial control panels and machine interfaces. Housed for NEMA 3 duty, this operator is also suitable for NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, and NEMA 13 environments, giving clear operator control in panels where reliable switching matters. Available in a range of actuation and illumination configurations, it adapts to a wide variety of control-circuit requirements.
Key Features
- Compact 30.5 mm Footprint: sized for standard 30.5 mm panel cutouts, measuring 2 in wide by 2.4 in deep by 3.4 in high for straightforward panel integration.
- Corrosion-Resistant Construction: the 30.5 mm, Corrosion Resistant operator type is engineered to withstand harsh washdown and industrial atmospheres without premature degradation.
- Precise, Repeatable Actuation: defined operator positions deliver precise, repeatable switching action for dependable control.
- NEMA 3 Rated Enclosure Duty: suitable for NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, and NEMA 13 rated applications, supporting both indoor and select outdoor use.
- E34 Series Design: part of Eaton's established E34 pushbutton and selector switch platform for industrial control stations.
Certifications & Compliance
- UL Listed
- CE Marked
- NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 Rated
Technical Specifications
- Series: E34
- Department: Electrical
- Warranty: 1 year
- Operator Size: 30.5 mm
- Operator Type: Corrosion Resistant
- Product Width: 2 in
- Product Length/Depth: 2.4 in
- Product Height: 3.4 in
Typical Applications
- Industrial Control Panels and Machine Interfaces
- Manufacturing and Process Equipment Controls
- Washdown and Corrosive Environment Installations
- Wet-Location and Outdoor Rated Enclosures
- OEM Panel Building and Machine Retrofits
Why Eaton?
Eaton's E34 series pushbuttons combine a corrosion-resistant 30.5 mm operator design with UL Listed and CE Marked construction, backed by a 1-year warranty. For professionals specifying control-panel hardware that must perform reliably across a wide range of NEMA-rated environments, this Eaton pushbutton delivers dependable, code-compliant switching performance.
Variant Specifications
| Illumination | Actuator | Model | SKU |
|---|---|---|---|
| Non-Illuminated | Knob | Standard | E34VEBK1 |
| Illuminated | Standard | E34VFB120-P | E34VFB120 |
| Illuminated | Standard | E34VFBK1-P | E34VFBK1 |
| Non-Illuminated | Lever | Standard | E34VFBL1 |
| Illuminated | Standard | E34VHB120-P | E34VHB120 |
| Illuminated | Standard | E34VHBK1-P | E34VHBK1 |
Manufacturer Resources
Product Specs
- Department:
- Electrical
- Series:
- E34
- Throw type:
- 60 °
- Warranty:
- 1 year
- Performance Rating:
- NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
- Product Group:
- Motor Control & Automation
- Product Type:
- Pushbutton Operator
- Product Subgroup:
- Push Buttons & Pilot Devices
Eaton E34VFBK1 – Frequently Asked Questions
1) Will the Eaton E34 pushbutton operator fit a standard 30.5 mm panel cutout?
Yes. The E34 operator is a 30.5 mm unit, so it drops into the standard 30.5 mm hole used across most industrial control panels and stations. Overall it measures 2 in wide by 2.4 in deep by 3.4 in high, so check you have that much clearance behind the panel face before you drill.
2) Can I use an Eaton E34 30.5 mm operator in a washdown or outdoor enclosure?
Yes. The E34 corrosion-resistant operator carries NEMA 3, 3R, 4, 4X, 12 and 13 ratings, which covers washdown, wet locations and corrosive industrial atmospheres as well as dust-tight indoor panels. The rating only holds if the enclosure itself is rated to match and the operator is gasketed properly at the cutout.
3) Which Eaton E34 model do I order for a 120V illuminated pushbutton?
Two of the illuminated E34 operators are the 120V units: E34VFB120 and E34VHB120. The other illuminated versions are E34VFBK1 and E34VHBK1. If your control circuit is 120 VAC, order one of the 120 models so the lamp matches the circuit you are wiring into.
4) Do I need to order contact blocks separately for the Eaton E34?
The E34 is sold as a pushbutton operator, which is the front-of-panel actuating half of the device. The switching contacts are a separate item on Eaton's 30.5 mm platform, so specify the contact block arrangement (normally open, normally closed, or a combination) your control circuit needs when you place the order.
5) What actuator styles does the Eaton E34 30.5 mm operator come in?

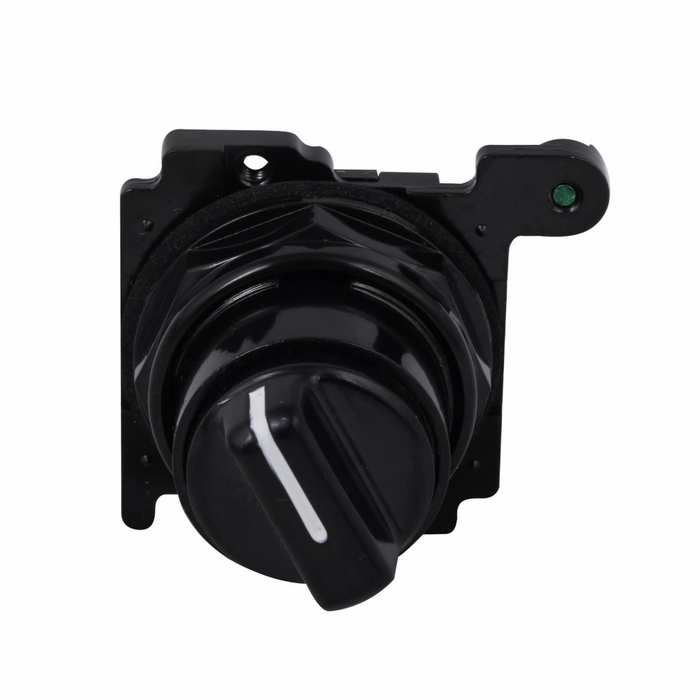

Three choices. Knob, for a selector you turn and leave in position. Lever, which gives more grip when an operator is wearing gloves. And the standard round pushbutton actuator, which is what the illuminated versions use. Knob is model E34VEBK1 and lever is E34VFBL1, both non-illuminated.
6) What does the 60 degree throw on the E34 selector mean for panel layout?
The E34 operator has a 60 degree throw, meaning the knob or lever swings 60 degrees between positions. That is a short, positive sweep, so you can space these on tight centers in a control station without the handle fouling the next device, and an operator can feel the detent without looking.
7) Is the Eaton E34 pushbutton UL Listed and CE marked for a spec job?
Yes on both. The E34 30.5 mm operator is UL Listed and CE Marked, which is usually what a facility or OEM panel spec asks for on operator devices, alongside the NEMA 3 through 13 environmental ratings.
