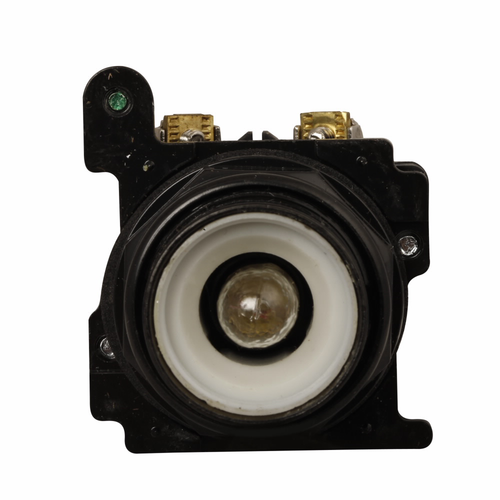

Eaton E34 Pushbutton, 30.5 mm Corrosion-Resistant Watertight/Oiltight, Without Lens

Eaton E34 Pushbutton, 30.5 mm Corrosion-Resistant Watertight/Oiltight, Without Lens

(No reviews yet) Write a Review

Model: E34FB24

In Stock (leaves warehouse same day if ordered before 3pm ET)

$239.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton E34 Pushbutton, 30.5 mm Corrosion-Resistant Watertight/Oiltight, Without Lens

The Eaton E34 Pushbutton is a 30.5 mm, corrosion-resistant, watertight/oiltight control device engineered for demanding industrial environments. Supplied without a lens for standard actuator applications, this UL Listed and CE Marked pushbutton features a 1 NO-1 NC contact configuration for dependable circuit switching. Part of Eaton's established E34 series, it is built for long service life in wash-down, oil-exposed, and harsh-duty installations where standard enclosures fall short.

Key Features

  • 30.5 mm Bore Size: Standard E34 series dimension for direct fit into compatible panel cutouts and enclosures.
  • Corrosion-Resistant Watertight/Oiltight Construction: Rated for exposure to moisture, oil, and washdown conditions common in industrial control applications.
  • Standard Actuator, Without Lens: Configured for non-illuminated pushbutton operation as a standard control point.
  • Contact Configuration: 1 NO-1 NC contact arrangement supports both normally-open and normally-closed circuit control.
  • Illuminated-Compatible Design: Base platform supports 24 Vac/dc light unit voltage with incandescent, full-voltage light units and bayonet-base lamp compatibility for indicating-light configurations.
  • E34 Series: Part of Eaton's recognized E34 pushbutton and indicating light platform for industrial control panels.
  • 1-Year Warranty: Backed by Eaton's standard manufacturer warranty coverage.

Certifications & Compliance

  • UL Listed
  • CE Marked

Technical Specifications

  • Product Type: Pushbutton Lens
  • Series: E34
  • Warranty: 1 year

Typical Applications

  • Industrial Control Panels
  • Machine Operator Stations
  • Washdown and Oil-Exposed Equipment Areas
  • Indicating Light and Pushbutton Control Systems
  • Panelboard and Control Cabinet Wiring
  • Renovation and New Industrial Construction

Why Eaton?

Eaton's E34 series pushbuttons are engineered with corrosion-resistant, watertight/oiltight construction to withstand the moisture, oil, and washdown conditions found in demanding industrial settings. With UL Listed and CE Marked compliance, this pushbutton delivers code-recognized, reliable performance for control panel and operator station applications. Backed by Eaton's 1-year warranty, it's a dependable choice for professional electrical and industrial control installations.

Manufacturer Resources

Product Specs

Product Width:
2 in
Illumination:
Illuminated
Light unit voltage:
24 Vac/dc
Certifications:
UL Listed
Product Length/Depth:
2.4 in
Application:
Indicating Light
Product Height:
3.4 in
Light unit type:
Incandescent, full voltage
Product Type:
Pushbutton
LED lamp number:
Bayonet base
Warranty:
1 year
Series:
E34
Contact configuration:
1 NO-1 NC
Compliances:
CE Marked
Actuator:
Standard
Special features:
E34 series
Department:
Electrical
Voltage Rating:
24 Vac/dc
Listing:
UL Listed
Standards:
CE Marked
Product Group:
Motor Control & Automation
Product Subgroup:
Push Buttons & Pilot Devices

Eaton E34FB24 – Frequently Asked Questions

1) What panel cutout does the Eaton E34FB24 pushbutton need?
The E34 series is a 30.5 mm device, so it drops into the standard 30.5 mm control panel hole used across industrial operator stations. Overall body size is 3.4 in x 2.4 in x 2 in, which is what you need to clear behind the panel face and between adjacent devices when you lay out a crowded operator station.
2) Can the E34FB24 switch both a start and a stop circuit at the same time?
It carries a 1 NO-1 NC contact block, so one operation makes one circuit and breaks another. That covers the common case of energizing a starter coil while interrupting an interlock or indicator circuit from a single button. If you need more poles than that, you need a different contact arrangement, not this one.
3) Is the Eaton E34 pushbutton OK for a washdown area or a machine that leaks cutting oil?
That is what it is built for. The E34FB24 is corrosion-resistant watertight/oiltight construction, intended for moisture, oil exposure, and washdown duty on industrial equipment. In a dry control cabinet you do not need that level of sealing, but in a food plant, a machine shop, or any hose-down area it is the right class of device.
4) Does the E34FB24 come with a lens?
No lens is supplied. The E34FB24 is furnished without a lens with a standard actuator, so if you want a colored indicating cap or a legend, that lens is a separate item to specify with the order.
5) What voltage lamp does the E34 light unit take?
The light unit is rated 24 Vac/dc and uses an incandescent, full-voltage lamp with a bayonet base. Full voltage means the lamp runs directly at 24 V with no internal transformer, so feed it from a 24 V control circuit and match any replacement lamp to bayonet base at 24 V.
6) Will this Eaton pushbutton pass an inspection on a UL panel and on equipment shipped to Europe?
It is UL Listed and CE Marked, which covers both the North American panel shop requirement and the European declaration for machinery exported overseas. Those two marks are what a panel builder standardizing an operator station usually has to show.
7) What part number do I order for the Eaton 30.5 mm oiltight pushbutton without a lens?
Order Eaton E34FB24. That is the E34 series, 30.5 mm corrosion-resistant watertight/oiltight device with a standard actuator, no lens, and a 1 NO-1 NC contact arrangement.
8) Is the E34FB24 an illuminated device or a plain pushbutton?
The platform is illuminated, built around a 24 Vac/dc light unit for indicating-light duty. Since it ships without a lens, it is a non-illuminated control point as supplied; add the lens and lamp to make it an indicating station.
