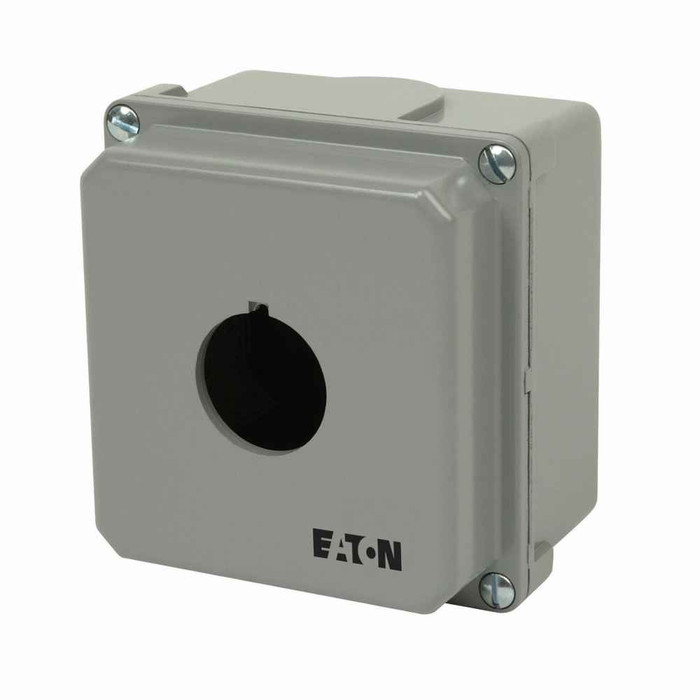

Eaton 10250T Pushbutton Enclosure
Professional Heavy-Duty Watertight Control Enclosure
The Eaton 10250T Pushbutton Enclosure delivers exceptional electrical control protection for demanding industrial and commercial applications. This 30.5mm heavy-duty watertight/oiltight enclosure provides reliable environmental protection designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.
Professional Features & Benefits
Environmental Protection Performance
- NEMA 4, 4X, 12, 13 Rating - Superior protection against water, oil, dust, and corrosive environments for reliable operation in harsh industrial conditions
- Heavy-Duty Watertight/Oiltight Construction - Engineered sealing system prevents moisture and contaminant ingress for long-term electrical reliability
- 30.5mm Element Compatibility - Designed for standard pushbutton and pilot device mounting with precise dimensional accuracy
- Single Element Configuration - Optimized for individual control device installations with compact footprint design
Construction & Installation
- Zinc Die-Cast Bus Construction - Robust metal construction provides superior mechanical strength and electromagnetic shielding for industrial environments
- Surface Mounting Method - Convenient installation directly to panels, walls, or equipment surfaces with secure mounting hardware
- Compact Dimensions - Space-efficient 5.75" x 4" x 3.75" design maximizes installation flexibility while maintaining protection standards
Technical Specifications
Series: 10250T | NEMA Rating: 4, 4X, 12, 13 | Element Size: 30.5mm | Number of Elements: 1 | Mounting Method: Surface | Bus Material: Zinc die cast | Dimensions: 5.75" L x 4" W x 3.75" H | Weight: 1.98 lb | Certifications: UL Listed | Compliances: CE Marked | Environmental Protection: Heavy-Duty Watertight/Oiltight
Installation & Usage
- Select appropriate mounting location ensuring adequate clearance for pushbutton operation and maintenance access
- Mark and drill mounting holes according to enclosure mounting pattern specifications
- Secure enclosure to mounting surface using appropriate fasteners for substrate material
- Install 30.5mm pushbutton or pilot device through front opening ensuring proper sealing gasket placement
- Make electrical connections following NEC guidelines and manufacturer wiring diagrams
- Verify proper gasket seating and enclosure closure for environmental protection integrity
Professional Applications
Ideal for:
- Industrial Control Systems - Motor control panels, conveyor systems, and automated machinery requiring environmental protection
- Commercial HVAC Controls - Rooftop units, air handling systems, and building automation equipment exposed to weather
- Food Processing Equipment - Washdown environments requiring watertight and oiltight protection with sanitary construction
- Chemical Processing Plants - Corrosive environments where NEMA 4X protection prevents equipment degradation
- Outdoor Electrical Controls - Pump stations, irrigation systems, and exterior equipment controls requiring weather protection
- Marine Applications - Shipboard and dock equipment where saltwater exposure demands superior corrosion resistance
- Manufacturing Equipment - Machine tool controls, assembly line stations, and production equipment in harsh environments
- Water Treatment Facilities - Control stations in wet environments requiring reliable pushbutton operation and protection
Heavy-Duty Construction Advantage
The zinc die-cast construction provides exceptional durability and electromagnetic interference shielding while maintaining precise dimensional tolerances for reliable pushbutton mounting. The watertight/oiltight sealing system ensures long-term protection against environmental contaminants, reducing maintenance requirements and extending equipment life in demanding industrial applications.
Why Choose Eaton Quality?
Eaton's century-plus experience in electrical control and protection innovation delivers proven reliability for the most demanding applications. With comprehensive UL listing and CE marking compliance, Eaton pushbutton enclosures provide the environmental protection and construction quality that electricians, electrical contractors, and facility professionals trust worldwide for critical control system installations.
Manufacturer Resources
Product Specs
- Bus Material:
- Zinc die cast
- Catalog Notes:
- All cast enclosures can be converted to base mounting of contact blocks. When used with E30 pushbuttons, only the one element enclosureCan be used.
- Certifications:
- UL Listed
- Compliances:
- CE Marked
- Mounting Method:
- Surface
- Number Of Elements:
- 1
- Product Category:
- Enclosure
- Product Height:
- 3.75 in
- Product Length Depth:
- 5.75 in
- Product Type:
- Pushbutton Enclosure
- Product Weight:
- 1.98 lb
- Product Width:
- 4 in
- Rating:
- NEMA 4X
- Series:
- 10250T
- Product Group:
- Electrical
- Department:
- Electrical
