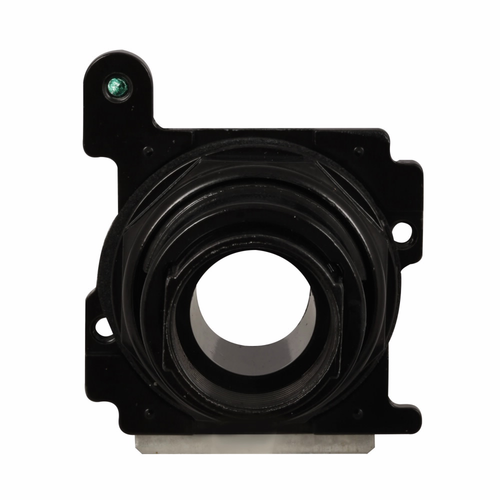

Eaton Heavy-Duty Watertight/Oiltight Push-Pull Operator, Class I Division 2, Non-Illuminated

Eaton Heavy-Duty Watertight/Oiltight Push-Pull Operator, Class I Division 2, Non-Illuminated

(No reviews yet) Write a Review

Model: 10250T10

In Stock (leaves warehouse same day if ordered before 3pm ET)

$119.96
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Heavy-Duty Watertight/Oiltight Push-Pull Operator, Class I Division 2, Non-Illuminated

The Eaton Heavy-Duty Watertight/Oiltight Push-Pull Operator is a 30.5 mm, non-illuminated pushbutton operator engineered for demanding industrial control applications. Built to a NEMA 12 rating for protection against dust, dirt, and oil, this operator is also rated for Class I Division 2 hazardous locations, making it suitable for facilities where flammable gases or vapors may be present. With 3 positions and an intermediate maintained operating mode, it delivers reliable, repeatable control station performance from the trusted 10250T series.

Key Features

  • Trade Size: 30.5 mm operator sized for standard heavy-duty pushbutton stations.
  • Durable Construction: Heavy-duty watertight/oiltight design rated NEMA 12 to resist dust, dirt, and oil in industrial environments.
  • Hazardous Location Type: Class I Division 2 rated for safe operation in areas with potential flammable gases or vapors.
  • Operating Mode: Intermediate maintained operation across 3 positions for precise control sequencing.
  • Illumination: Non-illuminated push-pull operator for straightforward on/off or multi-position control.
  • Compact Dimensions: 1.9 in width x 1.9 in height x 2.2 in depth for standard panel cutouts.
  • Series: Part of the Eaton 10250T series of heavy-duty operators and control station components.

Certifications & Compliance

  • CE Marked
  • CSA Certified
  • NEMA 12 Rated
  • Class I Division 2 Rated for Hazardous Locations

Technical Specifications

  • Warranty: 1 year
  • Department: Electrical
  • Number of positions: 3
  • Product Type: Electrical Component

Typical Applications

  • Industrial Control Panels and Machine Control Stations
  • Class I Division 2 Hazardous Location Equipment
  • Oil, Gas, and Petrochemical Facility Controls
  • Heavy-Duty Manufacturing and Processing Equipment
  • Watertight/Oiltight Enclosure Control Stations

Why Eaton?

Eaton's 10250T series push-pull operators are built for heavy-duty, watertight/oiltight performance backed by CSA certification and CE marking. The Class I Division 2 rating and NEMA 12 protection make this operator a dependable choice for control panels in demanding and hazardous industrial environments, delivering the code-compliant reliability professionals expect from Eaton.

Manufacturer Resources

Product Specs

Warranty:
1 year
Series:
10250T
Department:
Electrical
Product Width:
1.9 in
Number of positions:
3
Certifications:
CSA Certified
Compliances:
CE Marked
Illumination:
Non-illuminated
Product Type:
Pushbutton Operator
Product Size:
30.5 mm
Standards:
NEMA 12
Listing:
CSA Certified
Product Group:
Motor Control & Automation
Product Subgroup:
Push Buttons & Pilot Devices

Eaton 10250T10 – Frequently Asked Questions

1) Will an Eaton 10250T push-pull operator fit a standard 30.5 mm panel hole?
Yes. The 10250T push-pull operator is a 30.5 mm trade size unit, which is the standard heavy-duty pushbutton hole in industrial control panels and prepunched enclosure covers. Body footprint is 1.9 in width by 1.9 in height by 2.2 in depth, so allow that much clearance behind and around the cutout when you are laying out a crowded door.
2) What is the difference between Eaton 10250T9 and 10250T10 push-pull operators?
Both are 30.5 mm non-illuminated push-pull operators, and the difference is purely how the button behaves. The 10250T9 is maintained push and pull, so it stays where you put it in both directions. The 10250T10 is momentary push and pull with a maintained intermediate position, so the outer travel in each direction springs back while the middle position latches. Pick T9 for a simple on/off station, T10 when you need a held center position with momentary jog either side.
3) Can I use this push-pull button in a Class I Division 2 area?
Yes, the 10250T heavy-duty watertight/oiltight push-pull operator is rated for Class I Division 2 hazardous locations, meaning areas where flammable gases or vapors may be present under abnormal conditions. It is common in oil, gas and petrochemical control stations. The operator rating still has to be paired with an enclosure and contact blocks suited to the same classification for the installation as a whole to be compliant.
4) Is a NEMA 12 push-pull operator good enough for a washdown area?
NEMA 12 is the rating here, which covers dust, dirt, falling dirt and dripping non-corrosive liquids such as oil and coolant. That suits machine shops, processing lines and oiltight control stations. It is not a washdown rating. If the station gets hosed down or sprayed directly, you need a 4 or 4X rated operator and enclosure instead.
5) Why choose a push-pull operator instead of a standard flush pushbutton for a machine stop?
A push-pull operator gives you a large button you can grab and pull out without reaching for a key or a reset tool, which is why it is used for maintained start/stop and emergency-style control at machine stations. A flush momentary pushbutton only makes contact while pressed, so it cannot hold a machine in a state on its own. If you need the button to stay where the operator left it, the maintained push and pull 10250T9 does that; a flush momentary button does not.
6) Is this push-pull operator illuminated, and can I add a lamp to it?
It is non-illuminated. There is no lamp behind the button and no provision for one, so if your station needs a lit indication of run state you will want a separate 30.5 mm indicating light next to it, or an illuminated operator instead of this one.
