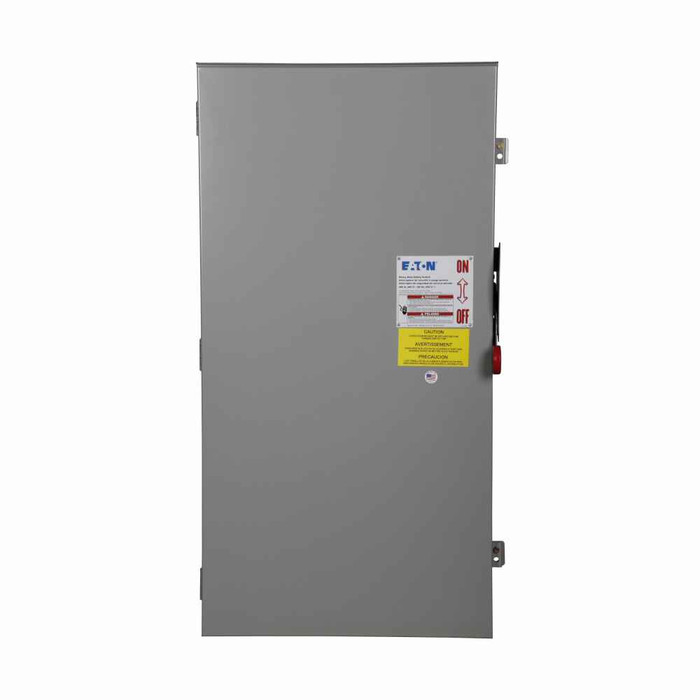

Eaton 400A/3P HD Fusible Safety Switch 600V w/Neut Nema 3R**

Eaton Heavy Duty Fusible Safety Switch 400A Three-Pole 600V with Neutral NEMA 3R

(No reviews yet) Write a Review

Model: DH365NRK

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,708.90
$2,619.75
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Heavy Duty Fusible Safety Switch 400A Three-Pole 600V with Neutral NEMA 3R

Professional Heavy Duty Electrical Disconnect with Weather-Resistant Protection

The Eaton Heavy Duty Fusible Safety Switch delivers reliable electrical disconnect and overcurrent protection with 400A capacity and 600V rating. This three-pole safety switch features fusible protection with neutral configuration in a NEMA 3R painted galvanized steel enclosure, providing weather-resistant performance for demanding electrical applications requiring up to 250-350 hp motor protection.

Professional Features & Benefits

  • 400A Rating: High-capacity electrical disconnect suitable for heavy-duty commercial and industrial applications requiring substantial power handling.
  • 600V Three-Pole Configuration: Accommodates high-voltage three-phase systems with reliable switching and isolation capabilities.
  • NEMA 3R Enclosure: Weather-resistant painted galvanized steel construction protects internal components from rain, sleet, and outdoor environmental conditions.
  • Fusible with Neutral Design: Class H fuse provision with neutral connection provides comprehensive overcurrent protection and system grounding.
  • 250-350 HP Motor Rating: Engineered to handle substantial motor loads at 480V and 600V three-phase applications.
  • UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations.
  • Heavy Duty Construction: Robust 151 lb design ensures long-term reliability in demanding industrial environments.

Technical Specifications

  • Amperage Rating: 400A
  • Certifications: UL Listed
  • Department: Electrical
  • Enclosure: NEMA 3R
  • Enclosure Material: Painted galvanized steel
  • Fuse Class Provision: Class H
  • Fuse Configuration: Fusible with neutral
  • Hp Rating Max: 250, 350 hp (3PH @480/600 V)
  • Number Of Poles: Three-pole
  • Number Of Wires: 4
  • Product Category: Heavy Duty, Fusible with neutral
  • Product Group: Electrical
  • Product Height: 12.39 in
  • Product Length Depth: 44.76 in
  • Product Type: Safety Switch
  • Product Weight: 151 lb
  • Product Width: 24.12 in
  • Voltage Rating: 600 V

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Industrial Manufacturing Facilities
  • Commercial Buildings and Office Complexes
  • Heavy Equipment and Motor Control Centers
  • Outdoor Electrical Service Disconnects
  • High-Voltage Distribution Systems
  • Process Control and Automation Systems
  • Emergency Power and Generator Applications

Why Choose Eaton Quality?

Eaton delivers proven reliability through UL Listed certification and heavy-duty construction designed for professional electrical applications. The weather-resistant NEMA 3R enclosure and painted galvanized steel construction ensure long-term durability in demanding environments, while the 400A capacity and 600V rating provide the performance needed for critical electrical infrastructure.

Manufacturer Resources

Product Specs

Amperage Rating:
400A
Certifications:
UL Listed
Enclosure:
NEMA 3R
Enclosure Material:
Painted galvanized steel
Fuse Class Provision:
Class H
Fuse Configuration:
Fusible with neutral
Hp Rating Max:
250, 350 hp (3PH @480/600 V)
Number Of Poles:
Three-pole
Number Of Wires:
4
Product Category:
Heavy Duty, Fusible with neutral
Product Height:
12.39 in
Product Length Depth:
44.76 in
Product Type:
Safety Switch
Product Weight:
151 lb
Product Width:
24.12 in
Voltage Rating:
600 V
Product Group:
Electrical
Department:
Electrical
