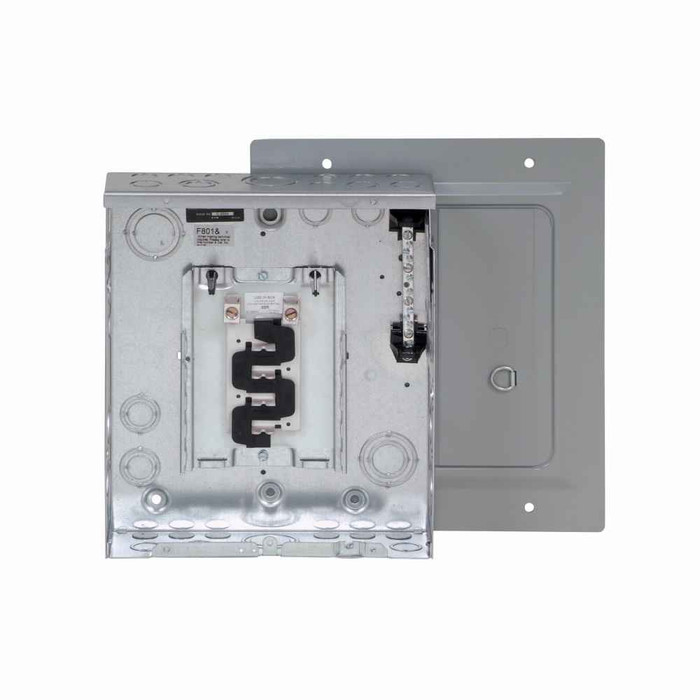

Eaton Main Lug Loadcenter 125A 16-Circuit Single-Phase 120/240V BR Series NEMA 1

Eaton Main Lug Loadcenter 125A 16-Circuit Single-Phase 120/240V BR Series NEMA 1

Professional Electrical Distribution Panel for Residential and Commercial Applications

The Eaton Main Lug Loadcenter delivers exceptional electrical power distribution performance for residential and commercial electrical systems. This 125A single-phase loadcenter provides reliable electrical distribution designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Distribution Performance

• 125A Main Lug Design - Professional amperage capacity for comprehensive electrical distribution with reliable power handling for residential and light commercial applications
• 16-Circuit Configuration - Accommodates up to 16 individual circuit breakers for complete electrical system organization and branch circuit protection
• Single-Phase 120/240V Rating - Standard residential voltage configuration providing both 120V and 240V power distribution for lighting, outlets, and appliances
• 10 kAIC Interrupt Rating - Professional interrupting capacity for reliable fault current protection in typical residential and commercial electrical environments

Professional Installation & Protection

• NEMA 1 Enclosure - Indoor metallic enclosure providing professional protection for electrical components in dry locations with secure cover included
• Flush Mounting Design - Professional installation method for clean, finished appearance in residential and commercial electrical installations
• Aluminum Bus Construction - Reliable bus material providing excellent electrical conductivity and corrosion resistance for long-term performance

Technical Specifications

Amperage Rating: 125A, Voltage Rating: 120/240V, Phase: Single-phase, Number of Circuits: 16, Number of Spaces: 8, Interrupt Rating: 10 kAIC, Wire Size: #14-1 AWG Cu/Al, Bus Material: Aluminum, Enclosure: NEMA 1, Enclosure Material: Metallic, Mounting: Flush, Main Circuit Breaker: BR, Special Features: Current design, Certifications: UL 50, Dimensions: 13" H x 11" W x 3.56" D, Weight: 13 LB

Installation & Usage

1. Verify electrical service compatibility with 125A single-phase 120/240V requirements and local electrical codes
2. Mount loadcenter securely using flush mounting method in appropriate NEMA 1 indoor location
3. Connect main service conductors to main lug terminals using #14-1 AWG Cu/Al wire as specified
4. Install appropriate BR series circuit breakers in designated spaces according to circuit requirements
5. Connect branch circuit wiring to individual circuit breakers following proper electrical safety procedures
6. Complete installation with proper grounding, bonding, and electrical testing per NEC requirements

Professional Applications

Ideal for:

• Residential Electrical Systems - Main electrical distribution for homes, apartments, and residential buildings requiring reliable 125A service capacity
• Light Commercial Applications - Small commercial buildings, offices, and retail spaces needing professional electrical distribution solutions
• Electrical Panel Upgrades - Replacement and upgrade projects for older electrical panels requiring modern safety and capacity standards
• New Construction Projects - Primary electrical distribution for new residential and light commercial construction with BR series compatibility
• Electrical Service Expansions - Sub-panel applications for electrical service additions and circuit capacity expansion projects
• Professional Electrical Installations - Contractor and electrician projects requiring UL listed loadcenters with reliable performance standards
• Code Compliance Projects - Electrical installations requiring NEMA 1 enclosure protection and professional electrical safety standards
• Maintenance and Replacement - Service calls and electrical maintenance requiring compatible BR series loadcenter solutions

BR Series Advantage

The BR series represents Eaton's commitment to reliable residential and light commercial electrical distribution, featuring current design technology that ensures compatibility with modern electrical systems while maintaining the proven performance standards that electrical professionals trust for consistent power distribution and circuit protection.
