Eaton BR2040L200R BR main lug ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$842.30
$792.30

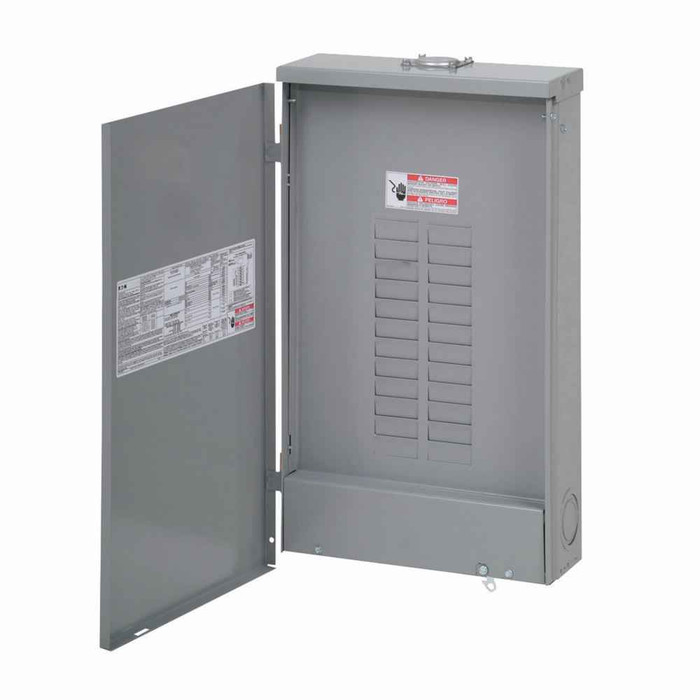

Eaton BR2040L200R BR main lug loadcenter,No feed-thru lugs,includes BREQS125 hold-down screw, 200 A,C3R,Aluminum, NEMA 3R,Metallic,25 kAIC,BWH,40 Circuits,Twenty-four pole,20 Spaces,Three-wire,Single-phase,120/240V,#1 AWG-300 kcmil Cu/Al

Eaton BR2040L200R BR main lug loadcenter,No feed-thru lugs,includes BREQS125 hold-down screw, 200 A,C3R,Aluminum, NEMA 3R,Metallic,25 kAIC,BWH,40 Circuits,Twenty-four pole,20 Spaces,Three-wire,Single-phase,120/240V,#1 AWG-300 kcmil Cu/Al

(No reviews yet) Write a Review

Model: EAT-BR2040L200R
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$842.30
$792.30
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton BR2040L200RG BR main lug loadcenter,Ground bar,includes BREQS125 hold-down screw, 200 A,Aluminum, NEMA 3R,Metallic,25 kAIC,BWH,40 Circuits,Twenty-four pole,20 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240V,#1 AWG-300 kcmil Cu/A

Eaton BR2040L200RG BR main lug loadcenter,Ground bar,includes BREQS125 hold-down screw, 200 A,Aluminum, NEMA 3R,Metallic,25 kAIC,BWH,40 Circuits,Twenty-four pole,20 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240V,#1 AWG-300 kcmil Cu/A

Model: EAT-BR2040L200RG

Eaton BR main lug loadcenter,Ground bar,includes BREQS125 hold-down screw, 200 A,Aluminum, NEMA 3R,Metallic,25 kAIC,BWH,40 Circuits,Twenty-four pole,20 Spaces,Three-wire,Single-phase,Type BR 1-inch...

Eaton

$896.04
$846.04
Eaton Eaton BR main lug loadcenter,No feed-thru lugs,includes BREQS125 hold-down screw, 200 A,C3R,Aluminum, NEMA 3R,Metallic,25 kAIC,BWH,40 Circuits,Twenty-four pole,20 Spaces,Three-wire,Single-phase,120/240V,#1 AWG-300 kcmil Cu/Al

Manufacturer Resources

Product Specs

Amperage Rating:
200 A
Box Size:
C3R
Bus Material:
Aluminum
Catalog Notes:
Has notch for brhdk125 hold-down kit.
Certifications:
UL 50
Cover:
Cover included
Enclosure:
NEMA 1
Enclosure Material:
Metallic
Interrupt Rating:
25 kAIC
Main Circuit Breaker:
BWH
Number Of Circuits:
40
Number Of Spaces:
20
Number Of Wires:
3
Phase:
Single-phase
Product Height:
25 in
Product Length Depth:
5.19 in
Product Weight:
15.5 lb
Product Width:
14.31 in
Special Features:
No feed-thru lugs, includes BREQS125 hold-down screw
Type:
Main lug
Used With:
Type BR 1-inch breakers
Voltage Rating:
120/240V
Wire Size:
#1 AWG-300 kcmil Cu/Al
!
