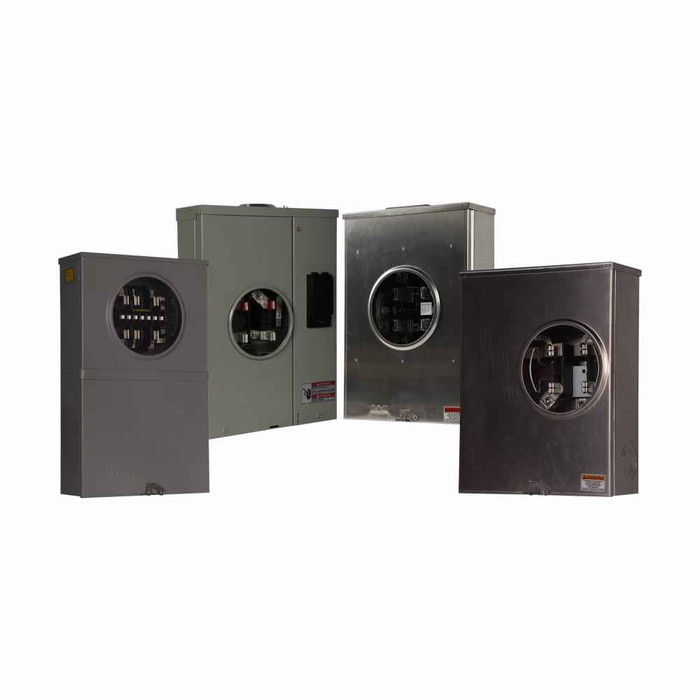

Eaton Meter Socket Instrument Rated 20A Six-Jaw 600V Factory Wired Test Switch

Eaton Meter Socket Instrument Rated 20A Six-Jaw 600V Factory Wired Test Switch

Professional Electrical Metering Equipment

The Eaton Meter Socket Instrument Rated delivers exceptional electrical metering and power measurement performance for commercial and industrial electrical systems. This 20A six-jaw meter socket with factory wired test switch provides reliable electrical metering infrastructure designed for professional electricians, electrical contractors, and utility professionals, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Performance & Capacity

• 20A Amperage Rating - Provides reliable current capacity for residential and light commercial electrical metering applications with consistent performance
• 600V AC Voltage Rating - Handles high voltage applications for commercial and industrial electrical systems with superior electrical isolation
• Six-Jaw Configuration - Ensures secure meter connection with multiple contact points for enhanced electrical reliability and reduced contact resistance
• Instrument Rated Design - Engineered for precision electrical measurement and metering applications with professional-grade accuracy

Installation & Protection Features

• Factory Wired Test Switch - Pre-installed test switch eliminates field wiring requirements and ensures proper electrical connections for safe meter testing
• UL Listed Certification - Meets rigorous electrical safety standards for professional installation in commercial and residential electrical systems
• Utility Approved - Connecticut Eversource approved for compliance with regional utility requirements and electrical code standards

Technical Specifications

Amperage Rating: 20A, Voltage Rating: 600V AC, Configuration: Six-jaw meter socket, Test Switch: Factory wired, Dimensions: 20" H x 12" W x 4.38" D, Weight: 21 lbs, Number of Sockets: 1, Certifications: UL Listed, Utility Approvals: CT Eversource (Connecticut Light and Power Co./Nstar/PSC New Hampshire/Western Mass Electric), Catalog Notes: Northeast approved

Installation & Usage

1. Verify electrical system compatibility with 20A rating and 600V capacity before installation
2. Mount meter socket securely to appropriate electrical enclosure or meter base following local electrical codes
3. Connect incoming electrical service conductors to line-side terminals using proper torque specifications
4. Install load-side connections to electrical distribution panel ensuring proper phase sequence
5. Verify factory wired test switch operation and proper electrical continuity before energizing
6. Install appropriate electrical meter in six-jaw socket ensuring secure mechanical and electrical connection

Professional Applications

Ideal for:

• Commercial Electrical Metering - Office buildings, retail facilities, and commercial properties requiring accurate electrical measurement
• Industrial Power Monitoring - Manufacturing facilities and industrial plants needing reliable electrical metering infrastructure
• Utility Service Connections - Primary electrical service entrance applications for accurate billing and power monitoring
• Electrical Distribution Systems - Main electrical panels and switchgear requiring integrated metering capabilities
• Multi-Tenant Buildings - Apartment complexes and commercial buildings with individual electrical metering requirements
• Electrical Submetering - Secondary metering applications for electrical load monitoring and energy management
• Renewable Energy Systems - Solar and wind power installations requiring bi-directional electrical metering
• Electrical Testing Applications - Facilities requiring regular electrical meter testing and calibration with integrated test switch

Factory Wired Test Switch Advantage

The factory wired test switch eliminates field wiring errors and ensures proper electrical connections for safe meter testing and maintenance. This pre-installed feature reduces installation time, improves electrical safety, and provides reliable switching for meter testing procedures without interrupting electrical service to connected loads.

Why Choose Eaton Quality?

Eaton's century-plus experience in electrical power management innovation delivers superior metering solutions trusted by electricians, electrical contractors, and utility professionals worldwide. Our UL Listed meter sockets provide reliable electrical performance, utility compliance, and the advanced engineering that professionals depend on for critical electrical metering applications in commercial, industrial, and residential electrical systems.
