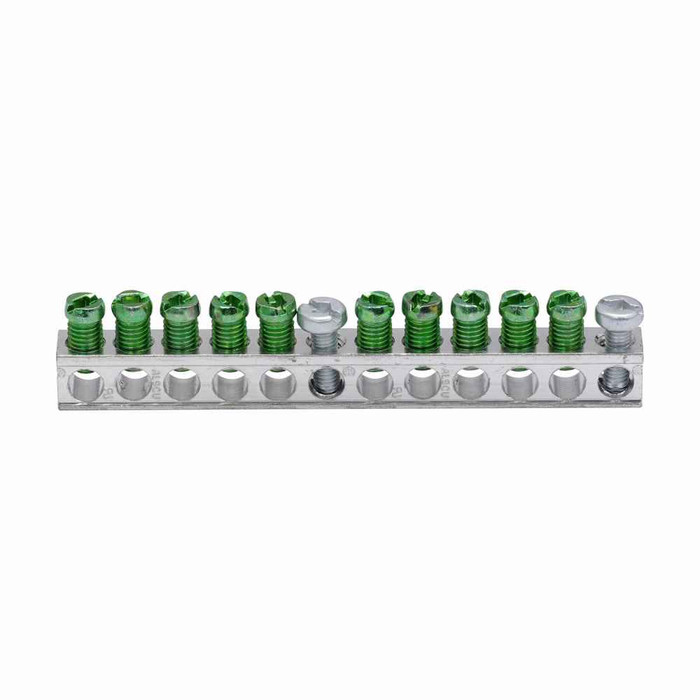

Eaton Ground Bar 10 Terminal CH/BR Plug-On Neutral 10 Circuit

Eaton Ground Bar 10 Terminal CH/BR Plug-On Neutral

Professional Electrical Grounding Accessory

The Eaton Ground Bar 10 Terminal delivers exceptional electrical grounding performance for CH/BR plug-on neutral electrical panels. This 10 circuit ground bar provides reliable electrical grounding designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Grounding Performance

• 10 Terminal Configuration - Provides dedicated grounding connections for up to 10 circuits with professional-grade electrical contact reliability
• CH/BR Plug-On Neutral Compatibility - Engineered specifically for Eaton CH and BR series plug-on neutral load centers ensuring proper electrical system integration
• 10 Circuit Capacity - Accommodates electrical grounding requirements for residential and light commercial electrical distribution systems
• Compact Design - 1-inch dimensions provide space-efficient installation in electrical panels while maintaining full grounding functionality

Installation & Safety

• Professional Installation Ready - Designed for quick and secure mounting in compatible electrical panels with proper electrical code compliance
• Electrical Code Compliance - Meets professional electrical grounding requirements for safe electrical system operation and NEC compliance
• Lightweight Construction - 0.1 lb weight facilitates easy handling during electrical panel installation and maintenance procedures

Technical Specifications

Product Type: Ground Bar, Number of Circuits: 10, Number of Terminals: 10, Compatible Series: CH/BR Plug-On Neutral, Dimensions: 1 in x 1 in x 1 in, Weight: 0.1 lb, Certifications: Contact Manufacturer, Product Group: Electrical

Installation & Usage

1. Verify electrical panel power is disconnected and follow proper electrical safety procedures before installation
2. Identify appropriate mounting location within CH or BR series plug-on neutral load center
3. Secure ground bar to designated mounting points using appropriate electrical panel hardware
4. Connect individual circuit ground wires to available terminals ensuring proper electrical contact
5. Verify all ground connections are tight and properly seated for reliable electrical grounding
6. Complete electrical system testing to confirm proper grounding system operation

Professional Applications

Ideal for:

• Residential Electrical Panels - CH and BR series load centers requiring additional grounding terminal capacity for circuit expansion
• Light Commercial Applications - Small commercial electrical systems using Eaton plug-on neutral technology for efficient power distribution
• Electrical Panel Upgrades - Retrofit installations where additional grounding terminals are needed for electrical code compliance
• New Construction Projects - Residential and commercial electrical installations requiring proper grounding infrastructure
• Electrical Service Upgrades - Panel modifications and expansions requiring additional grounding terminal capacity
• Electrical Contractor Applications - Professional electrical installations requiring reliable grounding accessories for CH/BR systems
• Facility Maintenance - Electrical system maintenance and repair requiring proper grounding terminal replacement or addition
• Electrical Safety Systems - Grounding infrastructure for electrical protection and safety compliance in residential and commercial applications

Plug-On Neutral Technology Advantage

Specifically engineered for Eaton's innovative plug-on neutral technology, this ground bar ensures seamless integration with CH and BR series electrical panels. The plug-on neutral system provides faster installation, improved electrical connections, and enhanced safety for modern electrical distribution systems, making this ground bar an essential component for professional electrical installations.

Why Choose Eaton Quality?

Eaton's century-plus experience in electrical power management innovation ensures this ground bar meets the highest standards for electrical safety and reliability. With comprehensive electrical testing, professional-grade construction, and trusted performance for electricians, electrical contractors, and facility professionals worldwide, Eaton continues to lead in electrical grounding solutions and intelligent power management technology.
