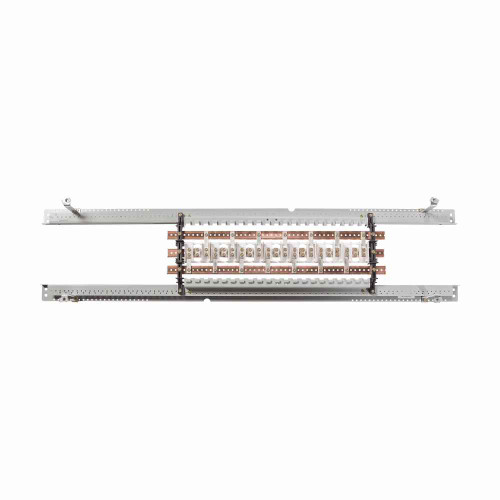

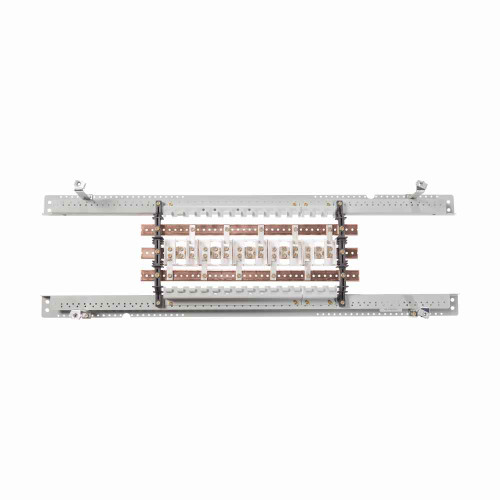

Eaton Panelboard Pow-R-Xpress PRL2X 225A 42-Circuit 480Y/277V 3-Phase Interior Copper Bus

Eaton Panelboard Pow-R-Xpress PRL2X 225A 42-Circuit 480Y/277V 3-Phase Interior Copper Bus

Professional Electrical Power Distribution Panelboard

The Eaton Pow-R-Xpress PRL2X Panelboard delivers exceptional electrical power distribution performance for commercial and industrial applications. This 225A 42-circuit panelboard provides reliable power distribution designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Power Distribution Performance

• 225A Main Bus Rating - High-capacity power distribution for demanding commercial and industrial electrical systems with reliable current handling
• 42-Circuit Configuration - Extensive circuit capacity providing flexible power distribution options for complex electrical installations
• 480Y/277V 3-Phase 4-Wire System - Professional voltage configuration ideal for commercial lighting and power distribution applications
• Copper Bus Construction - Superior conductivity and corrosion resistance ensuring long-term electrical performance and reliability

Professional Installation & Protection

• Interior Mounting Design - Engineered for protected indoor installations in commercial and industrial environments
• UL 67 Certified - Meets rigorous safety standards for panelboard construction and electrical performance
• Compact Dimensions - Space-efficient design at 43.75" x 18.25" x 6.5" optimizing electrical room layouts

Technical Specifications

Amperage Rating: 225A, Number of Circuits: 42, Voltage: 480Y/277V, Phase: 3-Phase 4-Wire, Bus Material: Copper, Mounting: Interior, Dimensions: 43.75" L x 18.25" W x 6.5" H, Weight: 31 lbs, Certification: UL 67, Product Type: Panelboard, Series: Pow-R-Xpress PRL2X

Installation & Usage

1. Verify electrical specifications match system requirements including 480Y/277V 3-phase configuration
2. Ensure proper mounting location meets interior installation requirements and electrical codes
3. Install panelboard following NEC guidelines and local electrical codes for commercial installations
4. Connect main feeder conductors to 225A copper bus system with proper torque specifications
5. Install appropriate circuit breakers in the 42 available circuit positions as required
6. Complete all grounding connections and verify proper electrical continuity throughout the system

Professional Applications

Ideal for:

• Commercial Buildings - Office complexes, retail facilities, and commercial spaces requiring reliable 480Y/277V power distribution
• Industrial Facilities - Manufacturing plants, warehouses, and industrial operations needing high-capacity electrical distribution
• Healthcare Facilities - Hospitals, clinics, and medical centers requiring dependable electrical power systems
• Educational Institutions - Schools, universities, and training facilities with extensive electrical distribution needs
• Data Centers - Critical power distribution for server rooms and telecommunications equipment
• Municipal Buildings - Government facilities, fire stations, and public buildings requiring professional electrical systems
• Hospitality Industry - Hotels, restaurants, and entertainment venues with complex electrical requirements
• Multi-Tenant Buildings - Apartment complexes and mixed-use developments needing reliable power distribution

Pow-R-Xpress Technology Advantage

Eaton's Pow-R-Xpress panelboard technology delivers superior electrical performance through advanced copper bus design, precision manufacturing, and comprehensive circuit protection capabilities. The PRL2X series provides exceptional reliability for critical power distribution applications while maintaining the flexibility needed for diverse electrical system configurations.

Why Choose Eaton Quality?

With over a century of electrical power management innovation, Eaton leads the industry in intelligent power solutions. Our commitment to electrical safety, UL certification compliance, and proven performance makes Eaton panelboards the trusted choice for electricians, electrical contractors, and facility professionals worldwide. Every Eaton panelboard represents decades of engineering excellence and manufacturing precision.
