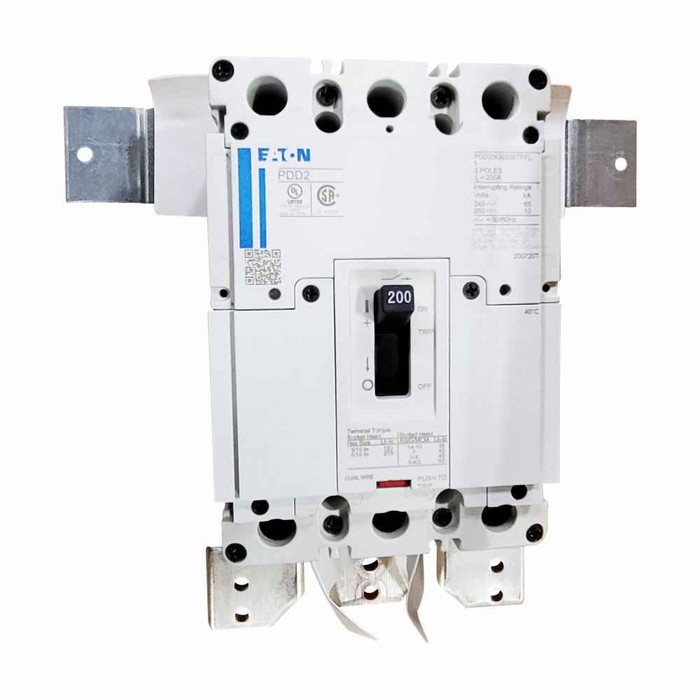

Eaton Main Breaker Kit 225A Pow-R-Xpress Series PDG2XM Single/Three-Phase Top Bottom Mount

Eaton Main Breaker Kit 225A Pow-R-Xpress Series PDG2XM Single/Three-Phase Top Bottom Mount

Professional Electrical Power Distribution Main Breaker Kit

The Eaton Main Breaker Kit 225A Pow-R-Xpress Series delivers exceptional electrical power distribution performance for commercial and industrial electrical systems. This 225-ampere main breaker kit provides reliable electrical protection and power distribution designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Performance & Capacity

• 225-Ampere Rating - High-capacity electrical distribution for demanding commercial and industrial applications with reliable current handling performance
• Single or Three-Phase Configuration - Versatile phase compatibility for diverse electrical system requirements and flexible installation options
• PDG2XM Circuit Breaker Type - Advanced circuit breaker technology providing dependable electrical protection and switching performance
• Pow-R-Xpress Series Design - Engineered for professional electrical distribution systems with proven Eaton quality and reliability

Installation & Mounting Flexibility

• Top and Bottom Mounting Options - Flexible mounting configuration for diverse electrical panel and enclosure installation requirements
• Compact Dimensions - Space-efficient 6" x 4" x 3" design optimizes electrical panel space utilization while maintaining full electrical performance
• Lightweight Construction - 5-pound weight facilitates easier handling and installation for electrical professionals

Technical Specifications

Amperage Rating: 225A, Phase Configuration: Single-phase or three-phase, Circuit Breaker Type: PDG2XM, Series: Pow-R-Xpress, Product Type: Main Breaker Kit, Mounting: Top and bottom mounting, Dimensions: 6" L x 4" W x 3" H, Weight: 5 lb, Certifications: UL 67 Listed, Product Group: Electrical Circuit Breaker

Installation & Usage

1. Verify electrical system compatibility with 225A main breaker kit specifications and phase requirements
2. Ensure proper electrical panel preparation and mounting surface alignment for top or bottom mounting configuration
3. Install main breaker kit following NEC guidelines and local electrical codes for safe electrical connections
4. Connect incoming electrical service conductors to main breaker terminals with proper torque specifications
5. Verify proper electrical grounding and bonding connections for electrical safety compliance
6. Test main breaker operation and electrical continuity before energizing the electrical distribution system

Professional Applications

Ideal for:

• Commercial Electrical Systems - Main electrical distribution for office buildings, retail facilities, and commercial properties requiring 225A capacity
• Industrial Power Distribution - Manufacturing facilities, warehouses, and industrial plants needing reliable main breaker protection
• Electrical Panel Upgrades - Modernizing existing electrical distribution systems with advanced main breaker technology
• New Construction Projects - Primary electrical distribution for new commercial and industrial building electrical systems
• Facility Electrical Maintenance - Replacement and upgrade applications for aging main breaker equipment in existing facilities
• Electrical Contractor Applications - Professional electrical installation projects requiring high-capacity main breaker solutions
• Power Distribution Centers - Main electrical protection for centralized power distribution and electrical control systems
• Electrical Safety Systems - Critical electrical protection applications where reliable main breaker performance is essential

Pow-R-Xpress Series Advantage

The Pow-R-Xpress series represents Eaton's commitment to advanced electrical distribution technology, providing professional-grade main breaker solutions with enhanced electrical performance, reliable protection capabilities, and flexible installation options that meet the demanding requirements of modern commercial and industrial electrical systems.

Why Choose Eaton Quality?

With over a century of electrical power management innovation, Eaton delivers unmatched electrical reliability and safety performance. This UL 67 listed main breaker kit exemplifies Eaton's commitment to electrical excellence, providing the dependable electrical protection and professional quality that electricians, electrical contractors, and facility professionals trust worldwide for critical electrical distribution applications.
