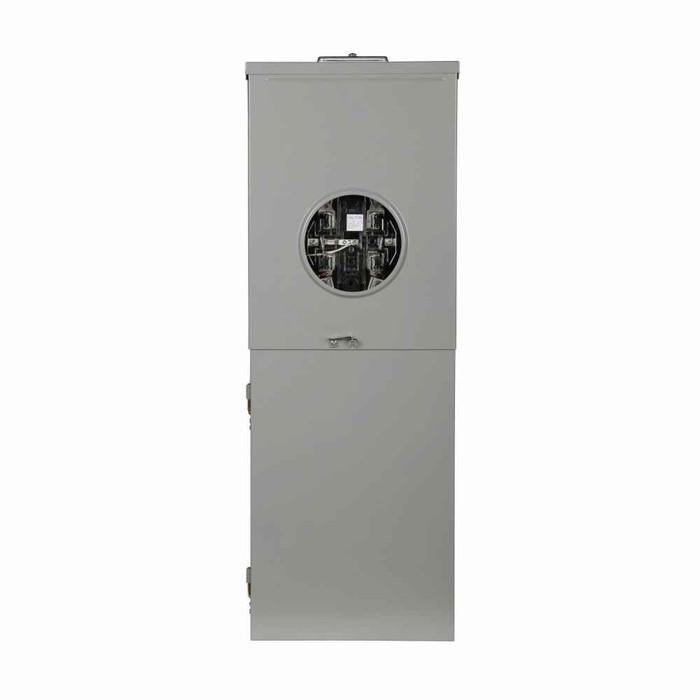

Eaton Residential Meter Breaker All-in-One 200A Single-Phase 16-Circuit NEMA 3R Aluminum Four-Jaw Lever Bypass 120/240V

Eaton Residential Meter Breaker All-in-One 200A Single-Phase 16-Circuit NEMA 3R Aluminum Four-Jaw Lever Bypass 120/240V

Professional All-in-One Meter Breaker Solution

The Eaton Residential Meter Breaker All-in-One delivers exceptional electrical power management and metering performance for residential electrical service applications. This 200A single-phase meter breaker combination provides reliable electrical protection and utility metering designed for professional electricians, electrical contractors, and utility professionals, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Performance & Protection

• 200A Service Capacity - Provides robust electrical service capacity for residential applications with reliable power distribution and protection
• 10 kAIC Interrupt Rating - Delivers dependable short-circuit protection with proven interrupting capacity for residential electrical systems
• 16-Circuit Distribution - Accommodates comprehensive residential electrical distribution with ample circuit capacity for modern homes
• Single-Phase 120/240V Configuration - Optimized for standard residential electrical service with dual voltage capability for lighting and appliance circuits

Construction & Installation

• NEMA 3R Enclosure Rating - Weather-resistant outdoor installation capability with protection against rain, sleet, and ice formation
• Aluminum Bus Construction - Lightweight yet durable aluminum bus material provides excellent conductivity and corrosion resistance
• Four-Jaw Meter Socket - Professional utility-grade meter socket design ensures secure meter connection and reliable electrical contact
• Lever Bypass Operation - Convenient lever bypass mechanism allows safe meter removal and replacement during service operations

Professional Installation Features

• Top and Bottom Entry - Flexible conduit entry options accommodate various installation configurations and utility service requirements
• Surface Mount Design - Streamlined surface mounting installation for efficient electrical service connection and professional appearance
• CSR Main Circuit Breaker - Integrated main circuit breaker provides primary electrical protection and service disconnect capability

Technical Specifications

Service Rating: 200A, Voltage: 120/240V AC, Phase: Single-phase, Interrupt Rating: 10 kAIC, Number of Circuits: 16, Enclosure: NEMA 3R, Bus Material: Aluminum, Meter Socket: Four-jaw, Bypass: Lever operation, Wire Size: #6-350 kcmil, Feed Type: Top/bottom entry, Main Breaker: CSR, Mounting: Surface mount, Dimensions: 41.5" H x 14.75" W x 6.25" D, Weight: 40 lbs, Certifications: UL Listed, Utility Approvals: IL Ameren

Installation & Usage

1. Verify proper mounting location meets NEMA 3R outdoor installation requirements and utility clearance specifications
2. Secure meter breaker enclosure to appropriate mounting surface using proper fasteners for structural support
3. Connect utility service conductors to top entry points following local electrical codes and utility requirements
4. Install load-side conductors to bottom entry points ensuring proper wire size compatibility (#6-350 kcmil range)
5. Verify main CSR circuit breaker operation and proper electrical connections before energizing system
6. Test lever bypass mechanism operation for proper meter socket access and safety functionality

Professional Applications

Ideal for:

• Residential Service Entrance - Primary electrical service connection for single-family homes and residential properties
• New Construction Projects - Complete meter breaker solution for residential electrical service installation
• Service Upgrades - Modernization of existing residential electrical service with combined metering and protection
• Utility Metering Applications - Professional utility-approved metering solution with integrated circuit protection
• Outdoor Electrical Service - Weather-resistant installation for exterior electrical service connection points
• Electrical Contractor Projects - Comprehensive all-in-one solution reducing installation time and component coordination
• Code Compliance Installations - UL Listed solution meeting residential electrical code requirements
• Professional Electrical Systems - Reliable electrical service solution for residential power distribution and utility interface

All-in-One Design Advantage

The integrated meter breaker design combines utility metering capability with main electrical protection in a single enclosure, reducing installation complexity while providing comprehensive electrical service functionality. The four-jaw meter socket ensures reliable utility meter connection, while the lever bypass mechanism enables safe meter service operations. This professional solution streamlines residential electrical service installation while maintaining the highest standards of electrical safety and utility compatibility.

Why Choose Eaton Quality?

Eaton's century-plus experience in electrical power management innovation delivers proven reliability for residential electrical service applications. Our commitment to electrical safety and UL Listed quality ensures dependable performance that electricians, electrical contractors, and utility professionals trust worldwide. This meter breaker combination represents Eaton's dedication to intelligent power management solutions that meet the demanding requirements of modern residential electrical systems while providing the durability and performance that define professional electrical equipment.
