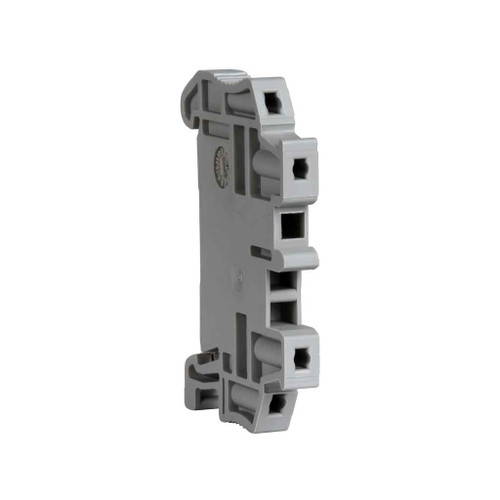

Eaton Universal End Stop One Screw 35mm DIN Rail Mount XB IEC Series
Professional DIN Rail Terminal Block Accessory
The Eaton Universal End Stop delivers exceptional terminal block organization and electrical safety performance for 35mm DIN rail applications. This professional end stop provides reliable terminal block positioning and electrical isolation designed for professional electricians, electrical contractors, and control panel builders, offering the proven reliability and advanced engineering that professionals trust from the global leader in intelligent power management and industrial control solutions.
Professional Features & Benefits
DIN Rail Mounting Performance
- 35mm DIN Rail Compatibility - Universal mounting design ensures secure installation on standard 35mm DIN rails for professional control panel applications
- One Screw Installation - Simple single-screw mounting method provides quick and secure attachment for efficient electrical installation
- Compact Design Profile - 1.6" x 0.99" x 0.32" dimensions optimize control panel space utilization while maintaining professional appearance
- Lightweight Construction - 0.0375 lb weight minimizes DIN rail loading while providing durable terminal block positioning
Professional Installation & Safety
- CSA Certified Quality - Professional certification ensures compliance with North American electrical safety standards for commercial and industrial applications
- Universal Terminal Block Compatibility - Works with various terminal block types and manufacturers for flexible control panel design options
- Professional End Stop Function - Prevents terminal block movement and provides clean electrical installation appearance in control panels and electrical enclosures
Technical Specifications
Product Type: Universal End Stop, DIN Rail Compatibility: 35mm rail, Mounting Method: One screw, Dimensions: 1.6" L x 0.99" W x 0.32" H, Weight: 0.0375 lb, Certifications: CSA Certified, Series: XB IEC, Installation: Single screw mounting system
Installation & Usage
- Verify 35mm DIN rail is properly mounted and secured in electrical enclosure or control panel
- Position universal end stop at desired location on DIN rail adjacent to terminal blocks
- Align mounting mechanism with DIN rail profile ensuring proper engagement
- Insert and tighten single mounting screw to secure end stop in position
- Verify end stop provides proper terminal block positioning and prevents movement
- Test terminal block stability and ensure professional installation appearance
Professional Applications
Ideal for:
- Control Panel Assembly - Professional terminal block organization in industrial control panels and electrical enclosures
- DIN Rail Terminal Systems - End stop positioning for terminal block arrays in automation and control applications
- Electrical Enclosure Organization - Clean professional appearance and terminal block positioning in commercial electrical installations
- Industrial Automation - Terminal block management in PLC panels, motor control centers, and process control systems
- Building Automation Systems - Professional wiring organization in HVAC controls, lighting controls, and facility management panels
- Machine Control Panels - Terminal block positioning in manufacturing equipment and industrial machinery electrical systems
- Power Distribution Panels - Professional terminal organization in electrical distribution and power management applications
- Instrumentation Panels - Clean terminal block arrangement in measurement and monitoring system installations
XB IEC Series Advantage
Eaton's XB IEC series represents advanced DIN rail component engineering with universal compatibility and professional installation features. The series provides reliable terminal block accessories that meet international electrical standards while offering the flexibility and quality that electrical professionals demand for control panel and automation applications.
Why Choose Eaton Quality?
With over a century of electrical power management and industrial control innovation, Eaton delivers the professional quality and reliability that electricians, electrical contractors, and control system integrators trust worldwide. Our CSA certified components ensure compliance with North American safety standards while providing the dependable performance and engineering excellence that professionals require for critical electrical and automation applications.
Manufacturer Resources
Product Specs
- Certifications:
- CSA Certified
- Mounting Method:
- One screw
- Product Height:
- .32 in
- Product Length Depth:
- 1.6 in
- Product Type:
- Universal End Stop
- Product Weight:
- .0375 lb
- Product Width:
- .99 in
- Used With:
- 35 mm rail
- Product Group:
- Electrical
- Department:
- Electrical
- Item Quantity:
- 50
