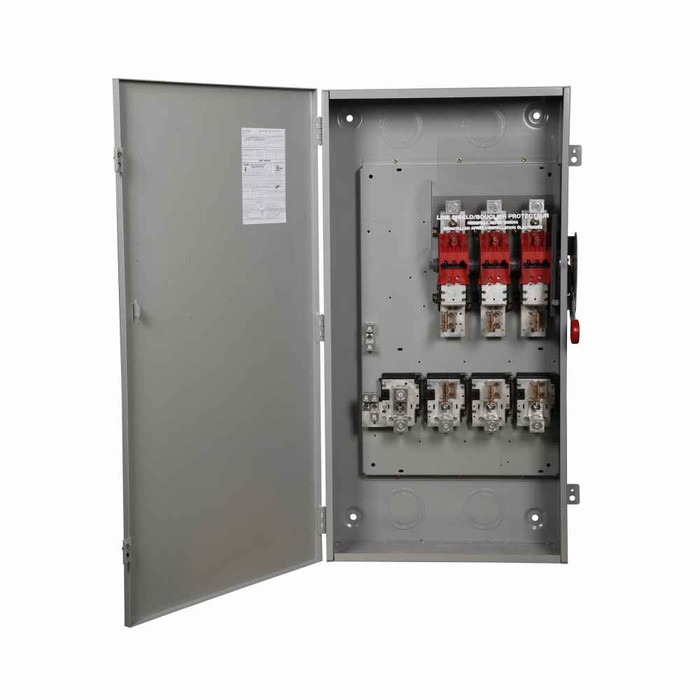

Eaton DH325NGK Enhanced visible blade single-throw safety switch, 400 A, NEMA 1, Painted steel, Class H, Neutral, Three-pole, Four-wire, 240 V, Max Hp: 50, 125/ 50 hp (3PH @Std, TD/250 Vdc), (2)#1/0-(2)300 kcmil or (1)#1/0-(1)750 kcmil Al

Eaton Enhanced Visible Blade Safety Switch 400A NEMA 1 Three-Pole Fusible with Neutral

(No reviews yet) Write a Review

Model: DH325NGK
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$7,490.26
$2,593.23
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Enhanced Visible Blade Safety Switch 400A NEMA 1 Three-Pole Fusible with Neutral

Heavy Duty Fusible Safety Switch for Professional Electrical Applications

The Eaton Enhanced Visible Blade Safety Switch delivers reliable 400A service rating with NEMA 1 painted steel enclosure construction. This three-pole, four-wire fusible safety switch with neutral provides Class H fuse provision and enhanced visible blade design for professional electrical installations requiring 240V operation with maximum 50 hp motor compatibility.

Professional Features & Benefits

  • 400A Service Rating: Handles high-amperage loads with reliable switching capacity for demanding commercial and industrial applications.
  • Enhanced Visible Blade Design: Provides clear visual confirmation of switch position for enhanced safety during maintenance and operation.
  • NEMA 1 Painted Steel Enclosure: Durable construction protects internal components from environmental factors in indoor installations.
  • Class H Fuse Provision: Accommodates standard Class H fuses for reliable overcurrent protection and easy maintenance.
  • Three-Pole with Neutral Configuration: Four-wire design supports balanced three-phase loads with neutral conductor for versatile applications.
  • UL Listed Certification: Meets rigorous safety standards for professional electrical installations and code compliance.
  • Heavy Duty Construction: Built for long-term reliability in demanding electrical service applications.

Technical Specifications

  • Amperage Rating: 400A
  • Certifications: UL Listed
  • Department: Electrical
  • Enclosure: NEMA 1
  • Enclosure Material: Painted steel
  • Fuse Class Provision: Class H
  • Fuse Configuration: Fusible with neutral
  • Hp Rating Max: 50, 125/ 50 hp (3PH @Std, TD/250 Vdc)
  • Number Of Poles: Three-pole
  • Number Of Wires: 4
  • Product Category: Heavy Duty, Fusible with neutral
  • Product Details: Heavy duty fusible safety switch
  • Product Group: Electrical
  • Product Height: 10.5 in
  • Product Length Depth: 45.75 in
  • Product Weight: 108 lb
  • Product Width: 25 in
  • Voltage Rating: 240V

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Commercial Building Electrical Distribution
  • Industrial Motor Control Centers
  • Manufacturing Facility Power Distribution
  • Heavy Equipment Disconnect Service
  • Three-Phase Load Switching Applications
  • Maintenance Disconnect for Large Motors
  • Professional Electrical Service Panels

Why Choose Eaton Quality?

Eaton safety switches provide proven reliability with UL Listed certification and heavy duty construction designed for professional electrical applications. The painted steel NEMA 1 enclosure and enhanced visible blade design ensure long-term performance and safety in demanding service environments.

Manufacturer Resources

Product Specs

Amperage Rating:
400A
Certifications:
UL Listed
Enclosure:
NEMA 1
Enclosure Material:
Painted steel
Fuse Class Provision:
Class H
Fuse Configuration:
Fusible with neutral
Hp Rating Max:
50, 125/ 50 hp (3PH @Std, TD/250 Vdc)
Number Of Poles:
Three-pole
Number Of Wires:
4
Product Category:
Heavy Duty, Fusible with neutral
Product Height:
10.5 in
Product Length Depth:
45.75 in
Product Weight:
108 lb
Product Width:
25 in
Voltage Rating:
240V
Product Group:
Electrical
Department:
Electrical
Product Details:
Heavy duty fusible safety switch
