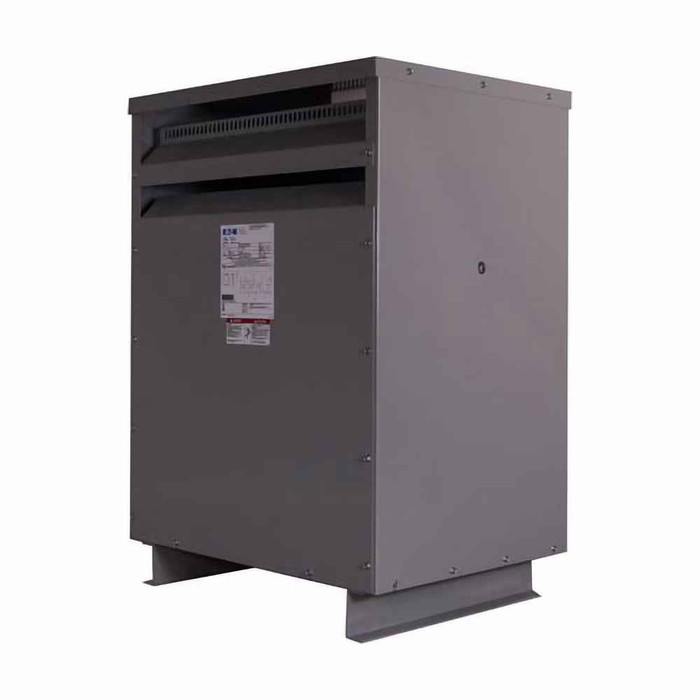

Eaton General purpose ventilated transformer, Marine-duty, DT-3 (3-phase), PV 480V, Taps: 2 at +2.5% /4 at -2.5%, SV 208Y/120V, 115°C rise, 112.5 kVA, Copper windings, EE, TR
Manufacturer Resources
Product Specs
- Catalog Notes:
- Certified Test Report of Standard Production Test (on CMI style), NEMA TP-1 efficient
- Certifications:
- UL Listed
- Coil Material:
- Copper
- Enclosure:
- NEMA 2
- Frame:
- 916A
- Frequency Rating:
- 60 Hz
- Phase:
- Three-phase
- Primary Voltage:
- 480 V
- Product Height:
- 48.56 in
- Product Length Depth:
- 23.42 in
- Product Weight:
- 814 lb
- Product Width:
- 28.22 in
- Secondary Voltage:
- 208 Y/120 V
- Tap Size:
- 2 at +2.5% FCAN, 4 at -2.5% FCBN
- Temperature Rise:
- 115 °C rise
- Type:
- Marine duty ventilated transformer
- Volt Ampere Rating:
- 112.5 kVA
- Weathershield:
- WS19
- Wiring Connection:
- 280B112M
