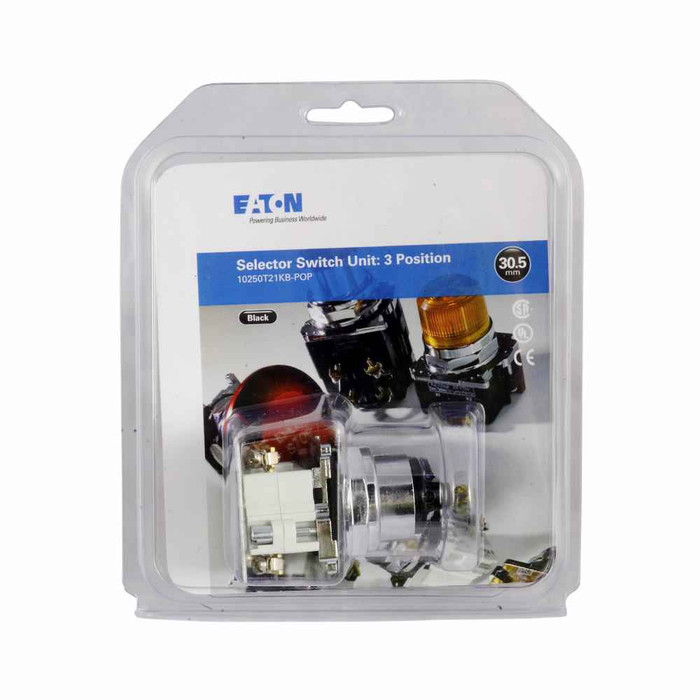

Eaton 10250T Heavy-Duty Selector Switch 30.5mm Three-Position Maintained with Black Knob Actuator

Eaton 10250T Heavy-Duty Selector Switch 30.5mm Three-Position Maintained with Black Knob Actuator

Professional Control Solution for Industrial Applications

The Eaton 10250T Heavy-Duty Selector Switch delivers reliable three-position maintained control with a 30.5mm design and 60� throw operation. This non-illuminated selector switch features a black knob actuator and 2NO contact configuration, providing versatile control capabilities with comprehensive NEMA enclosure ratings for demanding industrial environments.

Professional Features & Benefits

• 30.5mm Heavy-Duty Design: Compact yet robust construction ensures reliable performance in space-constrained applications while maintaining industrial-grade durability.
• Three-Position Maintained Operation: Provides stable control positions with maintained contact states for consistent system operation and reliable switching control.
• Comprehensive NEMA Ratings: NEMA 3, 3R, 4, 4X, 12, and 13 ratings deliver protection against dust, water, corrosion, and environmental hazards across diverse installation conditions.
• 60� Throw Operation: Precise angular positioning ensures clear position indication and positive switching action for accurate control feedback.
• 2NO Contact Configuration: Dual normally open contacts provide flexible wiring options and reliable electrical switching for various control circuit requirements.
• CSA Certified Quality: CSA certification and CE marking ensure compliance with North American and international safety standards for professional installations.
• Black Knob Actuator: Durable black actuator provides clear visual contrast and ergonomic operation for easy identification and control in industrial environments.

Technical Specifications

• Actuator: Knob
• Actuator Color: Black
• Certifications: CSA Certified
• Compliances: CE Marked
• Contact Configuration: 2 NO
• Department: Electrical
• Illumination: Non-illuminated
• Number Of Positions: 3
• Operating Mode: Maintained
• Product Details: 30.5 mm, Heavy-Duty
• Product Group: Electrical
• Product Height: 3 in
• Product Length Depth: 7 in
• Product Weight: .1 lb
• Product Width: 5 in
• Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Series: 10250T
• Throw Type: 60 �

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Control Panels and Machine Operation
• Manufacturing Equipment and Process Control
• Motor Control Centers and Electrical Distribution
• HVAC System Control and Building Automation
• Material Handling and Conveyor Systems
• Water Treatment and Pumping Stations
• Emergency Systems and Safety Controls

Why Choose Eaton Quality?

Eaton delivers proven reliability with CSA certification and comprehensive NEMA enclosure ratings that ensure dependable performance across demanding industrial applications. The heavy-duty 30.5mm design and maintained operation provide long-term durability and consistent control performance for professional electrical installations.
