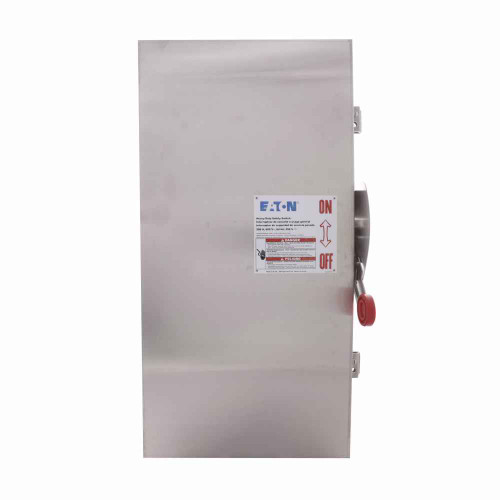

Eaton DH264FCK Heavy duty single-throw fused safety switch, 200 A, NEMA 4X, Non-metallic, KRYDON, Class H, Fusible without neutral, Two-pole, Two-wire, 600 V, Max Hp: 50, 50 hp/50 hp (1PH @480,600 V TD/600 Vdc), #6-300 kcmil Cu/Al

Name: Eaton DH264FCK Heavy duty single-throw fused safety switch, 200 A, NEMA 4X, Non-metallic, KRYDON, Class H, Fusible without neutral, Two-pole, Two-wire, 600 V, Max Hp: 50, 50 hp/50 hp (1PH @480,600 V TD/600 Vdc), #6-300 kcmil Cu/Al
Brand: Eaton
SKU: DH264FCK
Price: 24006.57 USD
Availability: InStock

(No reviews yet) Write a Review

Model: DH264FCK

Current Stock:

In Stock (leaves warehouse same day if ordered before 3pm ET)

$24,056.57

$24,006.57

FREE SHIPPING

In Stock (leaves warehouse same day if ordered before 3pm ET)

Adding to cart… The item has been added

Free Shipping on orders over $99

We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.

Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards

Free Keying on all locks

Product Overview

Eaton Heavy duty single-throw fused safety switch, 200 A, NEMA 4X, Non-metallic, KRYDON, Class H, Fusible without neutral, Two-pole, Two-wire, 600 V, Max Hp: 50, 50 hp/50 hp (1PH @480,600 V TD/600 Vdc), #6-300 kcmil Cu/Al

Manufacturer Resources

Product Specs

Amperage Rating:: 200A
Certifications:: UL Listed
Enclosure:: NEMA 4X
Enclosure Material:: Non-metallic, KRYDON
Fuse Class Provision:: Class H
Fuse Configuration:: Fusible without neutral
Hp Rating Max:: 50, 50 hp/50 hp (1PH @480,600 V TD/600 Vdc)
Number Of Poles:: Two-pole
Number Of Wires:: 2
Product Category:: Heavy Duty, Harsh Environment - EnviroLine
Product Height:: 27.25 in
Product Length Depth:: 16.46 in
Product Weight:: 77 lb
Product Width:: 24.25 in
Type:: Heavy duty fusible safety switch
Voltage Rating:: 600 V
Wire Size:: #6 AWG-300 kcmil Cu/Al

Eaton DH264FCK Heavy duty single-throw fused safety switch, 200 A, NEMA 4X, Non-metallic, KRYDON, Class H, Fusible without neutral, Two-pole, Two-wire, 600 V, Max Hp: 50, 50 hp/50 hp (1PH @480,600 V TD/600 Vdc), #6-300 kcmil Cu/Al
