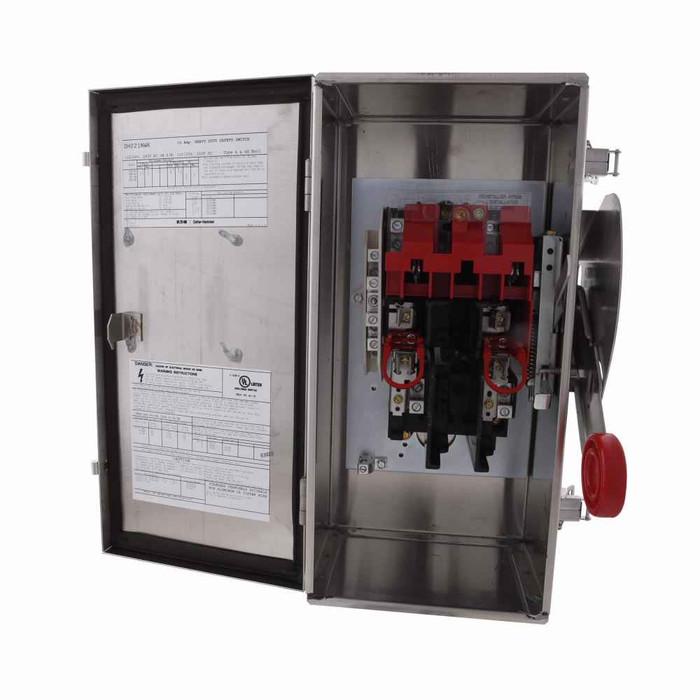

Eaton Heavy duty single-throw fused safety switch, 60 A, NEMA 4X, Non-metallic, KRYDON, Class H, Fusible without neutral, Two-pole, Two-wire, 240 V, Max Hp: 3, 7.5 hp/10, 15 hp/10 hp (1,3PH @ Std fuse/time delay/250 Vdc), #14-#2 Cu/Al
Manufacturer Resources
Product Specs
- Amperage Rating:
- 60A
- Certifications:
- UL Listed
- Enclosure:
- NEMA 4X
- Enclosure Material:
- Non-metallic, KRYDON
- Fuse Class Provision:
- Class H
- Fuse Configuration:
- Fusible without neutral
- Hp Rating Max:
- 3, 7.5 hp/10, 15 hp/10 hp (1,3PH @ Std fuse/time delay/250 Vdc)
- Number Of Poles:
- Two-pole
- Number Of Wires:
- 2
- Product Category:
- Heavy Duty, Harsh Environment - EnviroLine
- Product Height:
- 19.25 in
- Product Length Depth:
- 15.46 in
- Product Weight:
- 32 lb
- Product Width:
- 10.25 in
- Special Features:
- EnviroLine stainless steel enclosure and mechanism
- Type:
- Heavy duty fusible safety switch
- Voltage Rating:
- 240V
