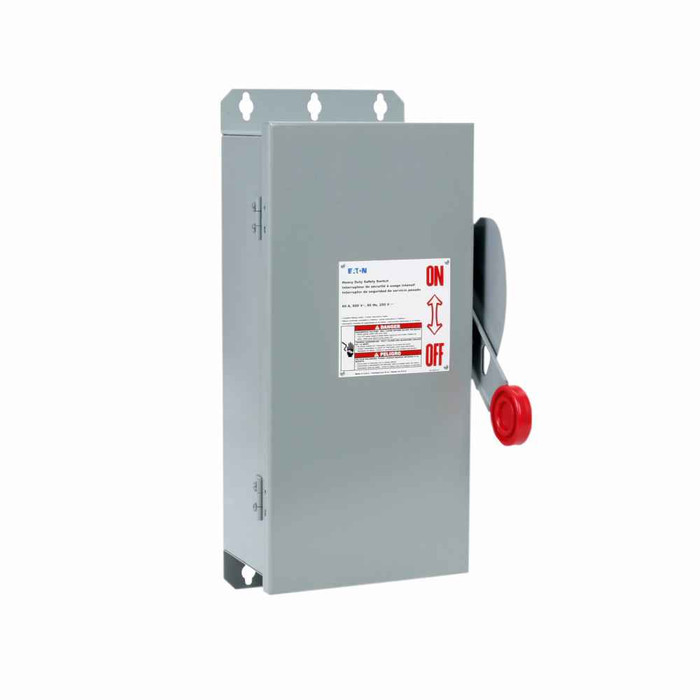

Eaton Heavy duty single-throw fused safety switch, Mill-duty, 30 A, NEMA 12/3R, Painted galvanized steel, Class H, Fusible without neutral, Two-pole, Two-wire, 600 V, Max Hp: 7.5, 10 hp/15 hp (1PH @480,600 V TD/600 Vdc), #14-#2 Cu/Al
Manufacturer Resources
Product Specs
- Amperage Rating:
- 30A
- Catalog Notes:
- Suitable for service entrance use with a neutral or ground lug kit installed. Can be field modified to meetNEMA 3R rainproof requirements when a factory provided drain hole is opened.
- Certifications:
- UL Listed
- Enclosure:
- NEMA 12, NEMA 3R
- Enclosure Material:
- Painted galvanized steel
- Fuse Class Provision:
- Class H
- Fuse Configuration:
- Fusible without neutral
- Hp Rating Max:
- 7.5, 10 hp/15 hp (1PH @480,600 V TD/600 Vdc)
- Number Of Poles:
- Two-pole
- Number Of Wires:
- 2
- Product Category:
- Heavy Duty, Fusible without neutral
- Product Height:
- 24.95 in
- Product Length Depth:
- 10.22 in
- Product Weight:
- 19 lb
- Product Width:
- 10.76 in
- Special Features:
- Mill-duty
- Type:
- Heavy duty fusible safety switch
- Voltage Rating:
- 600 V
- Product Group:
- Electrical
