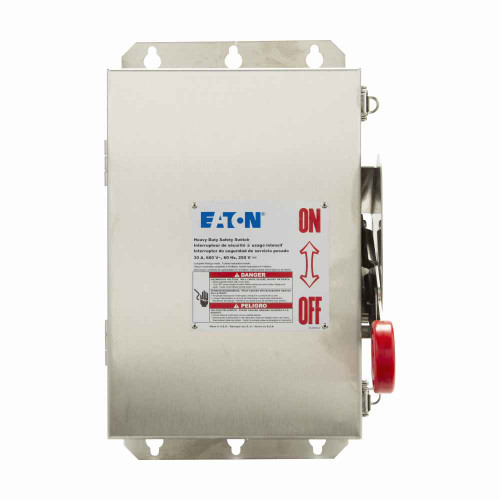

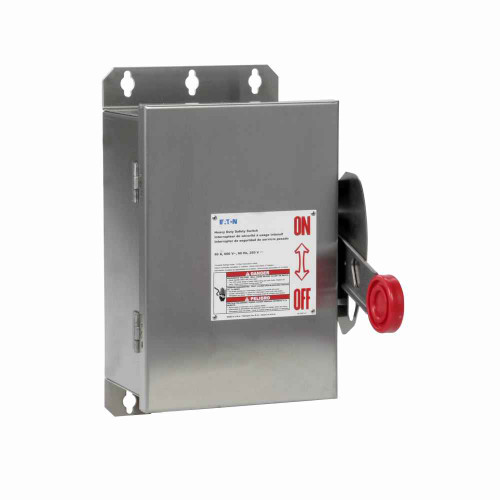

Eaton Heavy Duty Safety Switch 60A Three-Pole Single-Throw Non-Fusible NEMA 4X Stainless Steel

Eaton Heavy Duty Safety Switch 60A Three-Pole Single-Throw Non-Fusible NEMA 4X Stainless Steel

Professional Heavy Duty Electrical Disconnect Switch

The Eaton Heavy Duty Safety Switch delivers exceptional electrical power management and control performance for demanding commercial and industrial applications. This 60A three-pole single-throw non-fusible safety switch provides reliable electrical isolation and disconnect protection designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Heavy Duty Electrical Performance

• 60A Three-Pole Configuration - Provides robust current handling capacity with three-pole design for comprehensive electrical isolation and motor control applications
• 600V Voltage Rating - Handles high voltage applications with reliable performance across commercial and industrial electrical systems
• Single-Throw Operation - Simple and reliable switching mechanism for positive electrical disconnect and isolation control
• Non-Fusible Design - Eliminates fuse replacement maintenance while providing dependable switching and isolation functionality

NEMA 4X Environmental Protection

• Stainless Steel Construction - Superior corrosion resistance and durability for harsh environmental conditions and outdoor installations
• NEMA 4X Enclosure Rating - Provides protection against water ingress, dust, corrosion, and ice formation for reliable outdoor performance
• Heavy Duty Design - Engineered for demanding industrial applications with robust construction and long service life

Professional Installation & Safety

• UL Listed Certification - Meets rigorous safety standards for professional electrical installations and code compliance
• Service Entrance Suitable - Approved for service entrance use with proper neutral or ground lug kit installation
• Three-Wire Configuration - Accommodates standard three-wire electrical systems for versatile installation applications

Technical Specifications

Amperage Rating: 60A, Voltage Rating: 600V, Number of Poles: Three-pole, Configuration: Single-throw, Fuse Type: Non-fusible, Number of Wires: 3, Enclosure: NEMA 4X, Enclosure Material: Stainless steel, Horsepower Rating: 10 HP at 240V AC 1-Phase, 20 HP at 480V AC 1-Phase, 25 HP at 600V AC 1-Phase, 20 HP at 240V AC 3-Phase, 50 HP at 480V AC 3-Phase, 60 HP at 600V AC 3-Phase, 10 HP at 250V DC, Dimensions: 19.08" H x 10.22" D x 7.73" W, Weight: 14 lbs, Certifications: UL Listed, Service Entrance: Suitable with neutral or ground lug kit

Installation & Usage

1. Verify electrical system is de-energized and follow proper lockout/tagout procedures before installation
2. Mount safety switch securely to appropriate surface using proper mounting hardware for NEMA 4X applications
3. Connect incoming and outgoing conductors to appropriate terminals following NEC guidelines and local electrical codes
4. Install neutral or ground lug kit if using for service entrance applications as specified in catalog notes
5. Verify proper grounding and bonding connections for electrical safety and code compliance
6. Test switch operation and verify proper electrical isolation before energizing the system

Professional Applications

Ideal for:

• Industrial Motor Control - Heavy duty motor disconnect and isolation for manufacturing equipment and industrial machinery
• Commercial HVAC Systems - Reliable disconnect switching for rooftop units, chillers, and commercial heating and cooling equipment
• Outdoor Electrical Equipment - Weather-resistant switching for outdoor lighting systems, pumps, and electrical equipment
• Service Entrance Applications - Main electrical service disconnect with proper neutral or ground lug kit installation
• Manufacturing Facilities - Equipment isolation and maintenance disconnect for production machinery and industrial processes
• Water Treatment Plants - Corrosion-resistant switching for pumps, motors, and treatment equipment in harsh environments
• Food Processing Equipment - Stainless steel construction ideal for sanitary applications requiring frequent washdown
• Marine and Coastal Applications - Superior corrosion resistance for electrical systems in salt air and marine environments

Heavy Duty Stainless Steel Advantage

The stainless steel construction provides exceptional corrosion resistance and durability for demanding environmental conditions. Combined with NEMA 4X protection, this safety switch delivers reliable performance in outdoor installations, coastal environments, food processing facilities, and other applications where standard steel enclosures would deteriorate. The heavy duty design ensures long service life and dependable operation in the most challenging industrial applications.

Why Choose Eaton Quality?

With over a century of electrical power management innovation, Eaton delivers the reliability and performance that electrical professionals demand. Our UL Listed safety switches meet the highest safety standards while providing the robust construction and dependable operation that electricians, electrical contractors, and facility managers trust. From commercial buildings to heavy industrial applications, Eaton safety switches deliver proven performance backed by comprehensive technical support and the industry's most trusted warranty coverage.
