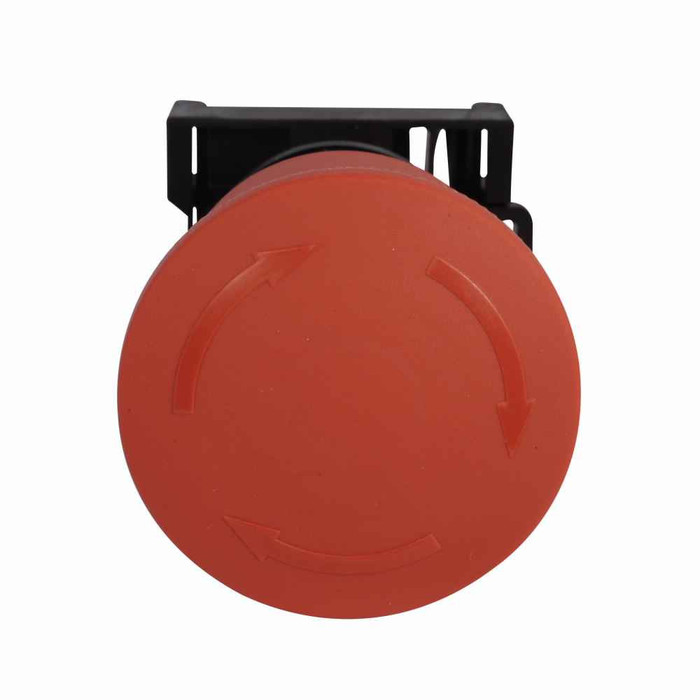

Eaton M22 Modular 22.5mm Twist-to-Release Emergency Stop Operator
The Eaton M22 Modular 22.5mm Twist-to-Release Emergency Stop Operator delivers dependable safety control for industrial machinery, featuring a rugged 22.5mm modular design rated IP67, IP69K, NEMA 4X, and NEMA 13 for demanding plant-floor environments. Engineered for 100,000 operating cycles, this red emergency stop operator integrates with the broader Eaton M22 series and is available in illuminated and non-illuminated actuator configurations to match your control panel requirements.
Key Features
- 22.5mm Modular Design: Enables flexible integration with M22 series components and standardized control panel configurations.
- Twist-to-Release Actuation: Provides secure emergency stop activation that helps prevent accidental reset for enhanced safety protocols.
- IP67/IP69K Environmental Rating: Delivers superior protection against dust ingress and high-pressure water jets for reliable operation in harsh industrial conditions.
- NEMA 4X & NEMA 13 Compliance: Ensures corrosion resistance and protection against oil/coolant exposure for versatile industrial mounting applications.
- 100,000 Operating Cycles: Engineered for long-term reliability and reduced maintenance requirements in high-frequency safety applications.
- Button Color: Red finish for immediate visual recognition as an emergency stop control.
- CCC & CE Marked: Meets international safety standards for global industrial compliance and regulatory requirements.
Certifications & Compliance
- CCC Marked
- CE Marked
- IP67 / IP69K Rated
- NEMA 4X / NEMA 13 Rated
Technical Specifications
- Product Type: Pushbutton Operator
- Series: M22
- Button Color: Red
- Environmental Rating: IP67, IP69K, NEMA 4X, NEMA 13
- Operating Cycles: 100,000
- Product Height: 3 in
- Product Length/Depth: 2.5 in
- Product Width: 3.5 in
- Product Weight: .2 lb
Typical Applications
- Manufacturing Equipment Emergency Stops
- Industrial Machinery Safety Controls
- Process Control Panel Integration
- Automated Production Line Safety
- Material Handling System Controls
- Food Processing Equipment Safety
Why Eaton?
Eaton M22 series operators provide proven reliability with CCC and CE marked certifications ensuring compliance with international safety standards. The robust IP67, IP69K, NEMA 4X, and NEMA 13 environmental ratings combined with 100,000-cycle durability deliver long-term, low-maintenance performance for demanding industrial safety applications, backed by Eaton's commitment to safety and quality engineering.
Manufacturer Resources
Product Specs
- Product Type:
- Emergency Stop Operator
- Series:
- M22
- Product Color:
- Red
- Configuration:
- Twist-to-Release
- Standards:
- CE Marked
- Department:
- Electrical
- Product Group:
- Motor Control & Automation
- Product Subgroup:
- Push Buttons & Pilot Devices
Eaton M22-PVT45P – Frequently Asked Questions
1) Will the Eaton M22 emergency stop operator fit a standard 22.5mm panel cutout?
Yes. The M22 emergency stop operator is built on Eaton's 22.5mm modular platform, so it drops into the standard 22.5mm round panel hole used across the M22 series and mixes with other M22 components in the same control panel row.
2) Is this a twist-to-release or pull-to-release E-stop?
Twist-to-release. The red mushroom actuator latches when struck and is reset by twisting it, which keeps it from being bumped back into the run position by accident. If your machine's safety procedure calls for a pull-release button, this is not the right actuator.
3) Can this Eaton E-stop handle washdown in a food plant?
It is rated IP67 and IP69K along with NEMA 4X and NEMA 13, so it handles dust, temporary immersion, high pressure and high temperature washdown jets, corrosive environments and oil or coolant exposure. Food processing equipment safety is one of the listed applications.
4) Does the M22 E-stop come with contact blocks, or do I order those separately?
What you are ordering here is the operator, the red actuator head itself. The M22 line is modular, meaning the actuator, mounting flange and contact blocks are separate pieces, so plan on specifying the NC safety contact blocks your circuit needs alongside it. For the illuminated versions you also need the matching M22 LED element.
5) What is the difference between the knob-style M22-PVT-K02 and the standard mushroom actuators?
The M22-PVT-K02 is the knob version of the illuminated twist-release E-stop, while M22-PVLT45P is the illuminated push-button style and M22-PVT45P the standard non-illuminated actuator. All three are twist-to-release red operators on the same 22.5mm mount, so the choice is about the grip and look on the panel, not about how the safety function behaves.
6) Is an illuminated emergency stop button worth it over the plain one?
Illumination gives the operator a lit indication that the stop is active, which helps on large lines or in dim plant areas where an operator has to find which station was hit. If the panel is well lit and the button is at arm's length, the non-illuminated M22-PVT45P does the same mechanical job with no lamp element to wire or replace.
7) Is the Eaton M22 E-stop acceptable for machinery shipping to Europe or China?
It is CE marked and CCC marked, so it meets those international marking requirements for equipment destined for the European and Chinese markets.
8) How many cycles is the Eaton M22 emergency stop rated for?
100,000 operating cycles. For a true emergency stop that is normally exercised only during function testing, that is well beyond a typical service life, so the limiting factor is usually the contact blocks rather than the actuator.
How fast can I get the Eaton M22-PVT45P delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Eaton M22-PVT45P come with a warranty?
Absolutely. The Eaton M22-PVT45P is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Eaton M22-PVT45P?
