Eaton M22 Modular Pushbutton DIN Rail Mounting Adapter, IP66/NEMA 4X/13
Model: EAT-M22-IVS
Eaton M22 Modular Pushbutton DIN Rail Mounting Adapter, IP66/NEMA 4X/13The Eaton M22 Modular Pushbutton DIN Rail Mounting Adapter provides a secure, standardized way to mount M22 series 22.5 mm pilot...
Eaton
$11.77
Eaton M22 Modular Pushbutton Mounting Adapter, IP20

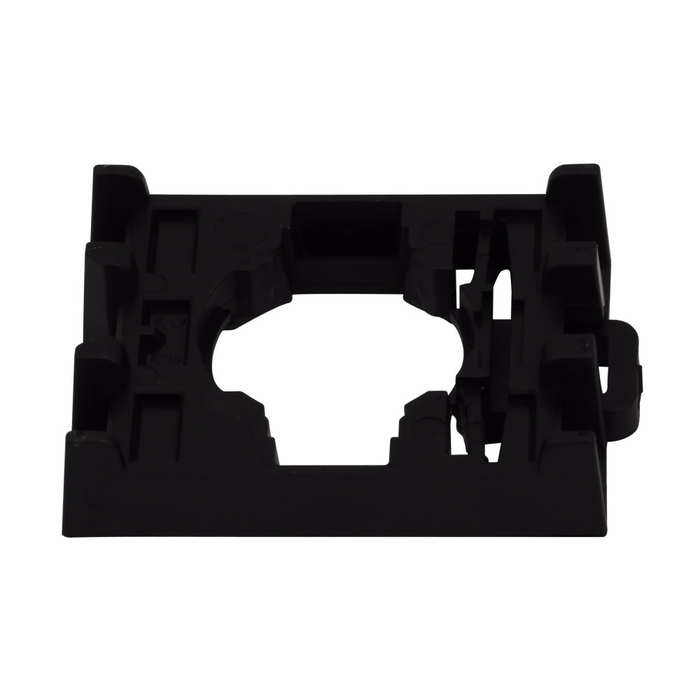

The Eaton M22 Modular Pushbutton Mounting Adapter is engineered to mount 22.5 mm M22 series pilot devices into panels and enclosures where standard hole patterns need to be adapted for M22 modular hardware. Rated IP20 for enclosed panel use and CE Marked for regulatory compliance, this adapter is a core accessory within Eaton's M22 Modular Pushbutton platform, letting panel builders integrate M22 pushbuttons, selector switches, and indicators cleanly into control stations and operator interfaces.
Key Features
- Trade Size: Sized for 22.5 mm M22 series pushbuttons and pilot devices for a precise, secure fit.
- Mounting Method: Adapted mounting method simplifies retrofitting M22 modular devices into existing panel cutouts.
- Type: Purpose-built Mounting Adapter designed specifically for the Eaton M22 Series pilot device line.
- Environmental Rating: IP20 rated for enclosed indoor panel and control station applications.
- Compact Footprint: Measures 1.18 in wide by 1.61 in high by .3 in deep, preserving panel space in dense control layouts.
- Button Color: Configured for Black button applications within the M22 modular lineup.
- Compliance: CE Marked and CCC Marked for use in globally compliant control panel builds.
Certifications & Compliance
- CE Marked
- CCC Marked
- IP20 Environmental Rating
Technical Specifications
- Series: M22
- Product Type: Pushbutton
- Size: 22.5 mm
- Type: Mounting Adapter
- Mounting Method: Adapted
- Product Width: 1.18 in
- Product Height: 1.61 in
- Product Length/Depth: .3 in
- Button Color: Black
- Environmental Rating: IP20
- Compliances: CE Marked
- Certifications: CCC Marked
- Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Typical Applications
- Industrial Control Panels and Operator Stations
- Machine Builder and OEM Control Enclosures
- Retrofitting Existing Panels with M22 Modular Devices
- Panel Builder Integration of Pushbuttons, Selectors, and Indicators
- Process Control and Automation Equipment
Why Eaton?
Eaton's M22 Modular Pushbutton platform is built for panel builders who need consistent, code-compliant hardware across control stations. This CE Marked and CCC Marked mounting adapter is backed by Eaton's standard product warranty, giving electrical professionals confidence that M22 series components will fit and perform reliably in enclosed IP20-rated panel environments. Choosing genuine Eaton M22 accessories ensures compatibility across the full M22 pilot device line for dependable, long-term panel construction.
Manufacturer Resources
Product Specs
- Product Width:
- 1.18 in
- Mounting Method:
- Adapted
- Series:
- M22
- Product Size:
- 22.5 mm
- Product Length/Depth:
- .3 in
- Button color:
- Black
- Compliances:
- CE Marked
- Product Height:
- 1.61 in
- Product Type:
- Mounting Adapter
- Environmental rating:
- IP20
- Certifications:
- CCC Marked
- Department:
- Electrical
- Standards:
- CE Marked
- Product Group:
- Motor Control & Automation
- Product Subgroup:
- Push Buttons & Pilot Devices
Eaton M22-A – Frequently Asked Questions
1) Will the Eaton M22-A adapter fit a standard 22.5 mm panel cutout?
Yes. The M22-A is sized for the 22.5 mm M22 series hole, which is the standard cutout for Eaton's M22 pilot devices. It lets you mount M22 pushbuttons, selector switches and indicators into a panel where the existing hole pattern needs adapting to M22 modular hardware.
2) Can I use the Eaton M22-A adapter in a washdown or outdoor enclosure?
No. The M22-A carries an IP20 rating, which is finger protection only with no water ingress protection. Keep it inside an enclosed indoor control panel or operator station. For a wet or outdoor location you need the enclosure itself to provide the sealing, and the device mounted in it rated accordingly.
3) Does the Eaton M22-A adapter come with the pushbutton, or do I order the operator separately?
It is the mounting adapter only. The M22-A adapts the panel opening for M22 modular hardware; the operator (pushbutton, selector switch or indicator), along with the contact or LED blocks behind it, is ordered separately from the M22 line.
4) I am retrofitting an old control station with M22 devices. Does this adapter save me from re-drilling the door?
That is exactly what it is for. The mounting method is adapted, meaning the M22-A lets M22 modular devices go into an existing panel cutout instead of cutting new 22.5 mm holes in the door. Confirm your existing opening before you commit, since the adapter works to the 22.5 mm M22 standard on the device side.
5) What is the exact part number for the Eaton M22 mounting adapter?
Order it as Eaton M22-A, catalogued under the M22 modular pushbutton series. There is one configuration, so there are no finish or size options to specify.
6) Is the Eaton M22-A acceptable for control panels being shipped to Europe or China?
It is CE Marked and CCC Marked, so it covers the two marks panel builders are usually asked for on export machine builds into the EU and China. Those are the marks stated for this adapter; the complete panel still has to be assessed as a whole.
7) Why is the M22 mounting adapter listed with a black button color?
The black button color attribute ties the adapter to the black-operator configuration within the M22 modular lineup. It is a catalog attribute of the adapter as supplied, not a colored operator you can see once the device is assembled in the panel.
