Eaton Aluminum Bus Meter Pack,...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$3,659.53

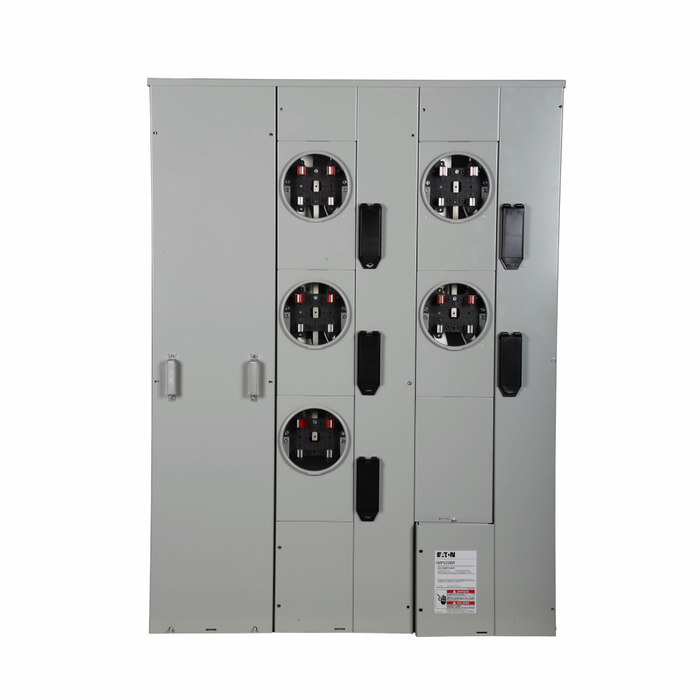

Eaton Aluminum Bus Meter Pack, NEMA 3R, 5-Socket

Eaton Aluminum Bus Meter Pack, NEMA 3R, 5-Socket

(No reviews yet) Write a Review

Model: 1MP5206R

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,659.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Aluminum Bus Meter Pack, NEMA 3R

The Eaton Aluminum Bus Meter Pack is a ringless-style multi-socket metering assembly built for single-phase in, single-phase out residential and light commercial service. This configuration features an aluminum bus rated at 600A, a 5-socket layout, a 120/240V voltage rating, and a 125A amperage rating per socket, all housed in a NEMA 3R enclosure suitable for outdoor and wet-location installation. With no bypass configuration and UL Listed construction, this meter pack is engineered for reliable utility-grade metering on multi-tenant and multi-meter electrical services.

Key Features

  • Bus Rating: Aluminum bus rated 600A for durable, high-capacity current distribution across all sockets.
  • Durable Construction: Aluminum bus material provides reliable conductivity for multi-socket metering applications.
  • Socket Configuration: 5 individual metering sockets support single-phase in, single-phase out service to multiple tenants.
  • Voltage & Amperage Rating: 120/240V voltage rating with 125A amperage rating per socket for standard residential and light commercial loads.
  • No Bypass: Non-bypass configuration simplifies the metering assembly for straightforward installation.
  • Ringless Security: Ringless meter socket design for a streamlined, tamper-resistant metering interface.
  • NEMA 3R Enclosure: NEMA 3R rated enclosure for outdoor and wet-location installations.
  • Secondary Circuit Breaker Compatibility: Compatible with Eaton CCV2_X, CCVH2_X, CVS2_XMM, CV2_XMM, and CVH2_XMM secondary circuit breakers.

Certifications & Compliance

  • UL Listed
  • NEMA 3R Rated Enclosure
  • Utility Approved (Arizona Public Service Company)

Technical Specifications

  • Number of sockets: 5
  • Voltage rating: 120/240V
  • Amperage Rating: 125A
  • Bus Rating: 600A
  • Bus material: Aluminum
  • Enclosure: NEMA 3R
  • Security: Ringless
  • Bypass: None
  • Phase: Single-phase in, single-phase out
  • Product Width: 2.01 in
  • Product Length/Depth: 25.48 in
  • Product Height: 42.68 in
  • Secondary circuit breaker: CCV2_X, CCVH2_X, CVS2_XMM, CV2_XMM, CVH2_XMM

Typical Applications

  • Multi-Tenant Residential Metering
  • Light Commercial Electrical Service Entrances
  • Outdoor and Wet-Location Meter Bank Installations
  • Utility-Metered Multi-Family Housing
  • New Construction and Service Upgrade Projects

Why Eaton?

Eaton builds its meter packs with durable aluminum bus construction, UL Listed components, and NEMA 3R rated enclosures to deliver dependable, code-compliant metering for demanding multi-socket electrical services. The ringless, non-bypass configuration and utility-approved design make this Eaton meter pack a dependable choice for professional electricians and contractors.

Manufacturer Resources

Product Specs

Product Width:
2.01 in
Voltage Rating:
120/240V
Amperage Rating:
125A
Product Length/Depth:
25.48 in
Number of sockets:
5
Product Height:
42.68 in
Phase:
Single-phase in, single-phase out
Secondary circuit breaker:
CCV2_X, CCVH2_X, CVS2_XMM, CV2_XMM, CVH2_XMM
Bus Rating:
800 A
Security:
Ringless
Bus material:
Aluminum
Utility approvals:
AZ : Arizona Public Service Company
Configuration:
NEMA 3R Enclosure
Certifications:
UL Listed
Product Type:
Meter Pack
Department:
Electrical
Product Material:
Aluminum
Listing:
UL Listed
Product Group:
Wiring Devices
