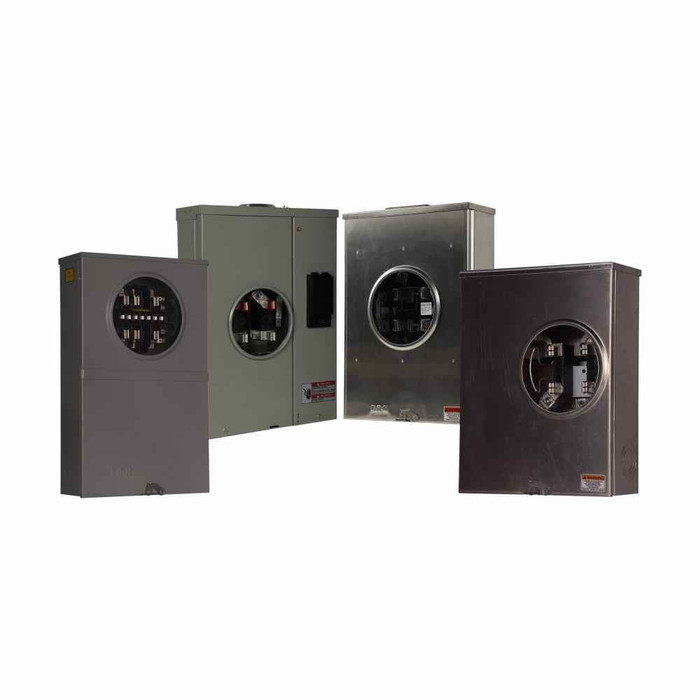

Eaton Meter Socket Instrument Rated 20A 13-Jaw 600V Factory Wired Test Switch

Eaton 13-Jaw Instrument Rated Meter Socket 20A 600V with Factory Wired Test Switch

(No reviews yet) Write a Review

Model: USTS131A301CH

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,542.07
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton 13-Jaw Instrument Rated Meter Socket 20A 600V with Factory Wired Test Switch

Professional Instrument Rated Metering Solution

The Eaton 13-Jaw Instrument Rated Meter Socket delivers professional-grade metering capabilities with 20A service rating and 600V voltage capacity. This UL Listed meter socket features factory wired test switch functionality and instrument rated design for reliable electrical service measurement and monitoring applications.

Professional Features & Benefits

  • 20A Amperage Rating: Provides adequate capacity for residential and light commercial metering applications with reliable current handling.
  • 600V Voltage Rating: Supports higher voltage applications with professional-grade electrical isolation and safety performance.
  • 13-Jaw Configuration: Delivers comprehensive metering connectivity with multiple jaw points for versatile instrument and meter compatibility.
  • Factory Wired Test Switch: Includes pre-configured test switching capability for simplified installation and maintenance procedures.
  • Instrument Rated Design: Engineered specifically for precision metering applications with enhanced accuracy and reliability standards.
  • UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations and code compliance.
  • Utility Approved: Connecticut Eversource approved for regional utility compatibility and installation acceptance.

Technical Specifications

  • Accessories: Factory wired test switch
  • Amperage Rating: 20A
  • Catalog Notes: Iowa, Northeast approved
  • Certifications: UL Listed
  • Number Of Jaws: 13-jaw
  • Number Of Sockets: 1
  • Product Details: Instrument rated socket
  • Product Height: 20 in
  • Product Length Depth: 4.36 in
  • Product Weight: 27 lb
  • Product Width: 12 in
  • Special Features: Instrument rated
  • Utility Approvals: CT : Eversource (Connecticut Light and Power Co./Nstar/PSC New Hampshire/Western Mass Electric)
  • Voltage Rating: 600 V

Professional Applications

  • Residential Metering Systems
  • Light Commercial Facilities
  • Multi-Unit Properties
  • Professional Offices
  • Retail Establishments
  • Utility Service Points
  • Instrument Testing Applications

Why Choose Eaton Quality?

Eaton meter sockets deliver proven reliability with UL Listed certification and utility approval for professional electrical installations. The robust 27 lb construction and comprehensive 20 in x 12 in x 4.36 in dimensions ensure durable performance in demanding metering applications.

Manufacturer Resources

Product Specs

Accessories:
Factory wired test switch
Amperage Rating:
20A
Catalog Notes:
Iowa, Northeast approved
Certifications:
UL Listed
Number Of Jaws:
13-jaw
Number of sockets:
1
Product Details:
Instrument rated socket
Product Height:
20 in
Product Length Depth:
4.36 in
Product Weight:
27 lb
Product Width:
12 in
Special Features:
Instrument rated
Voltage Rating:
600V
Department:
Electrical
Product Group:
Power Distribution
Product Type:
Meter
Product Subgroup:
Metering & Meter Sockets
Product Length:
4.36 in

Eaton USTS131A301CH – Frequently Asked Questions

1) Does the Eaton USTS131A301CH 13-jaw meter socket carry 20A of load current, or is it only for instrument metering?
The 20A rating on the Eaton USTS131A301CH is an instrument rating, not a service entrance rating. It is an instrument rated socket, so the current comes through current transformers and the socket sees only the CT secondary current, up to 20A, at up to 600V. Do not use it as a self-contained socket on a 200A service; for that you need a conventional self-contained socket sized to the service.
2) Will a 13-jaw socket accept the meter my utility gave me?
13 jaws is the configuration for a three-phase, four-wire transformer rated meter, and that is what the Eaton USTS131A301CH is built for. A 4-jaw or 7-jaw self-contained meter will not land in it. Confirm with your utility that the meter they are setting is a 13-jaw transformer rated unit before you mount the can.
3) Does the Eaton instrument rated meter socket come with a test switch, or do I have to add one?
A test switch is already in the enclosure and factory wired. That means you can shunt the CT secondaries and test or swap the meter without opening the CT circuit, with no field wiring of the switch required.
4) Is the Eaton USTS131A301CH approved by Eversource in Connecticut?
Yes. The socket is listed as approved by Eversource in Connecticut, covering Connecticut Light and Power, Nstar, PSC New Hampshire, and Western Mass Electric. Catalog notes also show Iowa and Northeast approval. Utility acceptance lists change, so verify against your serving utility's current approved equipment list for the specific meter position.
5) What wall space do I need for the Eaton 13-jaw instrument meter socket?
Plan for an enclosure 20 in high, 12 in wide, and 4.36 in deep. At 27 lb it needs backing or masonry anchors, not drywall alone, and it is a two-hand lift to hold in position while you set the fasteners.
6) How many meters does the Eaton 13-jaw instrument socket hold? I have a multi-tenant building.
One. It is a single socket position, so each metered tenant needs its own enclosure and its own CT set. For a multi-unit building with several meters in one place you want a multi-position meter stack instead of individual instrument rated cans.
7) Can I use the Eaton USTS131A301CH on a 480V three-phase service?
The socket is rated 600V, so a 480Y/277V three-phase service is within its voltage rating. Because it is instrument rated, the service conductors do not pass through it, they pass through current transformers ahead of the meter.
