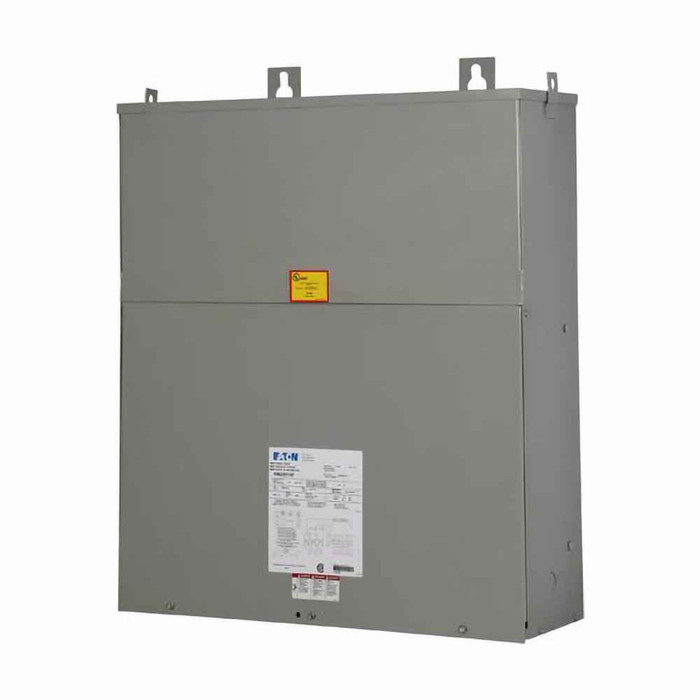

Eaton Mini-Power center, 15 kVA, 1PH, 600V to 120/240V, Bolt-on breakers, Copper Windings 30 spaces
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Coil Material:
- Copper
- Compliances:
- NAFTA
- Enclosure:
- NEMA 3R
- Frame:
- 310
- Frequency Rating:
- 60 Hz
- Insulation:
- 180 °C
- Kva:
- 15 kVA
- Kva Rating:
- 15 kVA
- Modification 1:
- NEMA 3R
- Mounting:
- Wall Mount
- Phase:
- Single-phase
- Primary Voltage:
- 600 V
- Product Height:
- 33 in
- Product Length Depth:
- 14.58 in
- Product Weight:
- 385 lb
- Product Width:
- 20.41 in
- Secondary Voltage:
- 120/240 V
- Sound Level:
- NEMA ST-20
- Tap Size:
- 2 at -5% FCBN
- Temperature Rise:
- 115 °C rise
- Type:
- Mini-power center
- Volt Ampere Rating:
- 15 kVA
- Weathershield:
- Not required
- Wiring Connection:
- M60G11HB
- Product Group:
- Electrical
