Eaton P48G28T15S6CUB mini-powe...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$51,044.69
$50,994.69

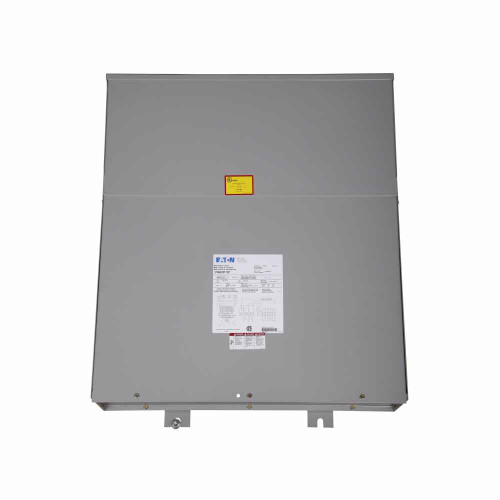

Eaton P48G28T15S6CUB mini-power center, mini-power center, three-phase, pv: 480v, taps: 2 at -5% fcbn, sv: 208y/120v, 115°c, 15 kva, cu windings, indoor-outdoor , frame: 289a.

Eaton P48G28T15S6CUB mini-power center, mini-power center, three-phase, pv: 480v, taps: 2 at -5% fcbn, sv: 208y/120v, 115°c, 15 kva, cu windings, indoor-outdoor , frame: 289a.

(No reviews yet) Write a Review

Model: P48G28T15S6CUB
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51,044.69
$50,994.69
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton mini-power center, Eaton mini-power center, three-phase, pv: 480v, taps: 2 at -5% fcbn, sv: 208y/120v, 115°c, 15 kva, cu windings, indoor-outdoor , frame: 289a.

Manufacturer Resources

Product Specs

Catalog Notes:
Grade 316 stainless steel enclosure, All copper construction (coil and interior) and accepts bolt-on branch breakers from the BAB family
Certifications:
UL Listed
Coil Material:
Copper
Compliances:
NEMA Compliant
Enclosure:
NEMA 3RX
Frame:
289A
Frequency Rating:
60 Hz
Phase:
Three-phase
Primary Voltage:
480 V
Product Height:
36.12 in
Product Length Depth:
9.38 in
Product Weight:
455 lb
Product Width:
28.75 in
Secondary Voltage:
208Y/120 V
Tap Size:
2 at -5% FCBN
Temperature Rise:
115 °C rise
Type:
Mini-power center
Volt Ampere Rating:
15 kVA
Weathershield:
Indoor-Outdoor
Wiring Connection:
105A15K
Product Group:
Electrical
!
