Eaton P48G11S25FCU Mini-Power ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$28,821.10
$28,771.10

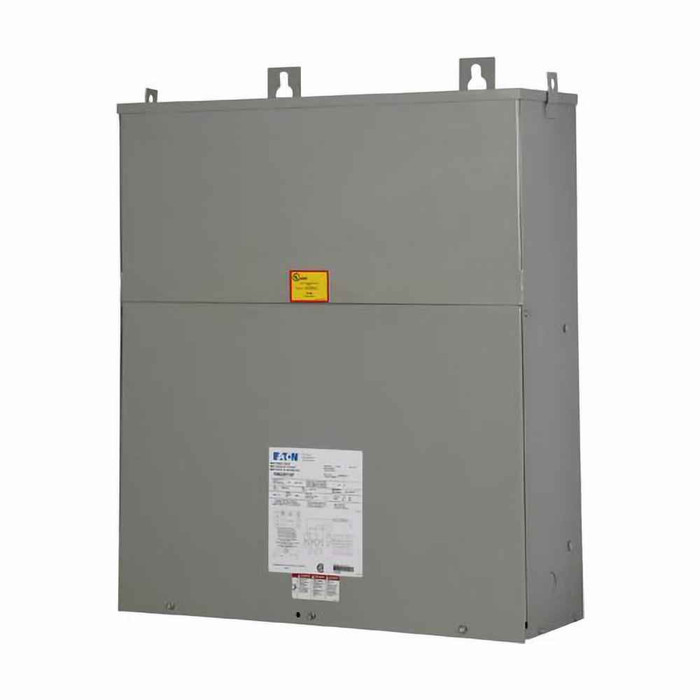

Eaton P48G11S25FCU Mini-Power Center, Single-phase, PV: 480V, Taps: 2 at -5% FCBN, SV: 120/240V, 115°C, 25 kVA, Cu windings , Frame: 287, Indoor-Outdoor

Eaton P48G11S25FCU Mini-Power Center, Single-phase, PV: 480V, Taps: 2 at -5% FCBN, SV: 120/240V, 115°C, 25 kVA, Cu windings , Frame: 287, Indoor-Outdoor

(No reviews yet) Write a Review

Model: P48G11S25FCU
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$28,821.10
$28,771.10
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton Mini-Power Center, Single-phase, PV: 480V, Taps: 2 at -5% FCBN, SV: 120/240V, 115°C, 25 kVA, Cu windings , Frame: 287, Indoor-Outdoor

Manufacturer Resources

Product Specs

Catalog Notes:
FD type primary breaker
Certifications:
IEEE Certified
Coil Material:
Copper
Compliances:
NEMA Compliant
Enclosure:
NEMA 3R
Frame:
287
Frequency Rating:
60 Hz
Phase:
Single-phase
Primary Voltage:
480 V
Product Height:
43.4 in
Product Length Depth:
14.5 in
Product Weight:
496 lb
Product Width:
15.9 in
Secondary Voltage:
120/240 V
Tap Size:
2 at -5% FCBN
Temperature Rise:
115 °C rise
Type:
Mini-power center
Volt Ampere Rating:
25 kVA
Weathershield:
Indoor-Outdoor
Wiring Connection:
106A25K
Product Group:
Electrical
!
