Eaton Direct (Close-Coupled) H...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$168.71

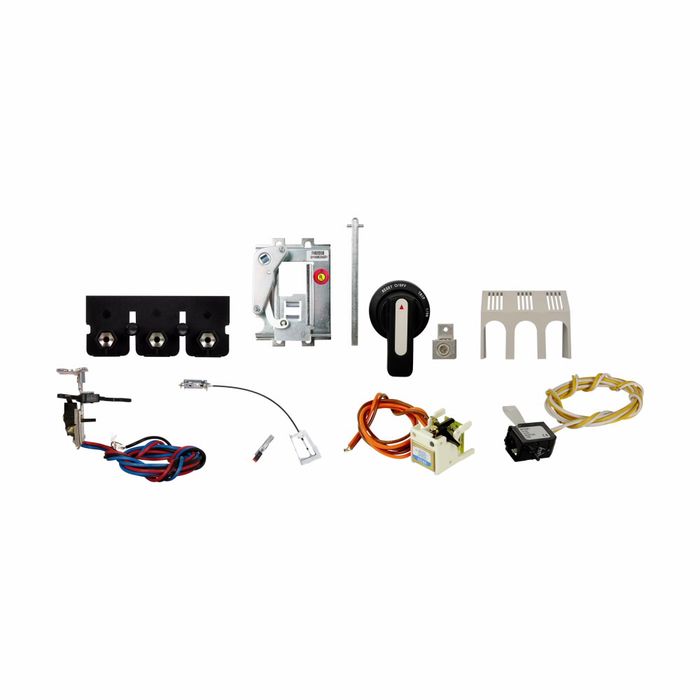

Eaton Direct (Close-Coupled) Handle Mechanism, Series C Circuit Breaker Accessory

Eaton Direct (Close-Coupled) Handle Mechanism, Series C Circuit Breaker Accessory

(No reviews yet) Write a Review

Model: HRGCC1S

In Stock (leaves warehouse same day if ordered before 3pm ET)

$168.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Direct (Close-Coupled) Handle Mechanism, Series C Circuit Breaker Accessory

The Eaton Direct (Close-Coupled) Handle Mechanism is a Series C circuit breaker accessory engineered for direct mounting to compatible molded case circuit breakers. Suitable for use on two- or three-pole G-Frame breakers and designed for use with GD- and GHC-Frame units, this handle mechanism ships with a black handle and a protective shroud, and is built to a compact 6 in W x 5 in D x 3 in H footprint for Frame J-K applications. It provides a reliable external operating handle for breakers installed in panelboards and switchgear.

Key Features

  • Compact Footprint: Measures 6 in wide x 5 in deep x 3 in high for straightforward integration into panelboard and switchgear enclosures.
  • Direct (Close-Coupled) Design: Mounts directly to the breaker for dependable, close-coupled handle operation.
  • Breaker Compatibility: Suitable for use on two- or three-pole G-Frame circuit breakers.
  • Frame Compatibility: Used with GD- and GHC-Frame breakers, Frame size J-K.
  • Series C Construction: Part of Eaton's Series C molded case circuit breaker accessory line.
  • Black Handle Finish: Durable black handle for clear visual operation status.
  • Includes Shroud: Supplied with a shroud accessory for added protection around the handle mechanism.

Technical Specifications

  • Product Width: 6 in
  • Product Length/Depth: 5 in
  • Product Height: 3 in
  • Series: Series C
  • Frame Size: Frame J-K
  • Used With: GD- and GHC-Frame
  • Handle Color: Black
  • Type: Direct (close-coupled) handle mechanism
  • Accessories: With shroud
  • Catalog Notes: Suitable for use on two- or three-pole G-Frame
  • Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.

Typical Applications

  • Molded Case Circuit Breaker Installations
  • G-Frame Breaker Panelboards and Switchgear
  • Commercial and Industrial Electrical Distribution Equipment
  • Breaker Accessory Upgrades and Retrofits

Why Eaton?

Eaton's Series C molded case circuit breaker accessories are engineered for dependable, close-coupled operation on compatible G-Frame breakers. Built to defined dimensional and frame-compatibility specifications and backed by Eaton's Selling Policy 25-000 warranty, this handle mechanism delivers the consistent, code-compliant performance electrical professionals expect. Choose Eaton for circuit breaker accessories built to integrate reliably into your panelboard and switchgear installations.

Manufacturer Resources

Product Specs

Product Width:
6 in
Catalog Notes:
Suitable for use on two- or three-pole G-Frame.
Used with:
GD- and GHC-Frame
Handle color:
Black
Series:
Series C
Product Length/Depth:
5 in
Frame size:
Frame J-K
Compliances:
Contact Manufacturer
Product Height:
3 in
Product Type:
Circuit Breaker Handle Mechanism
Accessories:
With shroud
Department:
Electrical
Product Color:
Black
Configuration:
With Shroud
Product Group:
Circuit Protection
Product Subgroup:
Circuit Breakers

Eaton HRGCC1S – Frequently Asked Questions

1) Will the Eaton HRGCC1S handle mechanism work on a G-Frame breaker?
Yes. The HRGCC1S direct (close-coupled) handle mechanism is suitable for use on two- or three-pole G-Frame breakers, and is used with GD- and GHC-Frame units in the Frame J-K size. If your breaker is a single-pole G-Frame or a different frame class entirely, this is not the right operating handle.
2) How much room do I need inside the panelboard enclosure for the Eaton HRGCC1S handle mechanism?
Plan on a 6 in wide x 5 in deep x 3 in high envelope for the mechanism itself. That is the space it occupies once close-coupled to the breaker, so check your gutter and door clearance in tight panelboard or switchgear enclosures before you commit.
3) Can I add the Eaton HRGCC1S handle to breakers already installed in an existing panelboard?
Yes, provided the installed breakers are two- or three-pole G-Frame units in the GD- or GHC-Frame, Frame J-K range. The mechanism is a Series C accessory intended for direct mounting to the breaker, which is exactly how retrofit and accessory upgrade work is done on existing molded case installations. Verify the frame designation on the breaker label rather than going by ampere rating alone, since frame class is what governs fit.
4) What is the difference between a direct close-coupled handle mechanism and a cable or rotary operator for a molded case breaker?
A direct (close-coupled) mechanism like the Eaton HRGCC1S mounts straight onto the breaker, so the handle sits immediately over the breaker position. There is no flexible cable or extension shaft between the handle and the breaker, which keeps the assembly compact but means the handle location is fixed by where the breaker sits. If you need the operating handle somewhere other than directly in front of the breaker, or on a remote door, a close-coupled mechanism is the wrong choice and you want a cable-operated or through-the-door remote operator instead.
5) Does the Eaton HRGCC1S come with the shroud, or do I order that separately?
The shroud is included. The HRGCC1S ships in the with-shroud configuration, so you get the handle mechanism plus the protective shroud around it in one part number. No separate shroud order is needed.
6) What exact part number do I order for the Eaton Series C direct handle mechanism with shroud?
Order Eaton HRGCC1S. That single part number covers the direct (close-coupled) handle mechanism with black handle and shroud for Frame J-K, GD- and GHC-Frame breakers. There are no finish or size options to specify with it.
7) What color is the handle on the Eaton Series C HRGCC1S operating mechanism?
Black. Both the handle and the mechanism body are black, which is the standard non-emergency color for a breaker operator. If your facility standard calls for a red handle on a yellow plate for emergency disconnect duty, this part will not satisfy that marking requirement.
