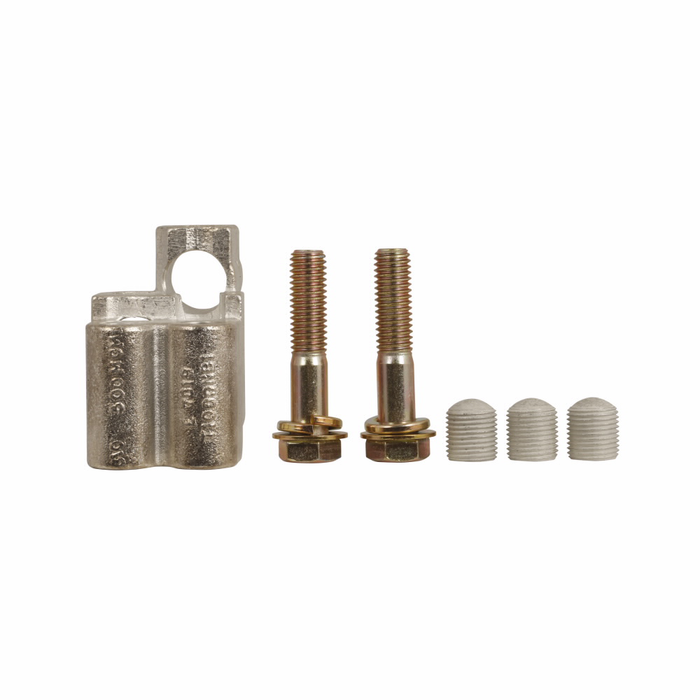

Eaton Series G Molded Case Circuit Breaker Line and Load Terminal, Copper/Cu-Al Pressure Type
The Eaton Series G line and load terminal is a molded case circuit breaker accessory designed for use with N-frame breakers in Frame J-K sizes. Rated for 1000A, this terminal accessory features optional copper and Cu/Al pressure type terminals accommodating wire sizes of (3) #3/0 AWG-500 kcmil, making it suitable for demanding commercial and industrial power distribution applications where reliable, code-compliant terminations are required.
Key Features
- Frame Compatibility: Engineered for use with Eaton N-frame, Series G molded case circuit breakers in Frame J-K sizes.
- Amperage Rating: Rated 1000 A for high-capacity circuit breaker terminal connections.
- Terminal Type: Optional copper and Cu/Al pressure type terminals provide flexible conductor termination options.
- Wire Size Capacity: Accepts (3) #3/0 AWG-500 kcmil conductors per terminal for large-conductor installations.
- Compact Dimensions: Product Width 2.4 in, Product Length/Depth 3.2 in, Product Height 4.6 in for straightforward integration into existing breaker enclosures.
- Series G Design: Part of Eaton's established Series G molded case circuit breaker platform, built for durable, long-service power distribution.
Technical Specifications
- Used With: N-frame
- Series: Series G
- Frame Size: Frame J-K
- Amperage Rating: 1000 A
- Type: Optional copper and Cu/Al pressure type terminals
- Wire Size: (3) #3/0 AWG-500 kcmil
- Product Width: 2.4 in
- Product Length/Depth: 3.2 in
- Product Height: 4.6 in
- Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Typical Applications
- Commercial and Industrial Electrical Distribution Panels
- Molded Case Circuit Breaker Retrofits and Upgrades
- Large-Conductor Power Feeder Terminations
- Switchgear and Switchboard Circuit Breaker Assemblies
- Panelboard and Load Center Wiring for High-Amperage Circuits
Why Eaton?
Eaton's Series G molded case circuit breaker accessories are engineered to deliver dependable, high-capacity terminations for demanding power distribution systems. With a 1000 A rating, flexible copper and Cu/Al pressure type terminal options, and support for large-conductor wire sizes up to 500 kcmil, this line and load terminal helps electrical professionals maintain reliable, code-compliant connections on N-frame breaker installations. Backed by Eaton's Selling Policy 25-000 warranty, it's built for long-term performance in commercial and industrial environments.
Manufacturer Resources
Product Specs
- Product Width:
- 2.4 in
- Used with:
- N-frame
- Amperage Rating:
- 1000A
- Series:
- Series G
- Product Length/Depth:
- 3.2 in
- Frame size:
- Frame J-K
- Compliances:
- Contact Manufacturer
- Product Height:
- 4.6 in
- Product Type:
- Line and Load Terminal
- Product Size:
- (3) #3/0 AWG-500 kcmil
- Department:
- Electrical
- Connection Type:
- Pressure Type
- Product Group:
- Wiring Devices
