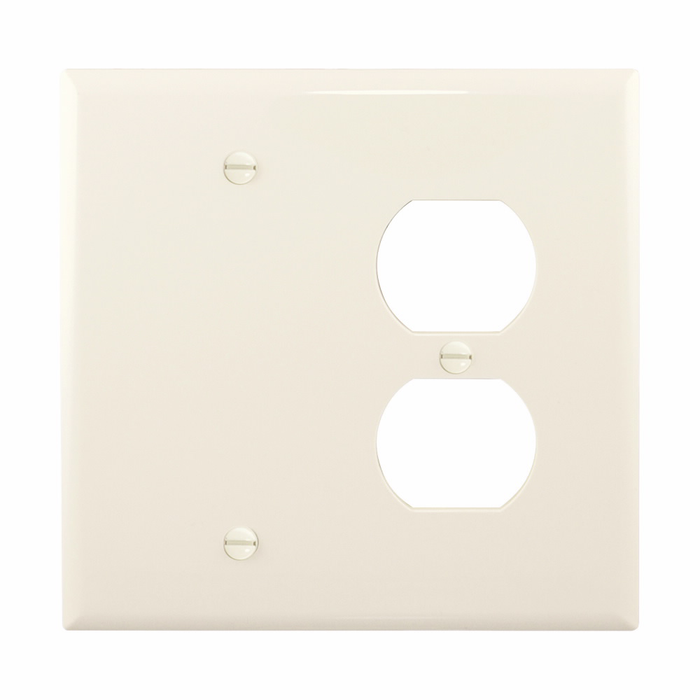

Eaton Polycarbonate Combination Wallplate, Duplex Receptacle/Blank

Eaton Polycarbonate Combination Wallplate, Duplex Receptacle/Blank

(No reviews yet) Write a Review

Model: PJ138LA

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1.34
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Polycarbonate Combination Wallplate, Duplex Receptacle & Blank Cutout, Two-Gang Mid-Size

The Eaton Polycarbonate Combination Wallplate pairs a duplex receptacle opening with a blank cutout on a single two-gang, mid-size plate. Molded from durable polycarbonate and cULus Listed, this wallplate measures 4.94 in wide by 4.87 in high with a slim .08 in depth, giving installers a clean, code-compliant cover for mixed device layouts in commercial and residential electrical work. It is designed to sit flush over a standard two-gang mid-size electrical box, keeping the duplex receptacle and adjacent blank opening neatly finished in a single plate.

Key Features

  • Combination Cutout: Duplex receptacle and blank cutout combined on one plate for mixed-device wall openings.
  • Two-Gang, Mid-Size: Sized for two-gang mid-size electrical boxes, keeping devices aligned and properly covered.
  • Dimensions: 4.94 in product width, 4.87 in product height, and a slim .08 in product depth for a low-profile fit.
  • Durable Construction: Molded Polycarbonate resists cracking and impact better than standard plastics, holding up in daily-use environments.
  • Number of Gangs: 2-gang configuration accommodates a duplex receptacle opening alongside a blank cutout.
  • Compliance-Ready: cULus Listed and RoHS Compliant construction supports code-compliant specification on commercial and residential jobs.

Certifications & Compliance

  • cULus Listed
  • RoHS Compliant

Technical Specifications

  • Product Width: 4.94 in
  • Product Length/Depth: .08 in
  • Product Height: 4.87 in
  • Wallplate size: Mid-size
  • Material: Polycarbonate
  • Cutout: Duplex receptacle, Blank
  • Number of gangs: 2
  • Certifications: cULus Listed
  • Compliances: RoHS Compliant
  • Warranty: Refer to warranty document.

Typical Applications

  • Combination Device Wall Coverage in Offices and Homes
  • Duplex Receptacle and Blank Cutout Combinations
  • Commercial and Residential Electrical Installations
  • Renovation and New Construction Wiring Projects
  • Mid-Size Two-Gang Electrical Box Applications
  • Facility Maintenance and Device Cover Replacement

Why Eaton?

Eaton builds this combination wallplate from durable Polycarbonate and backs it with cULus Listing and RoHS Compliance, so electrical contractors and facility teams get a reliable, code-compliant cover for combined duplex receptacle and blank device openings. The two-gang mid-size format and precise 4.94 in x 4.87 in x .08 in dimensions make it a straightforward, professional-grade solution for finishing two-gang mid-size electrical box installations.

Variant Specifications

ColorModelSKU
Light AlmondPJ138LAPJ138LA
White/Brown/IvoryStandardPJ138W

Manufacturer Resources

Product Specs

Product Height:
4.87 in
Listing:
cULus
Department:
Electrical
Wallplate Size:
Mid-size
Compliances:
RoHS Compliant
Product Type:
Combination Wallplate
Certifications:
cULus Listed
Cutout:
Duplex receptacle, Blank
Product Width:
4.94 in
Product Material:
Polycarbonate
Warranty:
Refer to warranty document.
Special Features:
Duplex receptacle and blank
Standards:
RoHS Compliant
Product Length/Depth:
.08 in
Number Of Gangs:
2
Product Group:
Wiring Devices
Product Subgroup:
Wallplates

Eaton PJ138LA – Frequently Asked Questions

1) Will the Eaton PJ138 wallplate cover a two-gang box where only one side has a receptacle?
That is exactly what it is built for. The PJ138 is a two-gang plate with one duplex receptacle cutout and one blank side, so it finishes an opening where a device sits in one gang and the other position is empty or holds a junction you want closed off. No separate blank plate needed.
2) What does "mid-size" mean on the Eaton PJ138 wallplate, and will it cover oversized drywall cuts?
Mid-size (sometimes called junior jumbo) sits between a standard plate and a full oversize plate. The PJ138 measures 4.94 x 4.87 x .08 inches, so it gives you extra coverage around a rough drywall cut on a two-gang box that a standard plate would leave showing, without the bulk of a full jumbo plate.
3) Polycarbonate or steel for a two-gang combination plate in a high-traffic corridor?
The Eaton PJ138 is molded polycarbonate, which takes impact without cracking and will not corrode or need touch-up paint. If your spec calls for metal instead, the Mulberry 76432 (764 Series) and Mulberry 76532 (765 Series) are cold rolled steel two-gang combination plates in white. Polycarbonate is the usual choice where you want a color match to devices; steel is chosen where a job spec mandates metal covers.
4) What colors does the Eaton PJ138 come in?
Two order options: PJ138LA in light almond, and PJ138W, catalogued as the white/brown/ivory option. Pick the one that matches the receptacle and the other plates on the wall, since a mid-size plate sitting next to standard plates already reads differently.
5) I need a plain two-gang combination plate but with a toggle switch opening instead of a blank. What else is there?
The Eaton PJ138 pairs a duplex opening with a blank, so it will not work over a toggle switch. For a two-gang combination in nylon, look at the Pass & Seymour TradeMaster two-gang combination wallplate. If a single-gang duplex cover is all you need, the Bryant P8 Series 1-gang duplex plate covers that.
6) Does the Bryant PJ series wallplate match the Eaton PJ138W?
They share the PJ designation and the mid-size format - the Bryant PJ series is an M-size wallplate for wiring devices, and the Eaton PJ138W is mid-size. But the PJ series is a family covering multiple device cutouts, so confirm the specific cutout before substituting for the Eaton's duplex-plus-blank configuration.
7) Can I use a toggle switch plate in place of the Eaton PJ138W?
No. Toggle plates such as the Pass & Seymour SPJ junior-jumbo thermoset plate, the TradeMaster TP1LA in light almond, or the Mulberry 86401 steel one-gang plate all serve switch openings, not a duplex receptacle paired with a blank. The PJ138W's cutout is duplex receptacle and blank on a two-gang plate.
8) Will a mid-size plate like the Eaton PJ138 stick out on the wall?
Barely. Depth is .08 inches, so it sits nearly flush against the drywall. The extra size is in the face dimensions, not the projection.
9) We standardize wallplates across a portfolio. Is there a matching mid-size line for single-gang openings?
The Eaton PJ138 is part of the PJ mid-size family. Bryant also lists a PJ Series mid-size wallplate line for wiring devices, and Pass & Seymour's SPJ Series is a junior-jumbo thermoset plate with a toggle opening. Any of those keep a consistent oversize look across mixed device types in a building.
