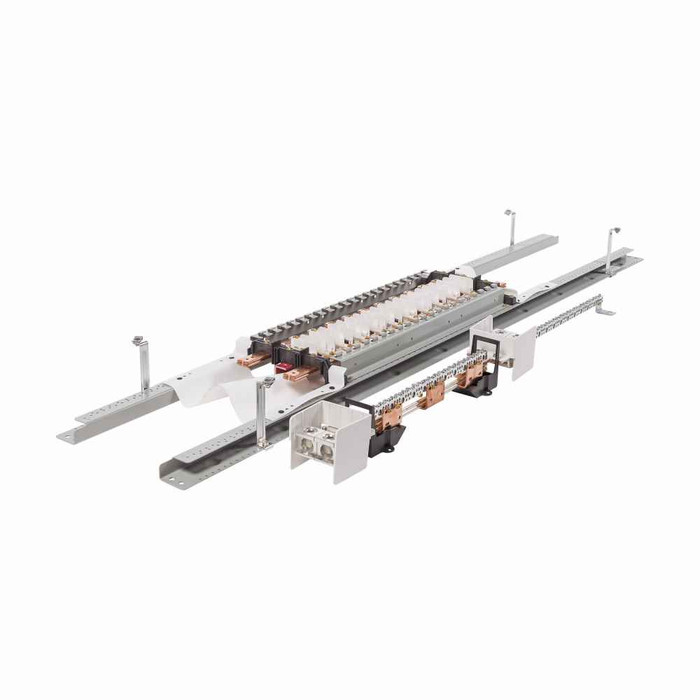

Eaton Pow-R-Xpress PRL1X Interior Panelboard 400A 120/240V 1PH 42 Circuit Copper Bus

Eaton Pow-R-Xpress PRL1X Interior Panelboard 400A 120/240V 1PH 42 Circuit Copper Bus

Professional Interior Electrical Distribution for Residential and Commercial Applications

The Eaton Pow-R-Xpress PRL1X Interior Panelboard delivers reliable electrical distribution with 400A service rating and 120/240V single-phase configuration. This professional-grade panelboard features copper bus construction for superior conductivity and accommodates 42 circuits in a compact interior-rated enclosure measuring 61" x 15" x 6".

Professional Features & Benefits

• 400A Service Rating: Provides substantial electrical capacity for demanding residential and commercial applications requiring high amperage distribution.
• 42 Circuit Capacity: Accommodates extensive branch circuit requirements with professional organization and accessibility for installation and maintenance.
• Copper Bus Construction: Delivers superior electrical conductivity and long-term reliability compared to aluminum alternatives, ensuring consistent performance.
• 120/240V Single-Phase: Compatible with standard residential and light commercial electrical systems for versatile installation applications.
• UL 67 Listed: Meets rigorous safety and performance standards for panelboard applications, ensuring code compliance and professional installation confidence.
• Compact Interior Design: Space-efficient 61" x 15" x 6" dimensions optimize installation flexibility while maintaining full 400A capacity and 42-circuit accommodation.

Technical Specifications

• Amperage Rating: 400A
• Bus Material: Copper
• Certifications: UL 67
• Department: Electrical
• Number Of Circuits: 42
• Product Details: PRL1X INTERIOR
• Product Group: Electrical
• Product Height: 6 in
• Product Length Depth: 61 in
• Product Weight: 50 lb
• Product Width: 15 in

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Main Distribution Panels
• Commercial Building Electrical Distribution
• Multi-Unit Residential Properties
• Professional Office Buildings
• Retail and Light Commercial Facilities
• Educational and Institutional Buildings
• Service and Maintenance Facilities

Why Choose Eaton Quality?

Eaton Pow-R-Xpress panelboards combine proven reliability with professional-grade construction. UL 67 listing ensures code compliance and safety standards, while the copper bus design provides long-term performance and conductivity. The compact 50 lb design facilitates professional installation while delivering full 400A capacity for demanding electrical distribution requirements.
