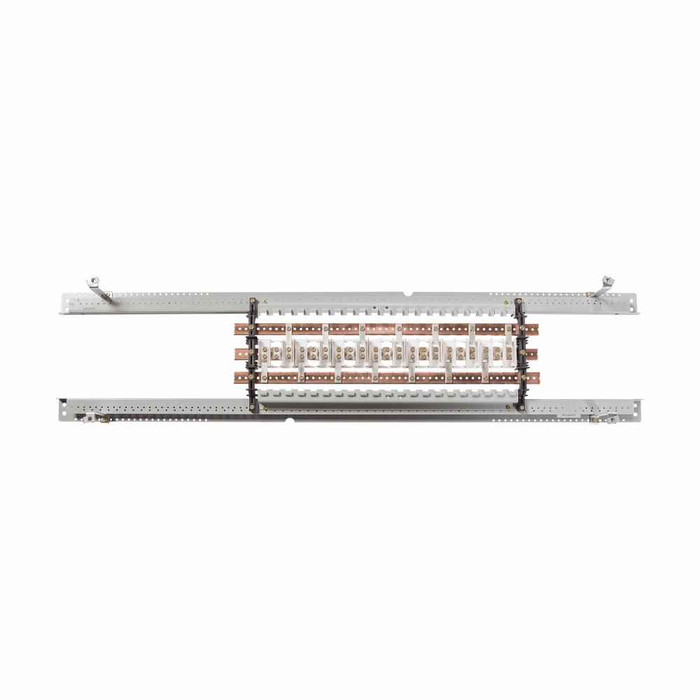

Eaton Pow-R-Xpress PRL2X Interior Panelboard 600A 480Y/277V 3PH 42 Circuit Copper Bus

Eaton Pow-R-Xpress PRL2X Interior Panelboard 600A 480Y/277V 3PH 42 Circuit Copper Bus

Professional electrical distribution for commercial and industrial applications

The Eaton Pow-R-Xpress PRL2X Interior Panelboard delivers reliable 600A electrical distribution with 480Y/277V 3-phase 4-wire configuration and 42 circuit capacity. Featuring copper bus construction and UL 67 certification, this interior panelboard provides professional-grade power distribution for demanding commercial and industrial environments with proven Eaton quality and engineering.

Professional Features & Benefits

• 600A Amperage Rating: High-capacity power distribution suitable for demanding commercial and industrial electrical loads with reliable performance.
• 480Y/277V 3PH 4W Configuration: Standard commercial voltage system providing versatile power distribution for lighting, HVAC, and equipment applications.
• 42 Circuit Capacity: Extensive circuit availability enables comprehensive electrical distribution and load management for complex facilities.
• Copper Bus Construction: Superior conductivity and corrosion resistance ensures long-term reliability and optimal electrical performance.
• UL 67 Certification: Meets rigorous safety and performance standards for panelboard applications, ensuring code compliance and professional installation.
• Interior Design: Engineered for protected indoor environments with appropriate enclosure specifications for reliable operation.
• Compact Dimensions: 61" x 15" x 6" profile optimizes installation space while providing full 600A capacity and 42 circuit positions.

Technical Specifications

• Amperage Rating: 600A
• Bus Material: Copper
• Certifications: UL 67
• Department: Electrical
• Number Of Circuits: 42
• Product Details: PRL2X INTERIOR
• Product Group: Electrical
• Product Height: 6 in
• Product Length Depth: 61 in
• Product Weight: 123 lb
• Product Width: 15 in

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Office Buildings
• Industrial Manufacturing Facilities
• Retail and Shopping Centers
• Healthcare and Medical Facilities
• Educational Institutions
• Multi-Tenant Commercial Properties
• Data Centers and Technology Facilities

Why Choose Eaton Quality?

Eaton Pow-R-Xpress panelboards combine proven engineering with UL 67 certification and copper bus construction for long-term reliability. The 123 lb robust construction and professional interior design ensure dependable performance in demanding commercial and industrial electrical distribution applications.
