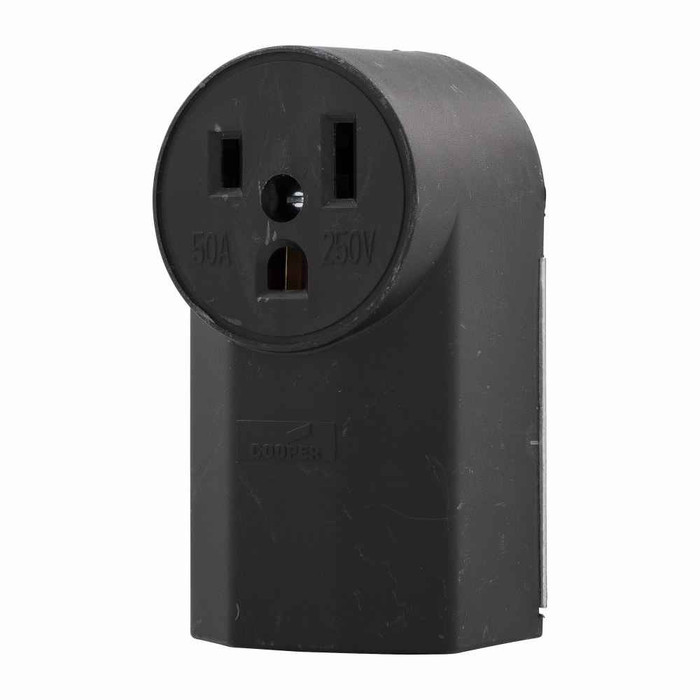

Eaton NEMA 6-50R Power Device Receptacle 50A 250V Surface Mount Black
Heavy-Duty Power Connection Solution for Professional Applications
The Eaton NEMA 6-50R Power Device Receptacle delivers reliable 50A, 250V power distribution with professional-grade glass-filled nylon construction. This surface-mount receptacle features two-pole, three-wire grounding configuration with back and bottom wiring methods for versatile installation options. UL Listed for safety and RoHS compliant for environmental standards.
Professional Features & Benefits
- 50A Rating: Handles high-amperage loads for demanding power applications with reliable performance.
- NEMA 6-50R Configuration: Standard two-pole, three-wire grounding design ensures proper electrical safety and compatibility.
- Glass-Filled Nylon Construction: Durable material provides excellent strength, heat resistance, and long-term reliability.
- Surface Mount Design: Convenient installation method allows for flexible placement and easy access.
- Back and Bottom Wiring: Multiple wiring entry points provide installation flexibility for various applications.
- UL Listed Certification: Meets rigorous safety standards for professional electrical installations.
- 250V Rating: Suitable for high-voltage applications requiring robust power distribution.
Technical Specifications
- Allowable Wire Size: #12-4 AWG
- Amperage Rating: 50 A
- Certifications: UL Listed
- Color: Black
- Compliances: RoHS Compliant
- Department: Electrical
- Design Type: Receptacle
- Material: Glass filled nylon
- Mounting Method: Surface
- Nema Configuration: 6-50R
- Number Of Poles: Two-pole
- Number Of Wires: 3
- Product Group: Electrical
- Product Height: 9 in
- Product Length Depth: 2.25 in
- Product Weight: .685 lb
- Product Width: 5 in
- Receptacle Type: Two-pole, three-wire, grounding
- Style: Power
- Voltage Rating: 250 V
- Wiring Method: Back and bottom
Installation & Operation
- Mount the unit in a suitable location with appropriate clearance and access for connections and service.
- Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
- Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
- Configure any available load management or control features as supported by the provided specifications.
- Test automatic transfer or operational functionality and verify proper performance before placing into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to the product category.
Professional Applications
- Industrial Equipment Power Distribution
- Commercial Kitchen Appliances
- Workshop and Manufacturing Tools
- HVAC System Connections
- Welding Equipment Power Supply
- Heavy-Duty Machinery Connections
- Professional Service Applications
Why Choose Eaton Quality?
Eaton delivers proven reliability with UL Listed certification and RoHS compliant construction. The glass-filled nylon material and robust 50A rating ensure dependable performance in demanding professional environments, backed by Eaton's commitment to electrical safety and durability.
Manufacturer Resources
Product Specs
- Allowable Wire Size:
- #12-4 AWG
- Amperage Rating:
- 50 A
- Certifications:
- UL Listed
- Compliances:
- RoHS Compliant
- Design Type:
- Receptacle
- Mounting Method:
- Surface
- Nema Configuration:
- 6-50R
- Number Of Poles:
- Two-pole
- Number Of Wires:
- 3
- Product Height:
- 9 in
- Product Length Depth:
- 2.25 in
- Product Weight:
- .685 lb
- Product Width:
- 5 in
- Receptacle Type:
- Two-pole, three-wire, grounding
- Voltage Rating:
- 250 V
- Wiring Method:
- Back and bottom
- Product Group:
- Electrical
- Department:
- Electrical
- Product Color:
- Black
- Product Style:
- Power
- Product Material:
- Glass filled nylon
