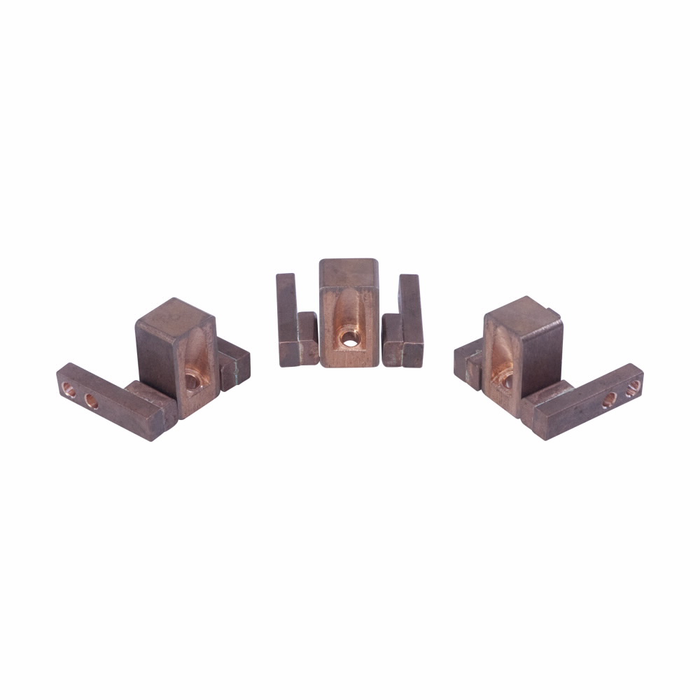

Eaton Pringle Arcing Parts Kit, 1600A, Top Feed, Manually Operated
The Eaton Pringle Arcing Parts Kit is a replacement components set engineered for Eaton Pringle bolted-contact switches, rated 1600A and 480V for heavy-duty industrial and commercial power distribution. Configured for top feed installations and manually operated, electrical trip switching, this arcing parts kit restores critical switching contact performance in existing Pringle switch assemblies. It is compatible with NEMA 1, 3R, 4, and 12 enclosure types and carries UL Listed certification, making it a dependable choice for maintaining code-compliant, reliable disconnect switch operation in facilities that rely on Pringle switch technology for safe power isolation.
Key Features
- Amperage Rating: 1600A, suited for high-capacity Pringle bolted-contact switch applications.
- Voltage Rating: 480V for industrial and commercial power distribution systems.
- Feed Type: Top feed configuration for compatible switch enclosure layouts.
- Switch Type: Manually operated, electrical trip mechanism for controlled disconnect operation.
- Component Type: Arcing parts replacement kit designed to restore switching contact performance during maintenance or overhaul.
- Compact Dimensions: Product width .5 in, length/depth 1.75 in, and height 2 in for precise fit within Pringle switch housings.
- NEMA Rating: NEMA 1, 3R, 4, and 12 enclosure compatibility for indoor and outdoor installations.
Certifications & Compliance
- UL Listed
- NEMA 1, 3R, 4, 12 Rated Enclosure Compatibility
Technical Specifications
- Feed type: Top
- Catalog Notes: 100
- Voltage Rating: 480V
- Product Type: Electrical Component
Typical Applications
- Pringle Bolted-Contact Switch Maintenance and Repair
- Industrial Power Distribution Equipment
- Panelboard and Switchboard Servicing
- Manual Disconnect Switch Upgrades and Rebuilds
- Commercial and Industrial Electrical Systems
- Facility Power Isolation and Safety Switching
Why Eaton?
Eaton engineers its Pringle switch replacement components, including this arcing parts kit, to restore original switching performance with UL Listed reliability. Built to support manually operated, electrical trip switching at 1600A and 480V, this kit helps electrical professionals maintain code-compliant, dependable disconnect switch operation across NEMA 1, 3R, 4, and 12 rated enclosures, reducing downtime during Pringle switch maintenance and overhaul work.
Manufacturer Resources
Product Specs
- Feed type:
- Top
- Product Width:
- .5 in
- Catalog Notes:
- 100
- Voltage Rating:
- 480V
- Amperage Rating:
- 1600A
- Switch Classification:
- Manually operated, electrical trip
- Product Length/Depth:
- 1.75 in
- Product Height:
- 2 in
- Product Type:
- Arcing Parts
- NEMA rating:
- NEMA 1, NEMA 3R, NEMA 4, NEMA 12
- Certifications:
- UL Listed
- Department:
- Electrical
- Configuration:
- Manually Operated, Electrical Trip
- Listing:
- UL Listed
- Standards:
- NEMA 1/3R/4/12
- Product Group:
- Wiring Devices
