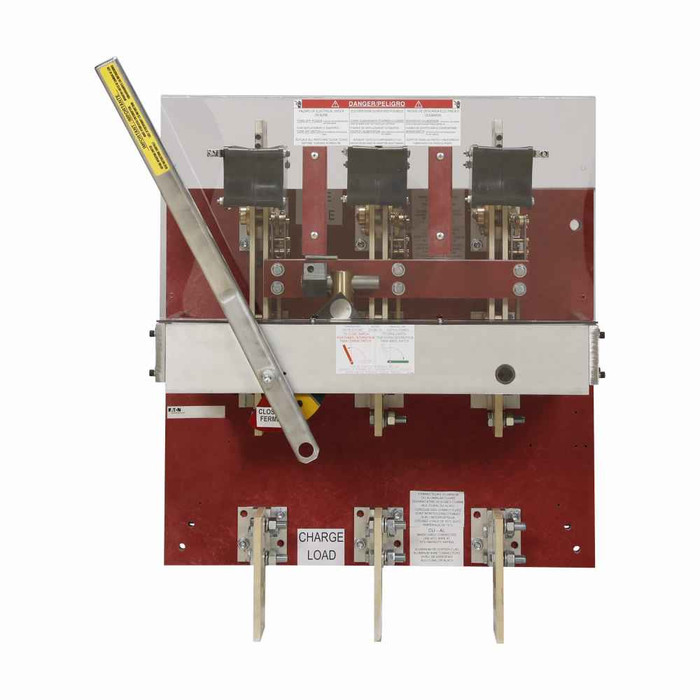

Eaton pringle bolted pressure switch, Interlock, Manual bolted pressure contact switch, 2500A, 2NO-2NC, Non-fusible, 480V, NEMA 1/3R/4/12, Three-pole, Three-wire
Manufacturer Resources
Product Specs
- Amperage Rating:
- 2500A
- Catalog Notes:
- For QA switches, use 480V system catalog number when referencing a 208V system. Voltage Control, Ground Fault, Phase Failure Relay, and Control Power Transformer not an option for QA Type Switches.
- Certifications:
- UL Listed
- Contact Configuration:
- 2 NO-2 NC
- Fuse Configuration:
- Non-fusible
- Interlock:
- Key interlock provision
- Nema Rating:
- NEMA 1, NEMA 3R, NEMA 4, NEMA 12
- Number Of Poles:
- Three-pole
- Number Of Wires:
- 3
- Product Height:
- 18.5 in
- Product Length Depth:
- 14.5 in
- Product Weight:
- 133 lb
- Product Width:
- 28 in
- Protection:
- Non-fusible
- Special Features:
- Interlock
- Switch Type:
- Manually operated contact switch
- Type:
- Manual bolted pressure contact switch
- Voltage Max:
- 480 V
- Voltage Rating:
- 480 V
