Eaton QA3033N480K7 pringle bol...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$15,340.33
$15,290.33

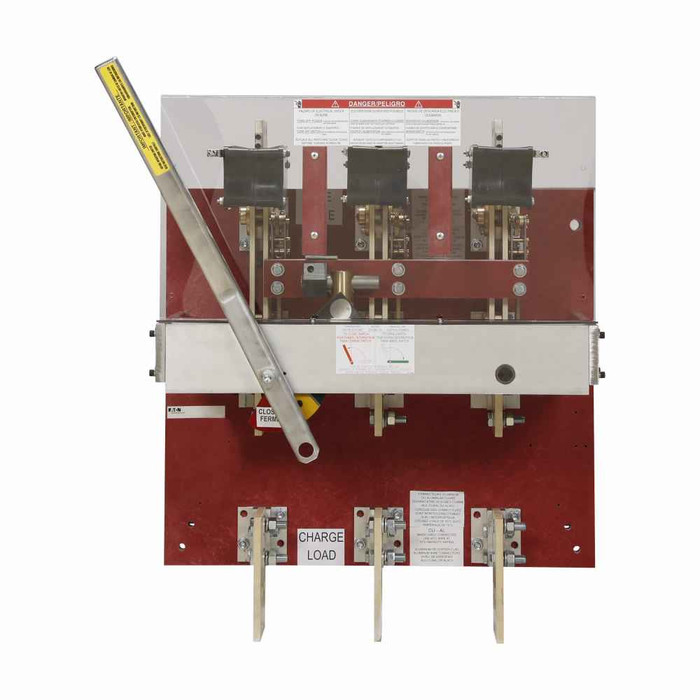

Eaton QA3033N480K7 pringle bolted pressure switch, Interlock, Manual bolted pressure contact switch, 3000A, 2NO-2NC, Non-fusible, 480V, NEMA 1/3R/4/12, Three-pole, Three-wire

Eaton QA3033N480K7 pringle bolted pressure switch, Interlock, Manual bolted pressure contact switch, 3000A, 2NO-2NC, Non-fusible, 480V, NEMA 1/3R/4/12, Three-pole, Three-wire

(No reviews yet) Write a Review

Model: QA3033N480K7
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$15,340.33
$15,290.33
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton pringle bolted pressure switch, Interlock, Manual bolted pressure contact switch, 3000A, 2NO-2NC, Non-fusible, 480V, NEMA 1/3R/4/12, Three-pole, Three-wire

Manufacturer Resources

Product Specs

Amperage Rating:
3000A
Catalog Notes:
For QA switches, use 480V system catalog number when referencing a 208V system. Voltage Control, Ground Fault, Phase Failure Relay, and Control Power Transformer not an option for QA Type Switches.
Certifications:
UL Listed
Contact Configuration:
2 NO-2 NC
Fuse Configuration:
Non-fusible
Interlock:
Key interlock provision
Nema Rating:
NEMA 1, NEMA 3R, NEMA 4, NEMA 12
Number Of Poles:
Three-pole
Number Of Wires:
3
Product Height:
18.5 in
Product Length Depth:
13.5 in
Product Weight:
236 lb
Product Width:
40 in
Protection:
Non-fusible
Special Features:
Interlock
Switch Type:
Manually operated contact switch
Type:
Manual bolted pressure contact switch
Voltage Max:
480 V
Voltage Rating:
480 V
Product Group:
Electrical
!
