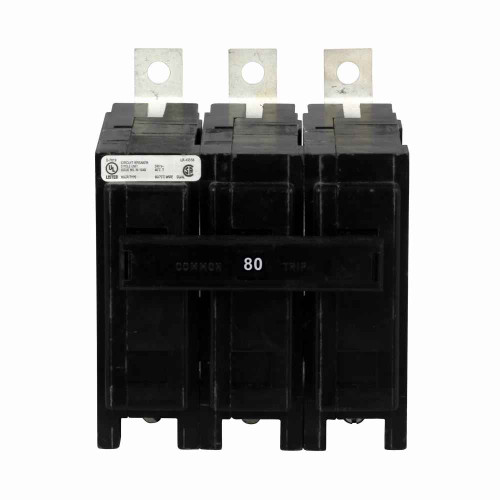

Eaton Quicklag Industrial Thermal-Magnetic Circuit Breaker - Three-Pole 80A 22 kAIC 240V Bolt-On
Professional Industrial Circuit Protection with HACR Rating
The Eaton Quicklag Industrial Thermal-Magnetic Circuit Breaker delivers reliable three-pole circuit protection with 80A capacity and 22 kAIC interrupt rating at 240V. This HACR rated bolt-on circuit breaker features non-interchangeable trip characteristics and UL Listed certification, providing professional-grade electrical protection for industrial applications requiring dependable overcurrent protection.
Professional Features & Benefits
- 80A Amperage Rating: Provides substantial current capacity for high-demand industrial circuits and equipment protection.
- 22 kAIC Interrupt Rating: Delivers robust fault current interruption capability for enhanced system safety and reliability.
- Three-Pole Configuration: Ensures comprehensive protection across all three phases for balanced load management and system integrity.
- 240V Voltage Rating: Optimized for standard industrial voltage applications with reliable performance characteristics.
- HACR Rated: Certified for heating, air conditioning, and refrigeration applications, ensuring compatibility with motor loads.
- UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations.
- Bolt-On Mounting: Provides secure mechanical connection and reliable electrical contact for permanent installations.
Technical Specifications
- Amperage Rating: 80 A
- Catalog Notes: HACR rated
- Certifications: UL Listed
- Circuit Breaker Type: QBHW
- Department: Electrical
- Interrupt Rating: 22 kAIC
- Mounting Method: Bolt-on
- Number Of Poles: Three-pole
- Product Group: Electrical
- Product Height: 4.9 in
- Product Length Depth: 3.8 in
- Product Subgroup: Circuit Breaker
- Product Type: Thermal Magnetic Circuit Breaker
- Product Weight: 1.2 lb
- Product Width: 3.2 in
- Quantity: 32
- Trip Type: Non-Interchangeable
- Voltage Rating: 240 V - 240 V
Installation & Operation
- Mount the unit in a suitable location with appropriate clearance and access for connections and service.
- Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
- Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
- Configure any available load management or control features as supported by the provided specifications.
- Test automatic transfer or operational functionality and verify proper performance before placing into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to the product category.
Professional Applications
- Industrial Manufacturing Facilities
- Commercial HVAC Systems
- Motor Control Centers
- Distribution Panels
- Process Equipment Protection
- Refrigeration Systems
- Heavy Machinery Circuits
Why Choose Eaton Quality?
Eaton Quicklag circuit breakers provide dependable thermal-magnetic protection with UL Listed certification and HACR rating for professional electrical installations. The compact 4.9" x 3.8" x 3.2" design and lightweight 1.2 lb construction ensure efficient panel space utilization while delivering robust circuit protection performance.
